Description
The RC10SC6.4 shares key components with the RC10T6.4, RC10B6.4, and RC10B74.2 Team Kits, making it easier than ever to run multiple classes at the same time. Suspension and jumping goes through the large-volume 13mm big bore shocks with new truck springs. The new chassis design is a short course truck version of the RC10B6.4 buggy design and gets a new ballstud mount and top plate system with an angled steering for improved consistency. On top of that, racers can tune the steering height, axle trail, and caster inserts for tuning the front end feel. The rear end grip is improved with the optional C and D mounts and 92.5mm CVA bones included in the kit. Suspension linkage rides on the new 3.5mm diameter rod ends and turnbuckles.
The RC10SC6.4 is updated to the latest racing specs to give racers an edge over the competition.
New features for RC10SC6.4:
-New 13mm big bore threaded aluminum shocks and springs with machined shock pistons for improved bump and jump handling.
-13mm machined shock pistons, 2x1.6mm front and 2x1.8mm rear.
-New front ballstud mount and top plate with angled steering system for improved steering consistency
-New 3.5mm heavy-duty ball cups and turnbuckles for maximum durability
-Updated rear suspension with wider C and D mounts from the RC10B6.4 series.
-New longer 92.5mm CVA driveshafts for more rear grip.
-7.0mm blue aluminum rear clamping hexes with laser etching.
-New chassis side rails with the RC10B6.4 fan mount system
-New short course truck length aluminum chassis with 22.5 kick-up to complement updated front-end geometry and with new shape to reduce chassis scrub with the track surface.
-20, 22.5, and 25 molded bulkheads included for a complete range of caster and kickup options.
-B6.4 adjustable height steering bellcrank and rack system for optimized bumpsteer at all ride heights and caster angles.
-B6.4 -1mm kingpin offset steering and caster block set for smoother and more predictable steering through the entire wheel throw.
-Aluminum RC10B6.4 ESC mounting tray shifted forward in the chassis and with a wider footprint to fit electronics, resulting in a weight bias moved further forward.
-Factory Team RC10B6.4 11g aluminum ESC tray.
Legacy Features from the RC10SC6.2:
-Flat front and rear arms and shock towers for improved high traction handling.
-B74.1 two-piece rear hubs with aluminum upper caps for fine geometry adjustments.
-1.3mm front anti-roll bar and hardware included for added high-speed stability.
-Laydown Stealth(R) transmission included.
-+1 carbon fiber steering block arms.
-Updated front body mount is more rigid to protect body from cracking.
- light weight, hard-anodized aluminum chassis with centralized mass and three mid-motor positions for improved handling on all track types.
-Differential height adjustment with included 0, 1, 2, and 3mm inserts.
-Easy access to differential
-Split slipper assembly for better weight balance and shock clearance.
-Heavy-duty routed 4.0mm carbon fiber shock towers.
-Aluminum shocks with 3mm shafts and X-rings for improved smoothness.
-Machined pistons included for better fit and smoother operation.
-Reverse bellcrank steering allows more room for mounting electronics.
-Bolt-on steering block arms for easy Ackermann adjustments.
-Aluminum rear ballstud mount for added strength.
-One-piece shock bushings to make assembly easier.
- light weight aluminum top shaft.
-Aluminum C and D arm mounts included for large range of anti-squat and toe adjustments.
-Factory Team upgraded ball bearing kit included.

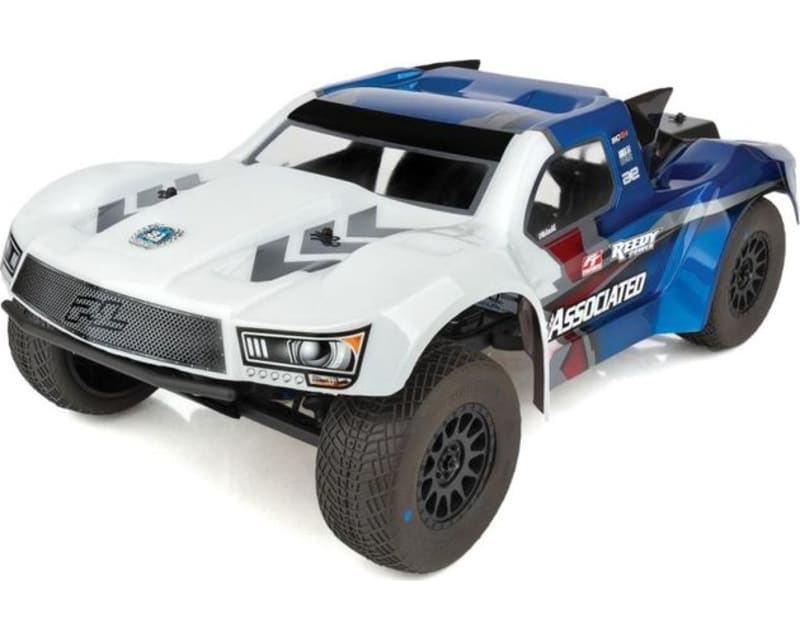

Requires components shown, but not included. Shown assembled and painted for display purposes only.
- Wheelbase 325mm (8.86")
- Weight Varies
The RC10SC6.4 is updated to the latest racing specs to give racers an edge over the competition.
New features for RC10SC6.4:
-New 13mm big bore threaded aluminum shocks and springs with machined shock pistons for improved bump and jump handling.
-13mm machined shock pistons, 2x1.6mm front and 2x1.8mm rear.
-New front ballstud mount and top plate with angled steering system for improved steering consistency
-New 3.5mm heavy-duty ball cups and turnbuckles for maximum durability
-Updated rear suspension with wider C and D mounts from the RC10B6.4 series.
-New longer 92.5mm CVA driveshafts for more rear grip.
-7.0mm blue aluminum rear clamping hexes with laser etching.
-New chassis side rails with the RC10B6.4 fan mount system
-New short course truck length aluminum chassis with 22.5 kick-up to complement updated front-end geometry and with new shape to reduce chassis scrub with the track surface.
-20, 22.5, and 25 molded bulkheads included for a complete range of caster and kickup options.
-B6.4 adjustable height steering bellcrank and rack system for optimized bumpsteer at all ride heights and caster angles.
-B6.4 -1mm kingpin offset steering and caster block set for smoother and more predictable steering through the entire wheel throw.
-Aluminum RC10B6.4 ESC mounting tray shifted forward in the chassis and with a wider footprint to fit electronics, resulting in a weight bias moved further forward.
-Factory Team RC10B6.4 11g aluminum ESC tray.
Legacy Features from the RC10SC6.2:
-Flat front and rear arms and shock towers for improved high traction handling.
-B74.1 two-piece rear hubs with aluminum upper caps for fine geometry adjustments.
-1.3mm front anti-roll bar and hardware included for added high-speed stability.
-Laydown Stealth(R) transmission included.
-+1 carbon fiber steering block arms.
-Updated front body mount is more rigid to protect body from cracking.
- light weight, hard-anodized aluminum chassis with centralized mass and three mid-motor positions for improved handling on all track types.
-Differential height adjustment with included 0, 1, 2, and 3mm inserts.
-Easy access to differential
-Split slipper assembly for better weight balance and shock clearance.
-Heavy-duty routed 4.0mm carbon fiber shock towers.
-Aluminum shocks with 3mm shafts and X-rings for improved smoothness.
-Machined pistons included for better fit and smoother operation.
-Reverse bellcrank steering allows more room for mounting electronics.
-Bolt-on steering block arms for easy Ackermann adjustments.
-Aluminum rear ballstud mount for added strength.
-One-piece shock bushings to make assembly easier.
- light weight aluminum top shaft.
-Aluminum C and D arm mounts included for large range of anti-squat and toe adjustments.
-Factory Team upgraded ball bearing kit included.
Requires components shown, but not included. Shown assembled and painted for display purposes only.
SPECIFICATIONS:
- Scale 1:10- Wheelbase 325mm (8.86")
- Weight Varies
Manufacturer information
Associated prefers to deal direct with customers on questions of warranty and returns. Please contact Associated directly regarding such issues. All warranties and guarantees, including missing items, are handled directly by the manufacturer of that item. Should there be any problem with a product, you (The Customer) will need to contact the manufacturer to obtain service. Manufacturer contact information is available upon request. We must be contacted for a return authorization number before returning items for any reason. We cannot accept returned items that have been opened or are not in their original sealed factory containers.
Compatible vehicles
Additional details
| Country of origin | Taiwan |
| Package dimensions | 15.00" × 9.00" × 5.00" 38.10 cm × 22.86 cm × 12.70 cm |
| Part numbers | ASC70009 784695700093 |
| Shipping weight | 57.50 ounces 1630.10 grams 3.59 pounds |
