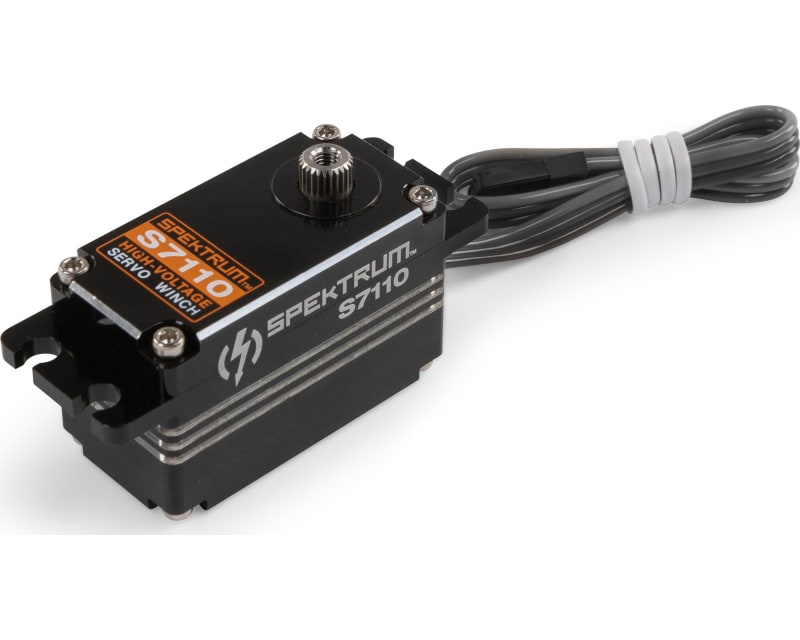

Spektrum 1/10 Servo Winch
Made by Spektrum · SPMSS7110
Original price: $271.58 · Sale: $199.99
Log in to add this part to a parts list to start planning your next project!
Description
FEATURES:
Design for 1/10th Scalers and Crawlers6V to 8.4V Operating Voltage
Durable and long-lasting brushless motor
High Torque (130oz-in @ 6V, 160oz-in @ 7.4V, and 180 oz-in @ 8.4V)
All Aluminum servo case for heat dissipation
7' feet of line with scale recovery hook included
Built-in Integrated brushless controller for easy set up and installation
Precise metal internal gears
Waterproof
25 teeth output shaft
Includes everything needed to start winching
OVERVIEW:
The Spektrum servo winch offers incredible performance for 1/10th scaler and crawlers. High voltage capable, the servo winch can produce 160 oz of torque at 155RPM at 7.4V input. It's low-wear, metal gear drive train is powered b a brushless motor and bearing supported for smooth operation. Like all Spektrum servos, the S7110 Servo Winch delivers reliability, consistency, and performance that is second to none. Application
1/10 Rock Crawlers- Winch
Bearing
Ball Bearing
Bushing Or Bearing
Bearing
Connector Type
Universal
Connector Wire Length
7.48" (190 mm)
Current Draw Idle
2mA
Current Draw Stall
1.6A @ 6.0V, 1.8A @ 7.4V, 2A @ 8.4V
Gear Type
Metal
Input Voltage
6.0V ~ 8.4V
Maximum Servo Speed
123RPM @ 6.0V, 155RPM @ 7.4V
Maximum Servo Torque
130oz/in @ 6.0V, 160oz/in @ 7.4V, 180oz/in @ 8.4V
Product Height
0.99" (25 mm)
Product Length
1.59" (40 mm)
Product Weight
2oz (57g)
Product Width
0.8" (20 mm)
Programmable
No
Rotation Range
360 Degree Continuous
Servo Operating Voltage
6.0 - 8.4V (HV)
Servo Size Category
Standard
Servo Type
Digital
Spline Count
25 - Tooth
Wire Gauge
22 AWG
Manufacturer information
All warranties and guarantees, including missing items, are handled directly by the manufacturer of that item. Should there be any problem with a product, you (The Customer) will need to contact the manufacturer to obtain service. Manufacturer contact information is available upon request. We must be contacted for a return authorization number before returning items for any reason. We cannot accept returned items that have been opened or are not in their original sealed factory containers.
Compatible vehicles (47)
Additional details
| Country of origin | China |
| Package dimensions | 4.25" × 3.00" × 1.25" 10.80 cm × 7.62 cm × 3.18 cm |
| Part numbers | 605482167250 SPMSS7110 |
| Shipping weight | 5.10 ounces 144.58 grams 0.32 pounds |
