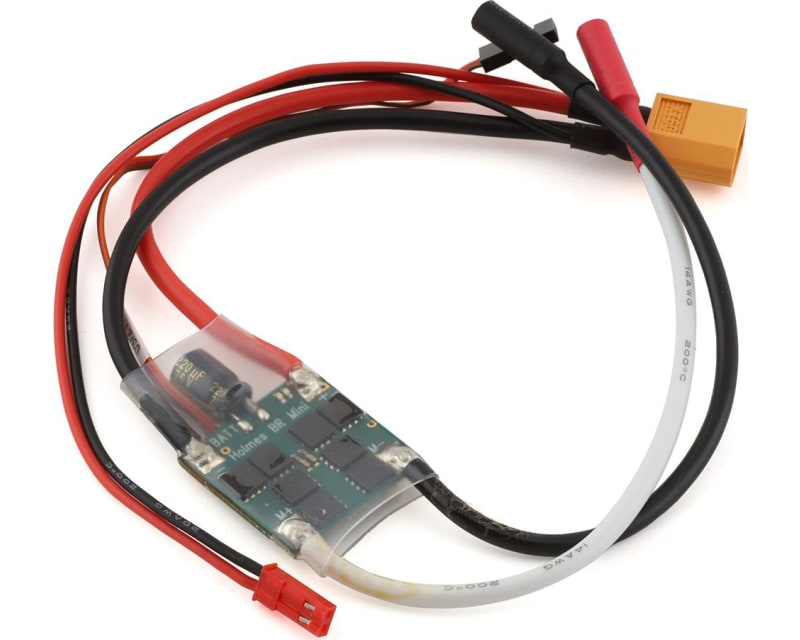

Torquemaster Br Mini Brushed Esc
Made by Holmes Hobbies · HHB210100009
Sale
-31%
$103.49
List price: $149.02
2 in stock
Parts lists
Log in to add this part to a parts list to start planning your next project!
Description
The Holmes Hobbies TorqueMaster BR Mini Brushed ESC is a high performance, competition brushed motor ESC. The TorqueMaster BR Mini ESC is a miniaturized version of the BR-XL, making it ideal for weight conscious comp crawler rigs, scale builds, robotics, servo motor and winch use. It has been designed from scratch to meet the rigorous demands of low speed control and high torque density. Comes stock with Auto LiPo LVC, Full drag brake, instant reverse, and 100% reverse throttle settings. This ESC comes equipped with an XT60 battery connector and 4mm motor bullet connectors. A JST lead attaches from the back of the XT60 providing direct power.
Recommended for competitive RC Rock Crawling and Off Road Truck environments, and 30a or less (per channel) robotic use.
6v to 25v input, external BEC suggested for all installations
Brushed only
Stick and Castle Link programming compatible
Reverse and brake adjustment
Throttle and Brake curve adjustment
Regenerative Drag Brake
Active Hold Brake (The Holmes Hold!)
Quiet mode
BEC: 6V @ 5A
Continuous Current: 30A
Burst Current: 80A
Weight: 38g (with battery leads)
Motor Limit: Brushed only, no 540-motor limit
NOTE:
Because this is not a stock replacement ESC recommended for a specific vehicle, you will need to find the system limits for your vehicle. Happy tuning!Recommended for competitive RC Rock Crawling and Off Road Truck environments, and 30a or less (per channel) robotic use.
FEATURES:
1 year manufacturers warranty6v to 25v input, external BEC suggested for all installations
Brushed only
Stick and Castle Link programming compatible
Reverse and brake adjustment
Throttle and Brake curve adjustment
Regenerative Drag Brake
Active Hold Brake (The Holmes Hold!)
Quiet mode
SPECIFICATIONS:
Voltage: 2S-6S (6-25V DC input)BEC: 6V @ 5A
Continuous Current: 30A
Burst Current: 80A
DIMENSIONS:
46x34x20mmWeight: 38g (with battery leads)
Motor Limit: Brushed only, no 540-motor limit
Manufacturer information
All warranties and guarantees, including missing items, are handled directly by the manufacturer of that item. Should there be any problem with a product, you (The Customer) will need to contact the manufacturer to obtain service. Manufacturer contact information is available upon request. We must be contacted for a return authorization number before returning items for any reason. We cannot accept returned items that have been opened or are not in their original sealed factory containers.
Additional details
| Country of origin | United States |
| Package dimensions | 8.00" × 4.00" × 4.00" 20.32 cm × 10.16 cm × 10.16 cm |
| Part numbers | HHB210100009 210100009 |
| Shipping weight | 1.50 ounces 42.52 grams 0.09 pounds |
