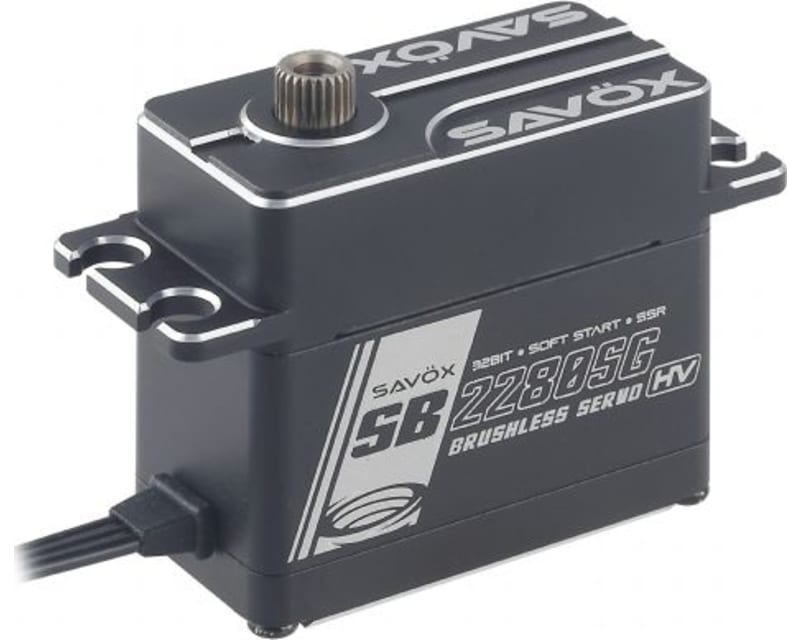

High Voltage brushless Steel Gear Monster Torque Servo
Made by Savox · SAVSB2280SGP
List price: $159.99
Parts lists
Description
The Savox SB-2280SGP High Voltage brushless Digital Servo combines leading edge technology with super high 12 bit (4096) resolution.
"Plus" series servos feature Soft Start and Sanwa SSR compatibility.
Capable of HV operation.
brushless motor for smooth operation and efficiency.
Ideal for 1/8 buggies, crawlers, and large-scale aircraft.
Torque @ 7.4V50.0kg-cm/694.4oz-in
Torque @ 8.4V60.0kg-cm/833.2oz-in
Speed @ 6V0.17 sec/60
Speed @ 7.4V0.14 sec/60
Speed @ 8.4V0.12 sec/60
Dimensions L x W x H (mm): 40.3 x 20.2 x 38.7
Weight: 83g
Technical
Running Current (no load): 180mA @6.0V, 200mA @7.4V, 220mA @8.4V
Stall Current (at locked): 6000mA @6.0V, 7400mA @7.4V, 8400mA @8.4V
Idle Current: 5mA @6.0V, 5mA @7.4V, 5mA @8.4V
Wire length: 300 5mm
Output Gear Spline: 25 Tooth
Operating Travel: 100 (10002000second)
Neutral Position: 1500second
Pulse Width Range: 8002200second
Maximum Travel: Appx 130 (9002100second)
Refresh Rate: 333 Hz
Motor Type: brushless
Manufacturer information
warranty@savoxusa.com Savox strive to deliver a high quality product and work continuously to make every product free from defects. Savox offers a one-year manufacturers warranty on all thier servos and Savox stands by thier product. If for some reason you feel you have a warranty situation, please contact thier warranty department via the email address below and Savox will be happy to assist you. Please include a detailed description of the problem you are having and Savox will promptly return email. Warranty does not cover issues due to misuse, negligence, or normal Savoxar and tear. Stripped gear sets are not covered by warranty but servos may be sent into SavoxUSA for repair (all costs incurred will be covered by customer including retail price for gear sets, shipping, and nominal fees for time and labor). Again, if you have any questions about warranty situations, please feel free to contact us.
Additional details
| Package dimensions | 4.15" × 3.00" × 1.65" 10.54 cm × 7.62 cm × 4.19 cm |
| Part numbers | SAVSB2280SGP 4710006994321 |
| Shipping weight | 5.80 ounces 164.43 grams 0.36 pounds |
