F10 Straight Rear Axle Set

The F10 Plastic Molded Straight axles benefit from Vanquish Products years of design experience in making the industrys best aluminum axles. The plastic molded F10straight axles feature an ultra rigid design with an integrated truss that ties both ends of the axle together. The F10 Rear straight axle set includes a removable 3rd member, one piece bearing retainers and two upper link positions built into the housing.

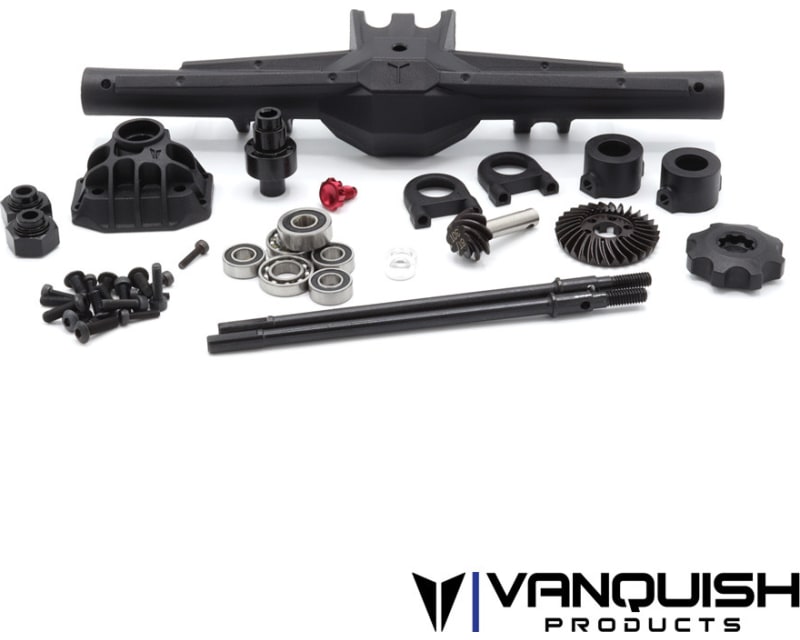

F10 Rear Straight Axle Set
Molded Plastic Axle housing
2 Upper link mount tuning positions
High-Pinion Hypoid Machined Axle Gears 30/8 (VPS08330)
6-Bolt Ring Gear and Spool
One-Piece Molded Bearing Retainers
Adjustable Lower Shock Mounting Position (S8E Offset Pivot Ball IRC00509)
Chromoly axle shafts
Scale removable third member
Machined aluminum red anodized rear fill cap with molded install tool
Optional lower ratio-ring and pinion (8/33) available VPS08331
Compatible with all Vanquish SLW and Incision hubs.
For use with Phoenix, Ultra, Pro, and SCX10II Bent steering tie rod.
Does not include link mounting hardware
Incision .280" width pivot ball compatible
For use with IRC00509 S8E lower shock mount offset pivot ball at shock mount locations
Recommended for use with the following:
VPS10130 VS4-10 Chassis Kit
IRC00303 VS4-10 F10 Link Set
VPS0152 VFD Transmission Kit
VPS10200 VFD Twin Transmission Kit
