F10 Aluminum Front Axle Housing Black Anodized

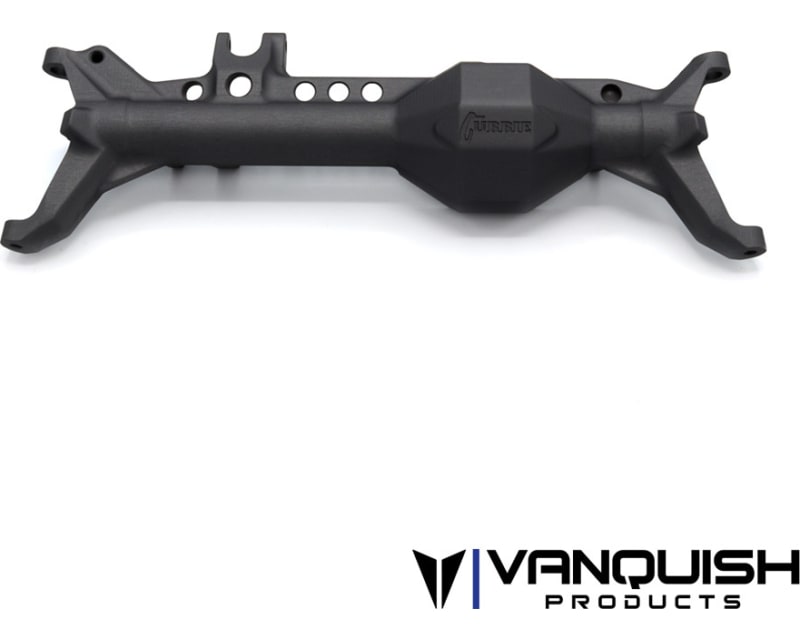

The Vanquish Products Currie F10 Aluminum Front Axle Housing is a direct replacement for the F10 axles included in the VS4-10 Phoenix Portal Kit and VPS08600 F10 Front axle set. This axle housing is built to the same outside dimensions as the molded F10 axle housing to maximize clearance and utilize the original components* from your F10 axles. Made in the USA with domestic produced aluminum and machined on Matsuura true 5-axis CNC machines.
Machined in the USA
Made from high quality domestic produced aluminum
Direct replacement for F10 Front Portal Axle housing**
20 Degree caster angle
Built in steering bump stops at 49 degrees
Full axle truss tied into upper link and panhard mount spanning the full axle width
Tucked "C" design for added clearance at steering knuckle. Moving the lower portion of the C-hub up inside of the knuckle provides class leading clearance
Package
X1 F10 Front axle housing*
*Replaces plastic axle housing from VPS09007 and VPS08600. All bearings, hardware, 3rd member, bearing retainers, gears, knuckles, axle shafts, etc are reused.
**Not compatible with brass tubes used in molded housings
***Please refer to VPS09007 or VPS08600 instruction manuals for replacement assembly instructions
