Description

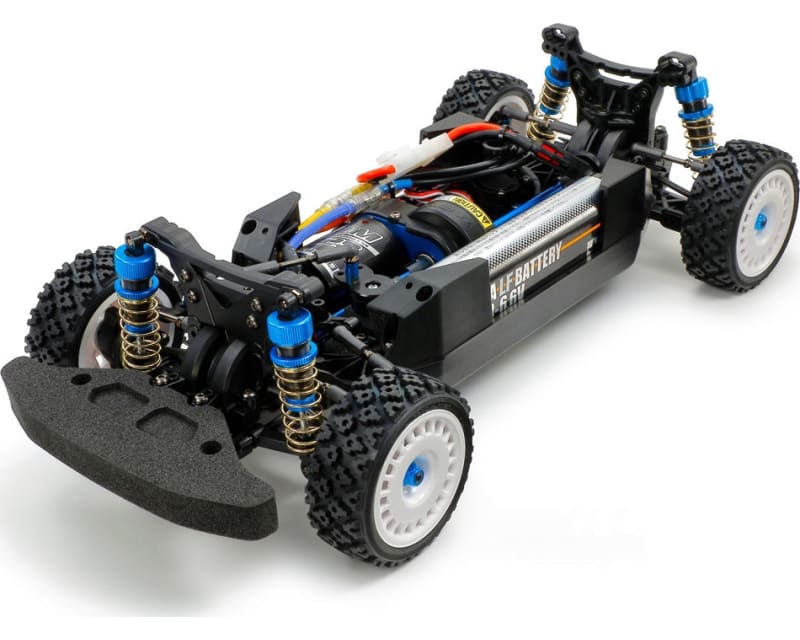

The all-new XV-02 Pro chassis kit is Tamiyas second modern era, purpose built, 4WD Rally machine! The XV-01 Pro incorporated a 4WD belt drive system with clever positioning of the RC electronic components with debris protection compartments. The all-new XV-02 Pro takes its 4WD drivetrain into a different direction by using a shaft-driven system with front mid-ship motor placement that incorporates equal length front and rear propeller shafts!
XV-02 chassis at a glance:
Comes with two 39T differential gears and one 40T differential gear for adjustment of front and rear drive balance. (Over-Drive and Under-Drive Adjustment)
Use 39T gear (w/15T gear) on the front and 40T gear (w/15T gear) on the rear for drive balance bias to front and vice-versa for drive balance bias to rear.
Features newly-designed parts such as gears, bathtub frame chassis, chassis cover, caster blocks featuring 6-degree caster angle (XV-01 chassis: 10-degree caster angle), and bumpers with skid angles to reduce surface contact.
The motor mount, propeller shafts, input and center shafts, and urethane bumpers have new metal parts.
Features a longitudinal battery pack position in the center-left for optimum balance.
Long aluminum dampers are employed at front and rear.
A polycarbonate chassis cover with wheel well liners help prevent dirt and dust from getting inside.
Suspension arms and front uprights are based upon the XV-01 chassis kit.
Comes with rally block tires and wheels.
Specifications Chassis length 368mm (excluding body) Chassis width 180mm Wheel base 257mm Frame = bathtub type Drive system = front midship motor / shaft drive 4WD Diff gear = oil-filled gear differential for both front and rear Steering = 3-split tie rod type Suspension = 4-wheel double wishbone Damper = Aluminum cylinder long oil damper (blue cap specification) Gear ratio = 9.58: 1 when using the 19T pinion included in the kit (10.71: 1 to 6.28: 1 in combination with the separately sold pinions (Up to 14 types of gear ratios can be selected)
XV-02 chassis at a glance:
Comes with two 39T differential gears and one 40T differential gear for adjustment of front and rear drive balance. (Over-Drive and Under-Drive Adjustment)
Use 39T gear (w/15T gear) on the front and 40T gear (w/15T gear) on the rear for drive balance bias to front and vice-versa for drive balance bias to rear.
Features newly-designed parts such as gears, bathtub frame chassis, chassis cover, caster blocks featuring 6-degree caster angle (XV-01 chassis: 10-degree caster angle), and bumpers with skid angles to reduce surface contact.
The motor mount, propeller shafts, input and center shafts, and urethane bumpers have new metal parts.
Features a longitudinal battery pack position in the center-left for optimum balance.
Long aluminum dampers are employed at front and rear.
A polycarbonate chassis cover with wheel well liners help prevent dirt and dust from getting inside.
Suspension arms and front uprights are based upon the XV-01 chassis kit.
Comes with rally block tires and wheels.
REQUIREMENTS:
Tamiya Rally Body, 2-channel radio, servo, ESC, 540-type motor, and 7.2-7.4volt battery with compatible charger. Specifications Chassis length 368mm (excluding body) Chassis width 180mm Wheel base 257mm Frame = bathtub type Drive system = front midship motor / shaft drive 4WD Diff gear = oil-filled gear differential for both front and rear Steering = 3-split tie rod type Suspension = 4-wheel double wishbone Damper = Aluminum cylinder long oil damper (blue cap specification) Gear ratio = 9.58: 1 when using the 19T pinion included in the kit (10.71: 1 to 6.28: 1 in combination with the separately sold pinions (Up to 14 types of gear ratios can be selected)
Manufacturer information
All warranties and guarantees, including missing items, are handled directly by the manufacturer of that item. Should there be any problem with a product, you (The Customer) will need to contact the manufacturer to obtain service. Manufacturer contact information is available upon request. We must be contacted for a return authorization number before returning items for any reason. We cannot accept returned items that have been opened or are not in their original sealed factory containers.
Additional details
| Country of origin | Japan |
| Package dimensions | 18.50" × 8.50" × 5.00" 46.99 cm × 21.59 cm × 12.70 cm |
| Part numbers | TAM58707 4950344587070 |
| Shipping weight | 62.40 ounces 1769.01 grams 3.90 pounds |
