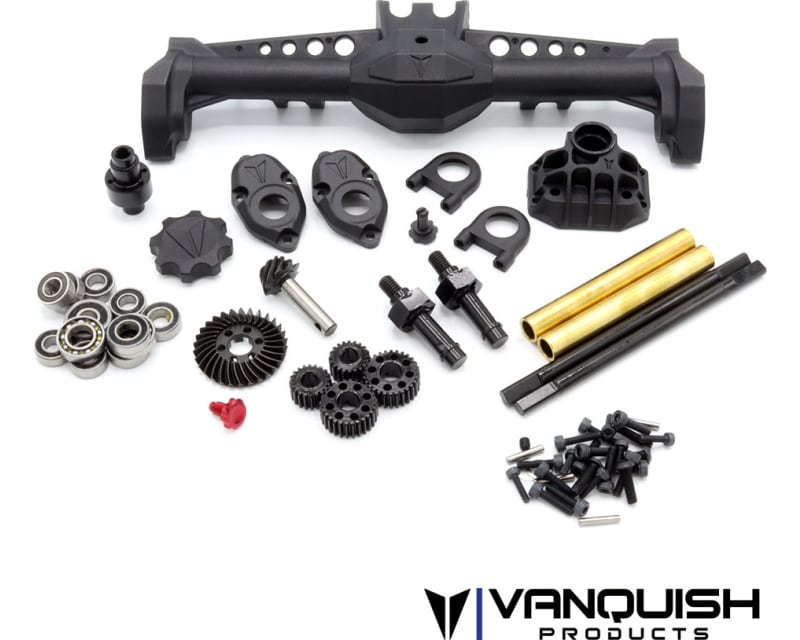

F10 Portal Rear Axle Set

The F10 Plastic Molded Portal axles benefit from Vanquish Products years of design experience in making the industrys best aluminum axles. The plastic molded F10 Portal axles feature an ultra rigid design with an integrated truss that ties both ends of the axle together, as well as brass inner reinforcement tubes to add more strength and provide some weight down low to the vehicle.
F10 Portal Rear Axle Set
Molded Plastic Axle housing
2 Upper link mount tuning positions
Machined Chromoly Portal Gears (VPS08353)
High-Pinion Hypoid Machined Axle Gears 30/8 (VPS08330)
6-Bolt Ring Gear and Spool
1.4:1 Portal Gear Ratio (VPS08353)
6mm Output shafts with M5 wheel nut
One-Piece Molded Bearing Retainers
Adjustable Lower Shock Mounting Position (S8E Offset Pivot Ball IRC00509)
Chromoly axle shafts
Brass tube inserts
Scale removable third member
Machined aluminum red anodized rear fill cap with molded install tool
M5 wheel nut requires one of the following tools: IRC00142 or VPS08440
To add overdrive in the portal gears, install VPS08354 Standard portal gears in the rear axle
To add overdrive in the ring and pinion, install VPS08331
Compatible with all Vanquish SLW and Incision hubs.
Does not include link mounting hardware
Incision .280" width pivot ball compatible
For use with IRC00509 S8E lower shock mount offset pivot ball at shock mount locations
Recommended for use with the following:
VPS10130 VS4-10 Chassis Kit
IRC00303 VS4-10 F10 Link Set
VPS0152 VFD Transmission Kit
