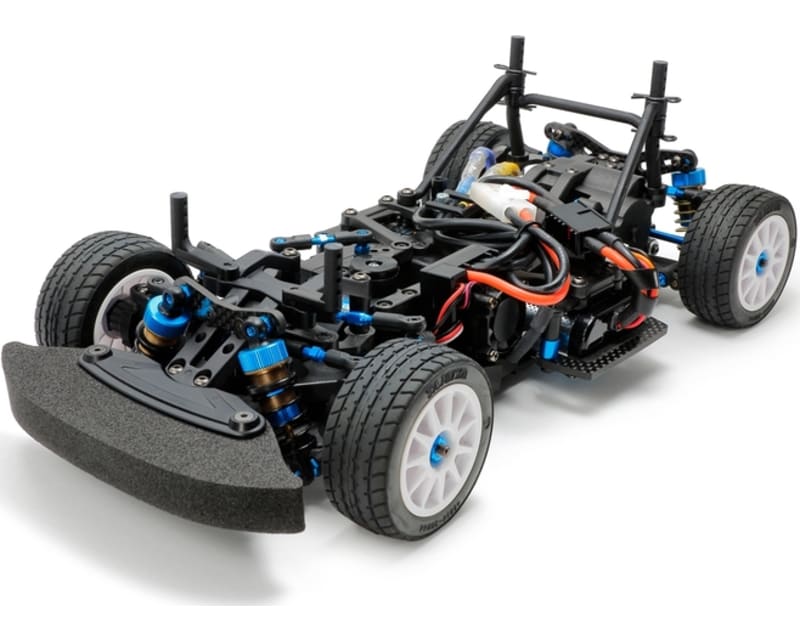

1/10 RC M-08R Chassis Kit Limited Edition
Made by Tamiya · TAM47480
Sale
-32%
$266.00
List price: $390.73
2 in stock
Parts lists
Log in to add this part to a parts list to start planning your next project!
Description
The Tamiya M-08 Chassis platform gets a performance boost with this Limited-Edition release. The M-08R Chassis Kit employs various kinds of option parts such as a ball differential, for the rear gearbox, and TRF (Tamiya Racing Factory) precision oil dampers to get ready for club races!
About the M-08 standard edition:
This assembly kit creates the M-08 Concept high performance R/C chassis, which employs a midship motor, rear-wheel drive layout for superior rear traction, plus a main frame split into front and rear sections that allow 3 different wheelbase selections. Smooth 4-wheel double wishbone suspension utilizes CVA oil dampers and long suspension arms for ground hugging performance, and front caster with a pairing of 0-degree suspension mount and 2-degree hub carrier. An oil-filled gear differential provides smooth drive, while motor and gearbox are positioned to ensure powerful drive under acceleration.
Option Parts Included in the M-08R kit:
42143: 4mm Aluminum Serrated Wheel Nut (4 pieces. -Blue)
42357: Cross Joints for Low Friction Assembly Universal Shafts
51000: Hi-Torque Servo Saver (Black)
53509: Hard Fluorine Coated 0.6 Aluminum Pinion Gear (20T/F201)
53642: 5mm Aluminum Ball Connector (Blue)
53823: Clamp Type Aluminum Wheel Hub (5mm Thick)
53851: 46mm Titanium Coated Suspension Shafts 2 pieces.
53917: f 2.6mm Titanium Coated Suspension Shaft Set for Reversible Suspension
53968: 5x5mm Hard Hex Head Ball Head Connector (5 pieces. )
54183: M-Chassis Reinforced Freewheel Axle Set
54868: Open Face 5mm Reinforced Adjusters (Medium/8 pieces. )
54869: Open Face 5mm Reinforced Adjusters (Long/8 pieces. )
54906: M-08 Concept Aluminum Shaft Set
54969: 33mm light weight Aluminum Swing Shafts (2 pieces. )
- Includes carbon fiber components such as battery holders and body mount base (Item 54908).
- M-08 Concept Reinforced K Parts (Gearbox) (Item 54983) give sturdier gearbox and steering setups, for more efficient drive and improved steering feel.
- Comes with the dedicated chassis weight (20g).
- Features hex head screws.
- M-07 Concept Reinforced D Parts (Suspension Arms) (Item 54811) featuring carbon fiber-reinforced resin allow superior cornering ability.
- Durable, light weight aluminum turnbuckle shafts (3x18mm; Item54247, 3x23mm; Item 54248, and 3x32mm; Item 54249) allow adjustment of length without removing adjusters.
- Includes a blue anodized finish version of the TRF Super Short Big Bore Dampers+ (4 pieces. ) (Item 42355).
- The 1.3mm diameter damper pistons (x3) give smooth oil flow and facilitate more flexible suspension.
-
About the M-08 standard edition:
This assembly kit creates the M-08 Concept high performance R/C chassis, which employs a midship motor, rear-wheel drive layout for superior rear traction, plus a main frame split into front and rear sections that allow 3 different wheelbase selections. Smooth 4-wheel double wishbone suspension utilizes CVA oil dampers and long suspension arms for ground hugging performance, and front caster with a pairing of 0-degree suspension mount and 2-degree hub carrier. An oil-filled gear differential provides smooth drive, while motor and gearbox are positioned to ensure powerful drive under acceleration.
Option Parts Included in the M-08R kit:
42143: 4mm Aluminum Serrated Wheel Nut (4 pieces. -Blue)
42357: Cross Joints for Low Friction Assembly Universal Shafts
51000: Hi-Torque Servo Saver (Black)
53509: Hard Fluorine Coated 0.6 Aluminum Pinion Gear (20T/F201)
53642: 5mm Aluminum Ball Connector (Blue)
53823: Clamp Type Aluminum Wheel Hub (5mm Thick)
53851: 46mm Titanium Coated Suspension Shafts 2 pieces.
53917: f 2.6mm Titanium Coated Suspension Shaft Set for Reversible Suspension
53968: 5x5mm Hard Hex Head Ball Head Connector (5 pieces. )
54183: M-Chassis Reinforced Freewheel Axle Set
54868: Open Face 5mm Reinforced Adjusters (Medium/8 pieces. )
54869: Open Face 5mm Reinforced Adjusters (Long/8 pieces. )
54906: M-08 Concept Aluminum Shaft Set
54969: 33mm light weight Aluminum Swing Shafts (2 pieces. )
FEATURES:
- The TA06 Rear Ball Differential Set (Item 54306) utilizes twelve 3/32-inch balls to give superb stability. - Includes carbon fiber components such as battery holders and body mount base (Item 54908).
- M-08 Concept Reinforced K Parts (Gearbox) (Item 54983) give sturdier gearbox and steering setups, for more efficient drive and improved steering feel.
- Comes with the dedicated chassis weight (20g).
- Features hex head screws.
- M-07 Concept Reinforced D Parts (Suspension Arms) (Item 54811) featuring carbon fiber-reinforced resin allow superior cornering ability.
- Durable, light weight aluminum turnbuckle shafts (3x18mm; Item54247, 3x23mm; Item 54248, and 3x32mm; Item 54249) allow adjustment of length without removing adjusters.
- Includes a blue anodized finish version of the TRF Super Short Big Bore Dampers+ (4 pieces. ) (Item 42355).
- The 1.3mm diameter damper pistons (x3) give smooth oil flow and facilitate more flexible suspension.
-
REQUIREMENTS:
2-channel radio, steering servo, ESC, 540-motor, 7.2-7.4volt battery pack with compatible charger, M-chassis 60D tires, and M-chassis body set.Manufacturer information
All warranties and guarantees, including missing items, are handled directly by the manufacturer of that item. Should there be any problem with a product, you (The Customer) will need to contact the manufacturer to obtain service. Manufacturer contact information is available upon request. We must be contacted for a return authorization number before returning items for any reason. We cannot accept returned items that have been opened or are not in their original sealed factory containers.
Additional details
| Country of origin | Philippines |
| Package dimensions | 16.00" × 8.50" × 5.25" 40.64 cm × 21.59 cm × 13.34 cm |
| Part numbers | TAM47480 4950344474806 4950344082193 |
| Shipping weight | 45.20 ounces 1281.40 grams 2.83 pounds |
