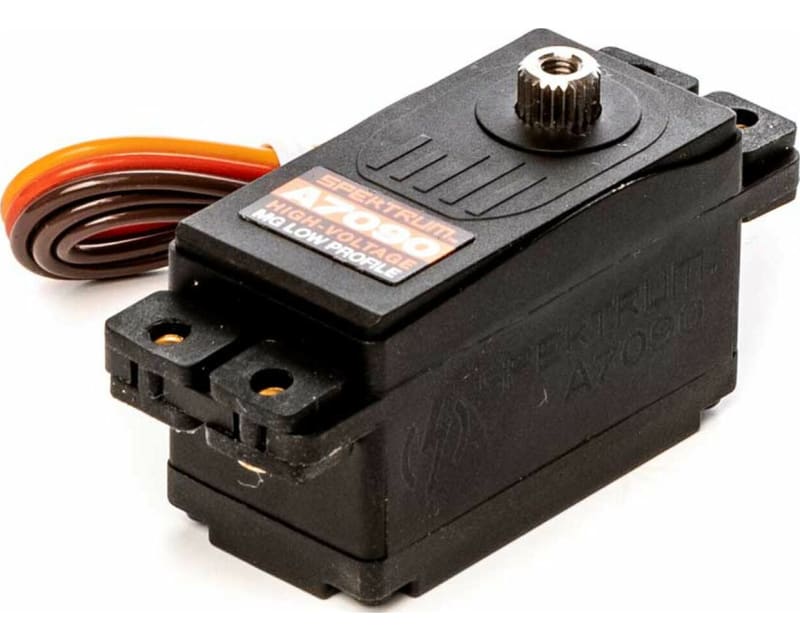

A7090 Brushless Low Profile MG HV Servo

High Voltage (HV) capable (4.8-8.4v input range)
Low profile design to fit into tighter spaces and shallow wing pockets
Impressive torque and speed in a standard low profile servo size (18kg-cm and .068 sec/60 @8.4v)
Durable and long-lasting brushless motor
Low wear and tightly meshed all metal gear train
Dual bearing supported drive train helps maximize smooth operation
Over Current and Temperature protection
Integrated servo failsafe holds last known position if signal is lost and power is maintained
Operating Frequency: 200hz to 333hz
Airplane
Bearing
Dual BB
Bushing Or Bearing
Bearing
Connector Type
Universal
Deadband
<1s
Gear Type
Metal
Input Voltage
4.8V-8.4V
Maximum Servo Speed
0.17 sec/60 deg @ 6.0V; 0.091 sec/60 deg @ 7.4V; 0.068 sec/60 deg @ 8.4V
Maximum Servo Torque
205 oz-in (14.76kg-cm) @ 6.0V; 215 oz-in (15.5kg-cm) @ 7.4V; 250 oz-in (18kg-cm) @ 8.4V
Motor Type
brushless
Overload Protection
No
Product Application
Air
Product Height
0.99" (25 mm)
Product Length
1.6" (41 mm)
Product Weight
1.8 oz (50g)
Product Width
0.81" (21 mm)
Programmable
No
Servo Operating Voltage
4.8 - 8.4V (HV)
Servo Size Category
Low Profile
Servo Type
Digital
Spline Count
23 - Tooth
Water-Resistant
No
