Description

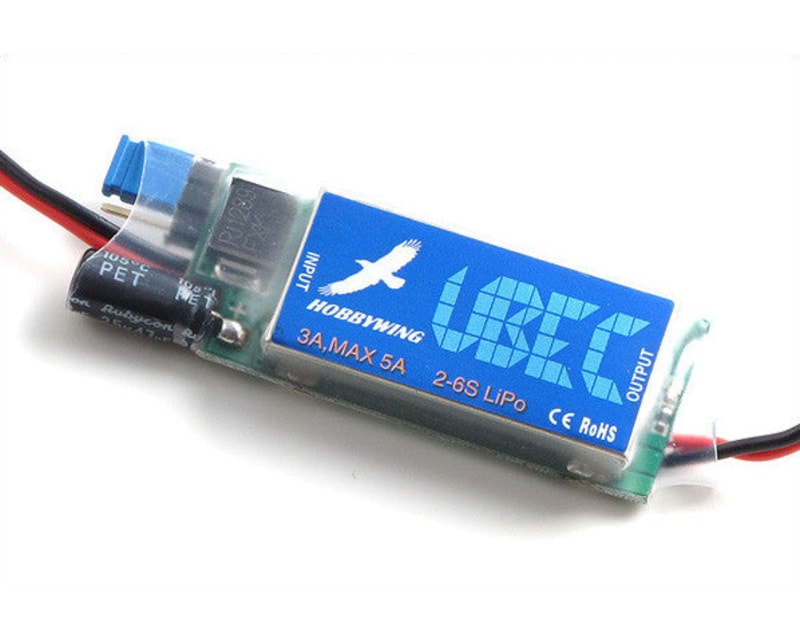

The 3A-UBEC is a switch-mode DC-DC regulator supplied with a 2-6 cells lithium battery pack (or 5-18 cells NiMh /NiCd battery), it outputs a consistent safe voltage for your receiver, gyro and servos. It is very suitable for RC helicopter.
- The output is powerful even working with 4 to 6 cells LiPo battery.
- Battery polarity reversal protection.
- A metal shield covers almost all the electronic components, and a specially made filter is attached with the output wires to significantly reduce the electromagnetic interference.
- The working status is shown by an indicator (LED), lights when the output is in normal range.
- Continuous output current: 3 Amps
- Input: 5.5V-26V (2-6 cells lithium battery pack or 5-18 cells NiMh /NiCd battery)
- Size: 43mm*17mm*7mm (L*W*H)
- Weight: 11g
FEATURES:
- Designed with an advanced switch mode DC-DC regulator IC. - The output is powerful even working with 4 to 6 cells LiPo battery.
- Battery polarity reversal protection.
- A metal shield covers almost all the electronic components, and a specially made filter is attached with the output wires to significantly reduce the electromagnetic interference.
- The working status is shown by an indicator (LED), lights when the output is in normal range.
SPECIFICATIONS:
- Output Voltage: 5V@3A or 6V@3A (Changeable with an output-voltage select switch) - Continuous output current: 3 Amps
- Input: 5.5V-26V (2-6 cells lithium battery pack or 5-18 cells NiMh /NiCd battery)
- Size: 43mm*17mm*7mm (L*W*H)
- Weight: 11g
Manufacturer information
Additional details
| Country of origin | China |
| Package dimensions | 6.50" × 4.35" × 0.50" 16.51 cm × 11.05 cm × 1.27 cm |
| Part numbers | HWI86010010 088718500104 |
| Shipping weight | 0.80 ounces 22.68 grams 0.05 pounds |
