Hs-55 Servo Economy Sub Micro Univ

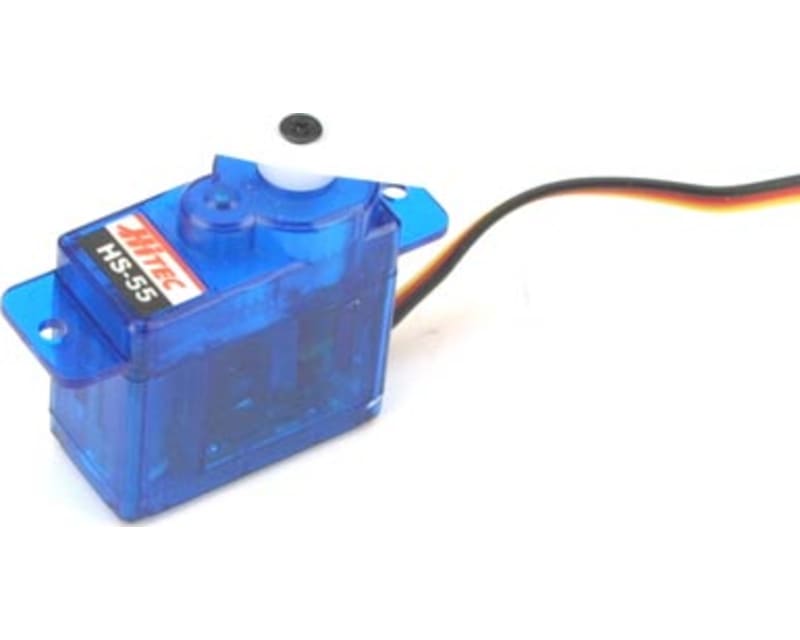

Hitec HS-55 Micro Servo (31055S) is an 8g analog micro servo that has been a standard choice for small models for years, built for affordable, reliable performance. It produces 1.1 kg-cm of torque at 4.8V and 1.3 kg-cm at 6V, with transit speeds of 0.17 and 0.14 seconds per 60 degrees respectively, driven by a 3-pole ferrite motor through nylon gears in an engineering plastic case. At 22.8 x 11.6 x 24.0mm it fits micro aircraft, small foamies, park flyers, micro cars and boats, and light auxiliary functions in larger models.
* Analog circuit, PWM signal
* Operating voltage 4.8V to 6.0V
* Stall torque 1.1 kg-cm (15.3 oz-in) at 4.8V, 1.3 kg-cm (18.1 oz-in) at 6.0V
* Speed 0.17 sec/60 degrees at 4.8V, 0.14 sec/60 degrees at 6.0V
* 3-pole ferrite motor with metal brushes
* Nylon gear train
* Conventional potentiometer
* Engineering plastic case
* 15-segment, 4.0mm diameter output spline
* Dimensions 22.8 x 11.6 x 24.0mm
* Weight 8g
* Running current 150 to 180mA

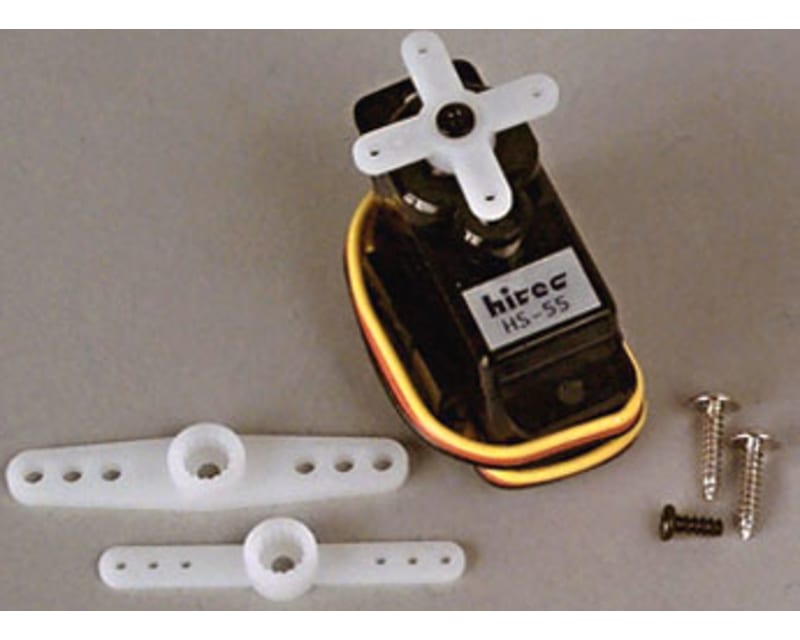

* Replacement case, gear, and horn sets available from Hitec
* 1 x HS-55 micro servo
* Receiver or servo controller with a PWM output channel
* 4.8V to 6.0V power from a receiver, BEC, or battery pack
* Not waterproof; keep away from wet running conditions
