Description

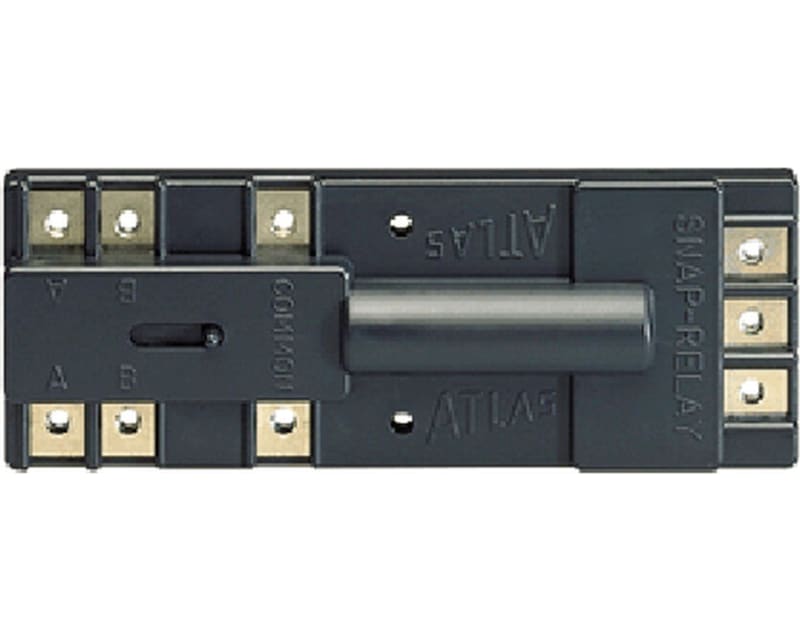

A double-pole, double-throw relay with actuating mechanism driven by a momentary-power, twin coil solenoid. (A solenoid is a cylindrical coil of insulated wire in which an iron core is made to move back and forth by a flow of electric current. ) With just a few simple connections, this small device, which may be mounted anywhere, can:
Power the frogs on Atlas Mark 3 & Code 83 #6 turnouts
Control trackside signal lamps to show turnout point positions
Operate control panel lamps to show settings of remotely located turnouts (switches)
Provide selective track siding control. Sidings are powered only when points are aligned for siding. Siding remains dead when points are set for the mainline.
Control X-sections automatically. This very useful track arrangement is thoroughly discussed in Atlas Complete Wiring Book.
Power the frogs on Atlas Mark 3 & Code 83 #6 turnouts
Control trackside signal lamps to show turnout point positions
Operate control panel lamps to show settings of remotely located turnouts (switches)
Provide selective track siding control. Sidings are powered only when points are aligned for siding. Siding remains dead when points are set for the mainline.
Control X-sections automatically. This very useful track arrangement is thoroughly discussed in Atlas Complete Wiring Book.
Manufacturer information
All warranties and guarantees, including missing items, are handled directly by the manufacturer of that item. Should there be any problem with a product, you (The Customer) will need to contact the manufacturer to obtain service. Manufacturer contact information is available upon request. We must be contacted for a return authorization number before returning items for any reason. We cannot accept returned items that have been opened or are not in their original sealed factory containers.
Compatible vehicles
Additional details
| Country of origin | China |
| Package dimensions | 5.50" × 2.85" × 1.00" 13.97 cm × 7.24 cm × 2.54 cm |
| Part numbers | ATL200 732573002005 |
| Shipping weight | 2.00 ounces 56.70 grams 0.13 pounds |
