Firma 2800kv BL Sensored Crawler Motor
Made by Spektrum · SPMXSM3002
Sale
-29%
$139.99
List price: $195.99
One left
Parts lists
Log in to add this part to a parts list to start planning your next project!
Description

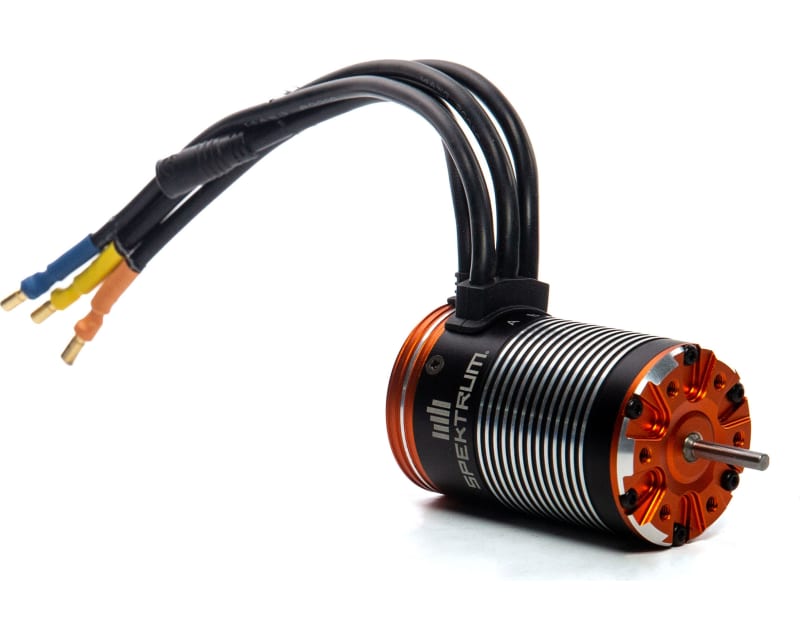

Firma 2800kv BL Sensored Crawler Motor
The Firma 2800Kv Sensored brushless motor is a great choice for 1/10 scale crawlers, rock racers, and trailers running on 2S 3S LiPo power. Featuring a low cog 4-pole 8-magnet rotor design, CNC machined aluminum housing, insulated high purity copper windings, high-quality alloy steel 3.175mm (1/8") output shaft, and precision bearings for high durability and smooth rotation. Preinstalled with 4mm gold plated bullet connectors for easy installation.
Perfect for high speed off-road applications such as rock bouncers and rock racers
High-quality 4-pole sintered rotor
Polarity protection - magnetic encoder inside the motor guarantees consistency between three phases signals and always outputs precise signals indicated by rotor position.
4mm gold plated bullet connectors
Bushing Or Bearing Bearing
Connector Type 4mm Bullet
DCC Equipped
Forward Yes
Input Voltage 7.4 - 11.1V
Lighted LED
Maximum Continuous Current 50A
Motor Type Brushless - Sensored
Number of Poles 4
Outer Diameter 1.42" (36 mm)
Product Length 2.27" (58 mm)
Recommended Speed Control Spektrum Firma 60A Sensored Brushless Smart Crawler ESC
Reverse Yes
RPM/Volt (Kv) 2800Kv
Shaft Diameter 0.125" (3 mm)
Sound Econami
Water-Resistant Yes
Wheel Configuration 2-6-0
The Firma 2800Kv Sensored brushless motor is a great choice for 1/10 scale crawlers, rock racers, and trailers running on 2S 3S LiPo power. Featuring a low cog 4-pole 8-magnet rotor design, CNC machined aluminum housing, insulated high purity copper windings, high-quality alloy steel 3.175mm (1/8") output shaft, and precision bearings for high durability and smooth rotation. Preinstalled with 4mm gold plated bullet connectors for easy installation.
FEATURES:
Excellent upgrade for 540 brushed motors with the same diameter and mounting pattern (vehicle must accept pinions with a 1/8" mm bore)Perfect for high speed off-road applications such as rock bouncers and rock racers
High-quality 4-pole sintered rotor
Polarity protection - magnetic encoder inside the motor guarantees consistency between three phases signals and always outputs precise signals indicated by rotor position.
4mm gold plated bullet connectors
SPECIFICATIONS:
Application 1/10 scale crawlers, rock racers, and trailers running on 2S-3S LiPo powerBushing Or Bearing Bearing
Connector Type 4mm Bullet
DCC Equipped
Forward Yes
Input Voltage 7.4 - 11.1V
Lighted LED
Maximum Continuous Current 50A
Motor Type Brushless - Sensored
Number of Poles 4
Outer Diameter 1.42" (36 mm)
Product Length 2.27" (58 mm)
Recommended Speed Control Spektrum Firma 60A Sensored Brushless Smart Crawler ESC
Reverse Yes
RPM/Volt (Kv) 2800Kv
Shaft Diameter 0.125" (3 mm)
Sound Econami
Water-Resistant Yes
Wheel Configuration 2-6-0
Manufacturer information
All warranties and guarantees, including missing items, are handled directly by the manufacturer of that item. Should there be any problem with a product, you (The Customer) will need to contact the manufacturer to obtain service. Manufacturer contact information is available upon request. We must be contacted for a return authorization number before returning items for any reason. We cannot accept returned items that have been opened or are not in their original sealed factory containers.
Additional details
| Country of origin | China |
| Package dimensions | 4.50" × 3.50" × 2.00" 11.43 cm × 8.89 cm × 5.08 cm |
| Part numbers | 605482725641 SPMXSM3002 |
| Shipping weight | 10.60 ounces 300.50 grams 0.66 pounds |
