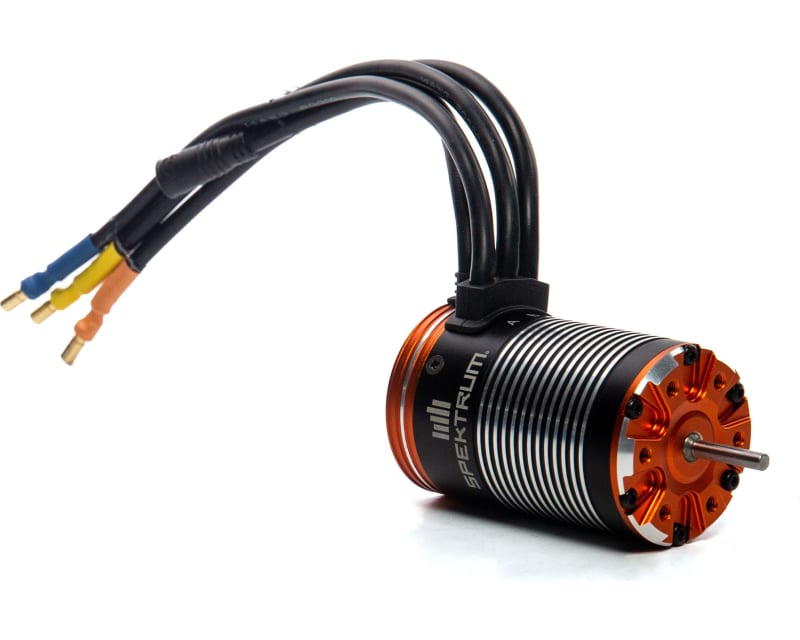

Firma 1400kv BL Sensored Crawler Motor
Made by Spektrum · SPMXSM3000
Sale
-37%
$129.99
List price: $205.83
2 in stock
Parts lists
Log in to add this part to a parts list to start planning your next project!
Description
Firma 1400kv BL Sensored Crawler Motor
Excellent upgrade for 540 brushed motors with the same diameter and mounting pattern (vehicle must accept pinions with a 1/8" mm bore)
Perfect for low speed, high torque applications such as competition crawlers
High-quality 4-pole sintered rotor
Polarity protection - magnetic encoder inside the motor guarantees consistency between three phases signals and always outputs precise signals indicated by rotor position.
4mm gold plated bullet connectors
Perfect for low speed, high torque applications such as competition crawlers
High-quality 4-pole sintered rotor
Polarity protection - magnetic encoder inside the motor guarantees consistency between three phases' signals and always outputs precise signals indicated by rotor position. When installing simply match wire color to esc connectors
4mm gold plated bullet connectors
Waterproof sensor wire with locking plug and gasket
High-quality construction with precision ball bearings and hardened steel 1/8" shaft
Application 1/10 scale crawlers, rock racers, and trailers running on 2S-3S LiPo power
Bushing Or Bearing Bearing
Connector Type 4mm Bullet
Forward Yes
Input Voltage 7.4 - 11.1V
Maximum Continuous Current 25A
Motor Type Brushless - Sensored
Number of Poles 4
Outer Diameter 1.42" (36 mm)
Product Length 2.27" (58 mm)
Recommended Speed Control Spektrum Firma 60A Sensored Brushless Smart Crawler ESC
Reverse Yes
RPM/Volt (Kv) 1400Kv
Shaft Diameter 0.125" (3 mm)
Water-Resistant Yes
Excellent upgrade for 540 brushed motors with the same diameter and mounting pattern (vehicle must accept pinions with a 1/8" mm bore)
Perfect for low speed, high torque applications such as competition crawlers
High-quality 4-pole sintered rotor
Polarity protection - magnetic encoder inside the motor guarantees consistency between three phases signals and always outputs precise signals indicated by rotor position.
4mm gold plated bullet connectors
OVERVIEW:
The Firma 1400Kv Sensored brushless motor is a great choice for 1/10 scale crawlers, rock racers, and trailers running on 2S 3S LiPo power. Featuring a low cog 4-pole 8-magnet rotor design, CNC machined aluminum housing, insulated high purity copper windings, high-quality alloy steel 3.175mm (1/8") output shaft, and precision bearings for high durability and smooth rotation. Preinstalled with 4mm gold plated bullet connectors for easy installation. The Spektrum FIRMA 60A Sensored Brushless Smart Crawler ESC is required. FEATURES:
Excellent upgrade for 540 brushed motors with the same diameter and mounting pattern (vehicle must accept pinions with a 1/8" mm bore)Perfect for low speed, high torque applications such as competition crawlers
High-quality 4-pole sintered rotor
Polarity protection - magnetic encoder inside the motor guarantees consistency between three phases' signals and always outputs precise signals indicated by rotor position. When installing simply match wire color to esc connectors
4mm gold plated bullet connectors
Waterproof sensor wire with locking plug and gasket
High-quality construction with precision ball bearings and hardened steel 1/8" shaft
SPECIFICATIONS:
Bushing Or Bearing Bearing
Connector Type 4mm Bullet
Forward Yes
Input Voltage 7.4 - 11.1V
Maximum Continuous Current 25A
Motor Type Brushless - Sensored
Number of Poles 4
Outer Diameter 1.42" (36 mm)
Product Length 2.27" (58 mm)
Recommended Speed Control Spektrum Firma 60A Sensored Brushless Smart Crawler ESC
Reverse Yes
RPM/Volt (Kv) 1400Kv
Shaft Diameter 0.125" (3 mm)
Water-Resistant Yes
Manufacturer information
All warranties and guarantees, including missing items, are handled directly by the manufacturer of that item. Should there be any problem with a product, you (The Customer) will need to contact the manufacturer to obtain service. Manufacturer contact information is available upon request. We must be contacted for a return authorization number before returning items for any reason. We cannot accept returned items that have been opened or are not in their original sealed factory containers.
Additional details
| Country of origin | China |
| Package dimensions | 4.50" × 3.50" × 2.00" 11.43 cm × 8.89 cm × 5.08 cm |
| Part numbers | SPMXSM3000 605482725627 |
| Shipping weight | 10.60 ounces 300.50 grams 0.66 pounds |
