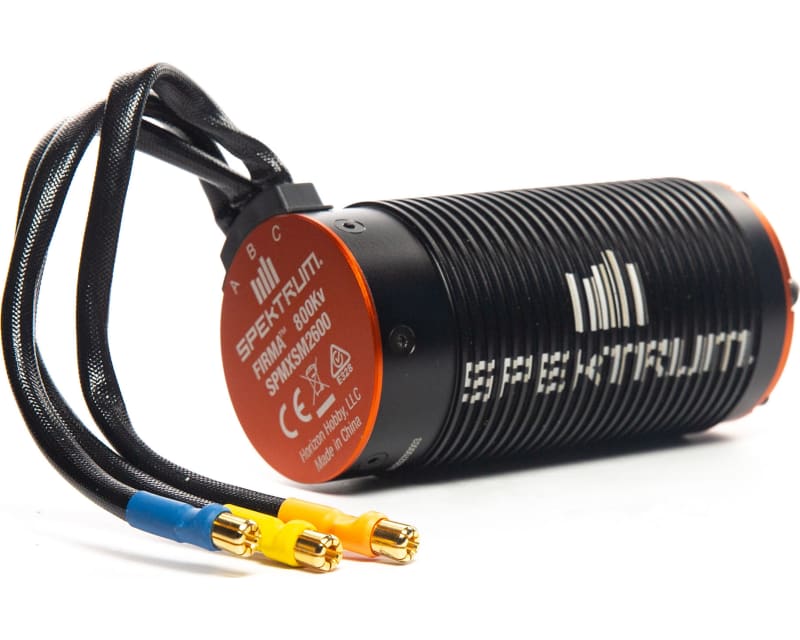

Firma 56111 800Kv 4-Pole brushless Motor: 8mm
Made by Spektrum · SPMXSM2600
Sale
-29%
$209.99
List price: $293.99
One left
Parts lists
Log in to add this part to a parts list to start planning your next project!
Description
FIRMA 800Kv 4-pole BL Motor
The Firma 800Kv brushless motor is a perfect option for Arrma Roller kits and 1/5 scale bashers and monster trucks with a 3-8S LiPo setup. Featuring a low cog 4-pole design, CNC machined aluminum housing, insulated high purity copper windings, high-quality alum steel 8mm output shaft, and precision bearings for high durability and smooth rotation. Preinstalled with 6.5mm gold plated bullet connectors for easy installation, and perfectly matched for the Firma 160 Smart ESC.
High efficiency design
8S LiPo power capable
High-quality 4-pole sintered rotor
6.5mm gold plated bullet connectors
High-quality construction with precision ball bearings and hardened steel 8mm shaft
Safe-D Shaft provides a c-clip locking point for preventing pinion gear slip
Application Arrma Roller Kits
Bushing Or Bearing Bearing
Connector Type 6.5mm Bullet
Connector Wire Length 7.48" (190 mm)
Efficiency 87%
Input Voltage 11.1 - 29.6V (3 - 8S)
Maximum Continuous Current 110A
Motor Design Inrunner
Motor Size 5611
Number of Poles 4
Outer Diameter 2.2" (56 mm)
Product Length 5.23" (133 mm)
Product Weight 39.86oz (1130g)
Recommended Speed Control Spektrum Firma 160A brushless Smart
Resistance .0049 ohms
RPM/Volt (Kv) 12, 475 / 15V
Shaft Diameter 0.3" (8 mm)
Shaft Length 0.867" (22 mm)
The Firma 800Kv brushless motor is a perfect option for Arrma Roller kits and 1/5 scale bashers and monster trucks with a 3-8S LiPo setup. Featuring a low cog 4-pole design, CNC machined aluminum housing, insulated high purity copper windings, high-quality alum steel 8mm output shaft, and precision bearings for high durability and smooth rotation. Preinstalled with 6.5mm gold plated bullet connectors for easy installation, and perfectly matched for the Firma 160 Smart ESC.
FEATURES:
Perfect upgrade for 1/5 scale bashers and monster trucks running on 3-8S LiPo batteries. High efficiency design
8S LiPo power capable
High-quality 4-pole sintered rotor
6.5mm gold plated bullet connectors
High-quality construction with precision ball bearings and hardened steel 8mm shaft
Safe-D Shaft provides a c-clip locking point for preventing pinion gear slip
SPECIFICATIONS:
Adjustable Timing NoApplication Arrma Roller Kits
Bushing Or Bearing Bearing
Connector Type 6.5mm Bullet
Connector Wire Length 7.48" (190 mm)
Efficiency 87%
Input Voltage 11.1 - 29.6V (3 - 8S)
Maximum Continuous Current 110A
Motor Design Inrunner
Motor Size 5611
Number of Poles 4
Outer Diameter 2.2" (56 mm)
Product Length 5.23" (133 mm)
Product Weight 39.86oz (1130g)
Recommended Speed Control Spektrum Firma 160A brushless Smart
Resistance .0049 ohms
RPM/Volt (Kv) 12, 475 / 15V
Shaft Diameter 0.3" (8 mm)
Shaft Length 0.867" (22 mm)
Manufacturer information
All warranties and guarantees, including missing items, are handled directly by the manufacturer of that item. Should there be any problem with a product, you (The Customer) will need to contact the manufacturer to obtain service. Manufacturer contact information is available upon request. We must be contacted for a return authorization number before returning items for any reason. We cannot accept returned items that have been opened or are not in their original sealed factory containers.
Additional details
| Country of origin | China |
| Package dimensions | 7.50" × 4.50" × 3.25" 19.05 cm × 11.43 cm × 8.26 cm |
| Part numbers | SPMXSM2600 605482719435 |
| Shipping weight | 48.70 ounces 1380.62 grams 3.04 pounds |
