Description

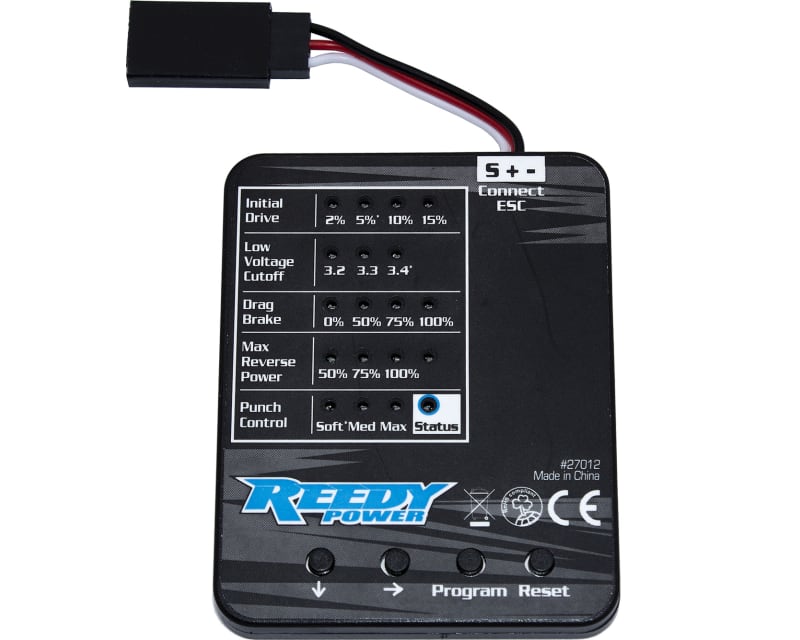

The pre-programmed default ESC settings work very well in most situations, but if you want access to additional settings for fine-tuning, you can do so using optional Program Card (ASC27034). The following settings can be changed using the Program Card:
Initial Drive: Throttle applied the moment the trigger is moved from the neutral position to the throttle range.
Low-Voltage Cutoff: The cell voltage at which the ESC will shut off to protect the battery.
Drag Brake: The brake force applied when the throttle trigger is returned to the neutral position.
Max Reverse Power: The maximum reverse speed allowed relative to the forward speed.
Punch Control: The aggressiveness of the application of throttle.
HEADER: Setting / Value
Initial Drive: 2%, 5%*, 10%, 15%
Low Voltage Cutoff (V/cell): 3.2, 3.3, 3.4*
Drag Brake: 0%, 50%, 75%, 100%*
Max Reverse Power: 50%, 75%*, 100%
Punch Control: Soft*, Medium, Strong
HEADER: *Default setting
This part fits the following other parts:
ASC27011 - Reedy SC480X Brushed Crawler ESC
Manufacturer information
Associated prefers to deal direct with customers on questions of warranty and returns. Please contact Associated directly regarding such issues. All warranties and guarantees, including missing items, are handled directly by the manufacturer of that item. Should there be any problem with a product, you (The Customer) will need to contact the manufacturer to obtain service. Manufacturer contact information is available upon request. We must be contacted for a return authorization number before returning items for any reason. We cannot accept returned items that have been opened or are not in their original sealed factory containers.
Compatible vehicles
Additional details
| Country of origin | Taiwan |
| Package dimensions | 5.00" × 3.25" × 0.35" 12.70 cm × 8.26 cm × 0.89 cm |
| Part numbers | ASC27034 784695270343 |
| Shipping weight | 0.90 ounces 25.51 grams 0.06 pounds |
