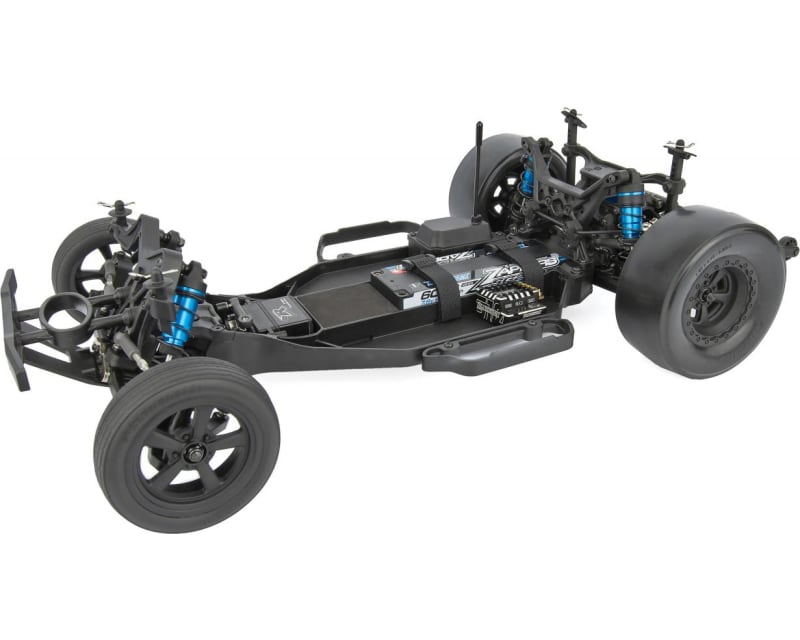

DR10 Drag Race Car Team Kit


Associated logo

Part number


Real-time inventory

7 in stockClick to refresh


Sale -$114.00


Product Summary:
User level: Kit, *requires additional parts/components
Mode: On-Road, *2WD
Scale: 1:10
Type: drag racing, *carpet/asphalt
Power: LiPo 2S-3S, NiMh /NiCd *6-7 cell
Radio req'd: 2 channels
Battery: Not included, user defined
Speed Controller: Not included
Motor: Not included - 540-550 size
Includes charger: No
The DR10 Team Kit features rear anti-roll bar, 26 precision ball bearings, a water-resistant enclosed receiver box, fully adjustable suspension, vertical ball ends for roll center adjustments, and 2.6:1 ratio gearbox with heavy-duty sealed gear differential and externally adjustable V2 slipper clutch.
-Three-position wheelie bar with optional large wheels
- light weight drag race inspired wheels
-Rear anti-roll bar
-Rear silicone diff fluid
-Durable and light weight aluminum top shaft
-Low center-of-gravity molded composite chassis with hook-and-loop battery straps that accommodate for both NiMh and 2/3s LiPo battery packs
-Durable front and rear body mounts
-Rear CVA driveshafts for more reliability
-Aluminum 12mm big bore coil-over shock absorbers
-2.6:1 ratio gearbox with heavy-duty sealed gear differential and externally adjustable V2 slipper clutch
-Rugged steel turnbuckles for adjustable camber and front toe-in
-Fully adjustable suspension geometry
-Vertical ball ends for roll center adjustments, front and rear
-Water-resistant, enclosed receiver box
-Metric hardware throughout
-26 precision ball bearings
(Tires, battery, and other components pictured are NOT included)
-540-size electric RC motor (#27452 Sonic 540-M4 Modified Motor 4.5)
-Electronic speed control (#27005 Blackbox 510R Competition ESC w/PROgrammer2)
-2-3 cell 7.4V-11.1V LiPo or 6-7cell NiMh battery pack (#27344 Zappers SG3 8200mAh 115C 7.6V Stick)
-Battery charger
-2-channel surface transmitter and receiver
-Steering servo (#27101 RT1508 Digital HV Hi-Torque Competition Servo)
-1:10 scale 2.2" / 3.0" rear tires and 2.2" front tires
-CA glue for tires and wheels
-1:10 scale Drag Racing (No-Prep) body (#71082 DR10 Reakt Drag Body, clear)
-Polycarbonate-specific spray paint for body, and body scissors

Manufacturer information

Associated logo


21062 Bake Parkway

Lake Forest, CA 92630-8853

Associated prefers to deal direct with customers on questions of warranty and returns. Please contact Associated directly regarding such issues. All warranties and guarantees, including missing items, are handled directly by the manufacturer of that item. Should there be any problem with a product, you (The Customer) will need to contact the manufacturer to obtain service. Manufacturer contact information is available upon request. We must be contacted for a return authorization number before returning items for any reason. We cannot accept returned items that have been opened or are not in their original sealed factory containers.

Alternate part numbers

Here are some alternate part numbers and product codes that you may find this part listed under on other sites:


Additional details

Shipping weight

58.20 ounces

1649.94 grams

3.64 pounds

Package dimensions

4.50 x 9.00 x 15.00
