DSMX SRXL2 Serial Receiver with Telemetry

SRXL2 Technology
Low Noise Amplifier - Helps Reduce Interference and Produce Extended Control Link Range
Small, light weight and Perfect for Heli, Multi-Rotor and FPV Enthusiasts
Wide Voltage Input Range (3.3v -8.4v)
Full Range Telemetry
Dual Diversity Antennas
Bind Button for Easy Binding - No Plug Required

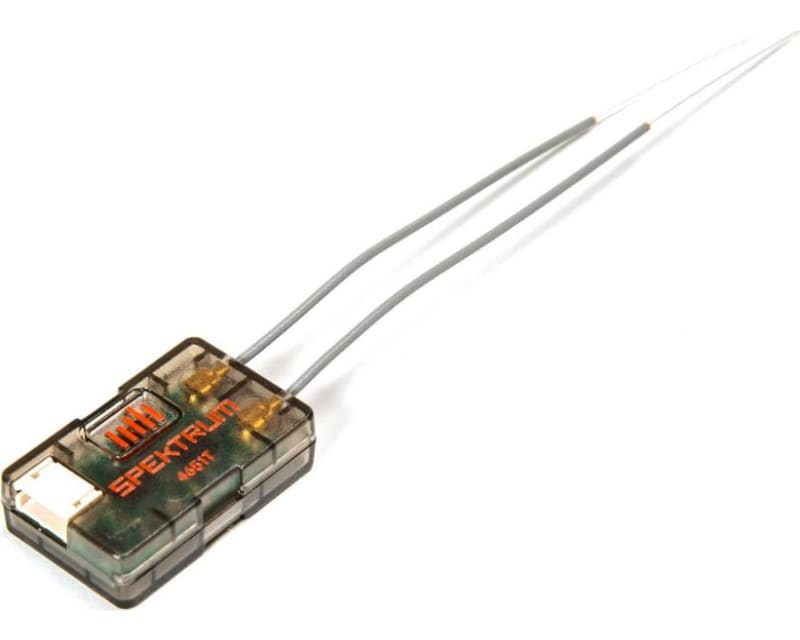

The SPM4651T DSMX SRXL2 Serial Micro Receiver takes the original SPM4649T receiver and adds more value, functionality, longer control and telemetry link range. The SPM4651T uses our feature-rich SRXL2 protocol to give pilots a blazing fast serial data connection with up to 20 channels. SRXL2 is a powerful and open source communication protocol developed by Spektrum. It greatly improves bi-directional communication between the radio system and flight controller for added telemetry functionality and flight control configuration right from the pilots Spektrum Transmitter*, all over one signal wire.
The SPM4651T is small, light weight, and ideal for Heli, Multi-Rotor and FPV Enthusiasts. It also features a simple bind button so pilots no longer need to carry a separate receiver or bind plug to bind. Dual antennas provide receiver diversity for solid signal and the long coax antennas help to provide maximum signal strength in all orientations for challenging installations where carbon fiber, metal and batteries shield the antenna. And with Spektrum DSMX 2.4GHz RF protocol the Spektrum SRXL2 Serial Telemetry Receiver provides remarkable range and interference free performance.
Antenna Length
3.9" (100mm)
Band
2.4GHz
Bind Method
Bind Button
Channels
20
Failsafe
No
Forward Programming
No
Input Voltage
3.3 - 8.4V
Integrated Variometer
No
Modulation
DSMX
Product Application
Air, Helicopters, Sailplanes, Drone
Product Height
0.31" (7.8mm)
Product Weight
0.14oz (4g)
Product Width
0.71" (18mm)
Programmable
Yes
Range
Full
Remote Receiver Ports
0
Rev Limiter
No
Serial Out
SRXL2
Technology
Standard
Telemetry
Integrated
Telemetry Range
Full
Water-Resistant
No
