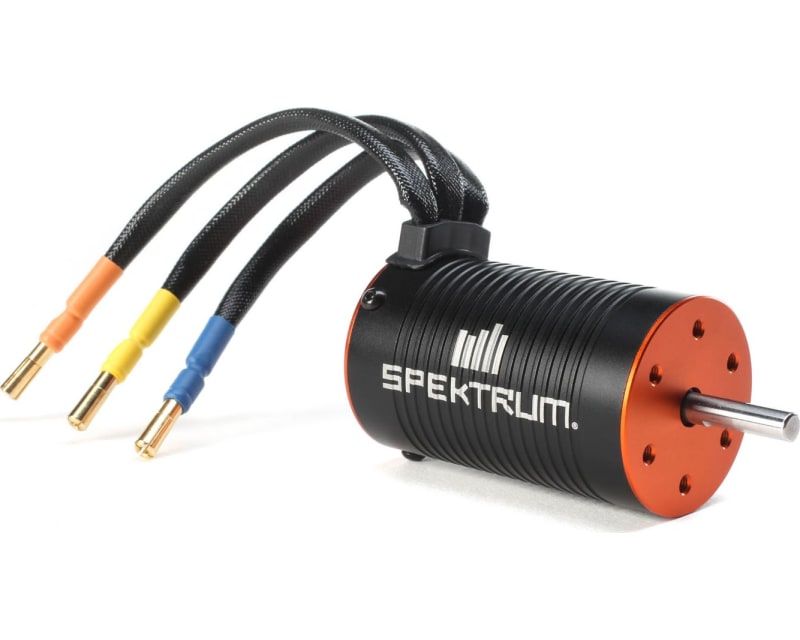

Firma 3660 3150Kv 4-Pole Brushless Motor: 5mm
Made by Spektrum · SPMXSM1000
Sale
-28%
$59.99
List price: $83.57
One left
Parts lists
Log in to add this part to a parts list to start planning your next project!
Description
Bearings or Bushings: Bearings
Cells: 2-3S LiPo, 4-9 cell NiMh
Connector Type: 4mm Bullet
Efficiency: 90%
Input Voltage: 6-13.2V
Maximum Continuous Current: 100A
Motor Type: brushless
Number of Poles: 4
Output: 1300W
Overall diameter: 1.4" (36mm)
Overall length: 2.4" (60mm)
RPM/Volt (Kv): 3150Kv
Recommended Speed Control: Spektrum Firma 130 Smart ESC
Shaft diameter: 3/16" (5mm)
Size: 3660
Weight: 8.7oz (247g)
Wire Gauge: 12 AWG
Cells: 2-3S LiPo, 4-9 cell NiMh
Connector Type: 4mm Bullet
Efficiency: 90%
Input Voltage: 6-13.2V
Maximum Continuous Current: 100A
Motor Type: brushless
Number of Poles: 4
Output: 1300W
Overall diameter: 1.4" (36mm)
Overall length: 2.4" (60mm)
RPM/Volt (Kv): 3150Kv
Recommended Speed Control: Spektrum Firma 130 Smart ESC
Shaft diameter: 3/16" (5mm)
Size: 3660
Weight: 8.7oz (247g)
Wire Gauge: 12 AWG
Manufacturer information
All warranties and guarantees, including missing items, are handled directly by the manufacturer of that item. Should there be any problem with a product, you (The Customer) will need to contact the manufacturer to obtain service. Manufacturer contact information is available upon request. We must be contacted for a return authorization number before returning items for any reason. We cannot accept returned items that have been opened or are not in their original sealed factory containers.
Additional details
| Country of origin | China |
| Package dimensions | 5.25" × 3.50" × 2.00" 13.34 cm × 8.89 cm × 5.08 cm |
| Part numbers | SPMXSM1000 605482428078 |
| Shipping weight | 3.00 ounces 85.05 grams 0.19 pounds |
