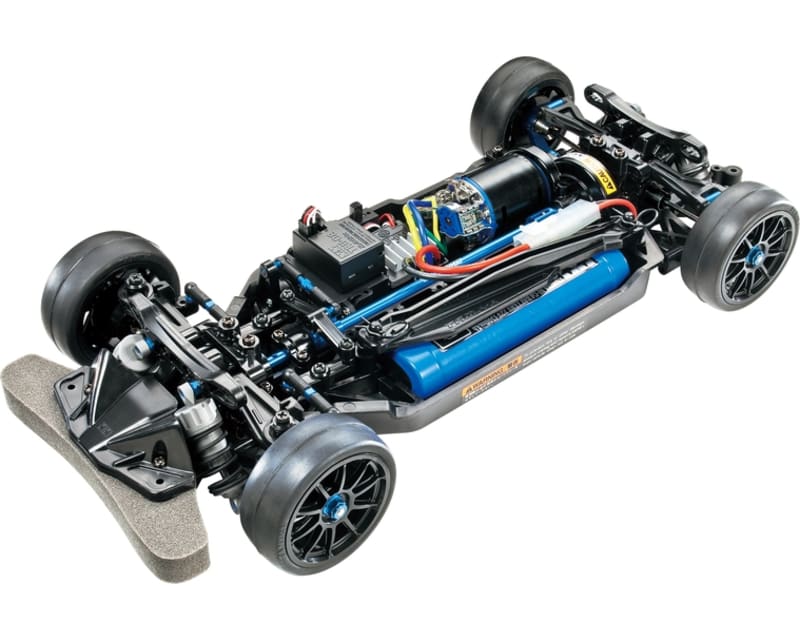

TT-02R Chassis 4WD Kit LIMITED EDITION
Made by Tamiya · TAM47326
Sale
-32%
$152.60
List price: $224.15
3 in stock
Parts lists
Log in to add this part to a parts list to start planning your next project!
Description
This refined, race-spec version of the TT-02 chassis features a wide range of option parts and newly-designed components to make it ready to race! The included racing spec parts include upgraded uprights, motor mount, shafts, joint cups and more, while the suspension is fitted with metal parts and CVA oil dampers. It retains the TT-02's versatility and easy-to-drive characteristics.
- Racing variant includes a range of option parts
- Upgraded drivetrain, motor mount, dampers, and more!
- Medium-narrow racing slicks (24mm width) with wheels included
- Full ball bearings included
- Inherits TT-02 versatility and drivability
- Aluminum uprights (3-degree toe-in)
- Aluminum motor mount
- 53159 4mm Aluminum Flange Lock Nut (Blue)
- 54247 3x18mm Aluminum Turnbuckle Shaft (Blue) x2
- 54501 TT-02 Aluminum Propeller Shaft
- 53642 5mm Aluminum Ball Connector (Blue)
- 54500 TT-02 High-Speed Gear Set (68T)
- 54502 TT-02 Aluminum Propeller Joint
- Front and rear metal drive shafts, wheel axles, and gearbox joints
- Urethane bumper
- Radio system (transmitter and receiver)
- Steering servo
- 7.2-7.4 volt battery pack & compatible charger
- Electronic Speed Control (ESC)
- Type 540 motor
- Touring car style body
- Tamiya PS paint
- Bearings: Includes full ball bearings
- Chassis Material: ABS Plastic
- Chassis Type: TT-02R
- Construction Type: Assembly Kit
- Differential Type: Gear
- Drive Type: 4WD
- Scale: 1/10
- Shock Damper: CVA Oil Filled
- Suspension: Fully Independent Double Wishbone
- Terrain Use: On-Road
description revised by: SN August 12, 2019
FEATURES:
- Ready to assemble electric powered radio control model kit- Racing variant includes a range of option parts
- Upgraded drivetrain, motor mount, dampers, and more!
- Medium-narrow racing slicks (24mm width) with wheels included
- Full ball bearings included
- Inherits TT-02 versatility and drivability
- Aluminum uprights (3-degree toe-in)
- Aluminum motor mount
- 53159 4mm Aluminum Flange Lock Nut (Blue)
- 54247 3x18mm Aluminum Turnbuckle Shaft (Blue) x2
- 54501 TT-02 Aluminum Propeller Shaft
- 53642 5mm Aluminum Ball Connector (Blue)
- 54500 TT-02 High-Speed Gear Set (68T)
- 54502 TT-02 Aluminum Propeller Joint
- Front and rear metal drive shafts, wheel axles, and gearbox joints
- Urethane bumper
YOU WILL RECEIVE:
- One (1) car kit, as describedREQUIREMENTS:
- Assembly- Radio system (transmitter and receiver)
- Steering servo
- 7.2-7.4 volt battery pack & compatible charger
- Electronic Speed Control (ESC)
- Type 540 motor
- Touring car style body
- Tamiya PS paint
SPECIFICATIONS:
- Adjustable Gear Ratio: Yes- Bearings: Includes full ball bearings
- Chassis Material: ABS Plastic
- Chassis Type: TT-02R
- Construction Type: Assembly Kit
- Differential Type: Gear
- Drive Type: 4WD
- Scale: 1/10
- Shock Damper: CVA Oil Filled
- Suspension: Fully Independent Double Wishbone
- Terrain Use: On-Road
description revised by: SN August 12, 2019
Manufacturer information
All warranties and guarantees, including missing items, are handled directly by the manufacturer of that item. Should there be any problem with a product, you (The Customer) will need to contact the manufacturer to obtain service. Manufacturer contact information is available upon request. We must be contacted for a return authorization number before returning items for any reason. We cannot accept returned items that have been opened or are not in their original sealed factory containers.
Additional details
| Country of origin | Japan |
| Package dimensions | 18.00" × 8.50" × 5.00" 45.72 cm × 21.59 cm × 12.70 cm |
| Part numbers | TAM47326 4950344473267 |
| Shipping weight | 56.90 ounces 1613.09 grams 3.56 pounds |
