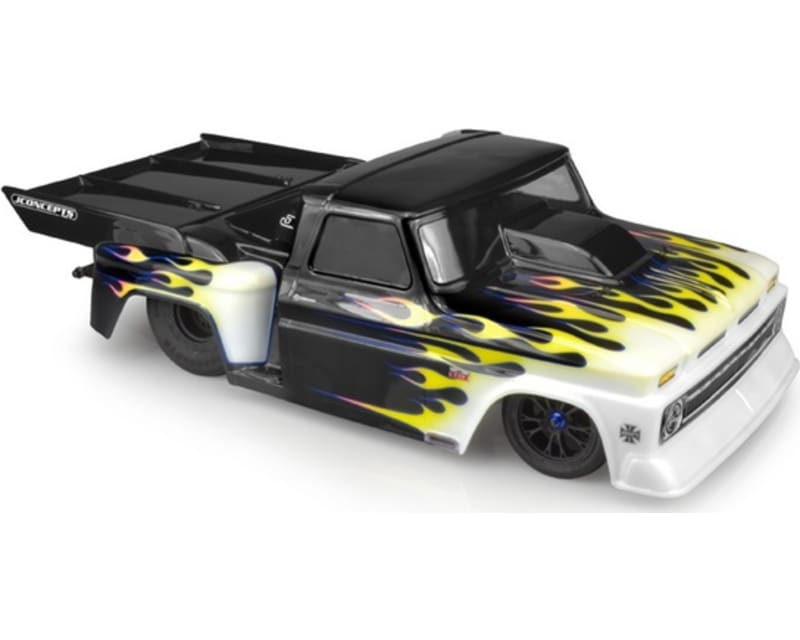

Jco0373 1966 Chevy C10 Step-Side W/ Ultra Rear Wing Clear

Build notes
All additional pieces need to be carefully trimmed with quality curved scissors and smoothly sanded before painting. Plan attachment points and paint all materials before assembly. Add included window mask to the inside of the shell and spray only polycarbonate approved paint to the inside of the body in light coats. Three to four light coats of paint should be used to cover the body, roll-bar and wing assembly and let to dry according to paint can instructions.
The rear roll-bar section and lower rear wing support is mounted carefully to the tailgate and fender wells using double sided tape or shoe goo (not included). The upper wing section also attaches with double sided tape (not included) sets down and provides the look and finishing touch to the 1966 classic.
Specifications
The 1966 Chevy C10 measures a 13" wheelbase and the inside dimensions of the body are 11.75" front and 12.00" rear width. The body is built for a 2WD SCT wheelbase length and fits standard SCT width chassis layouts and suspension using drag racing (#3193 front tire, #3194 rear tire & #3387 wheels). It's helpful to plan your build, take measurements and modify your platform to fit inside the boundaries of the Chevy body.
1966 Chevy C10 faithful representation
Multi-piece rear wing for street elimination competition
Rear roll-bar option for appearance versatility
Fits an assortment of standard SCT length & width trucks with drag race tires / wheels
Decal sheet with Chevy C10, Speed Shop and JConcepts badges.
Officially licensed by Chevy to JConcepts.
