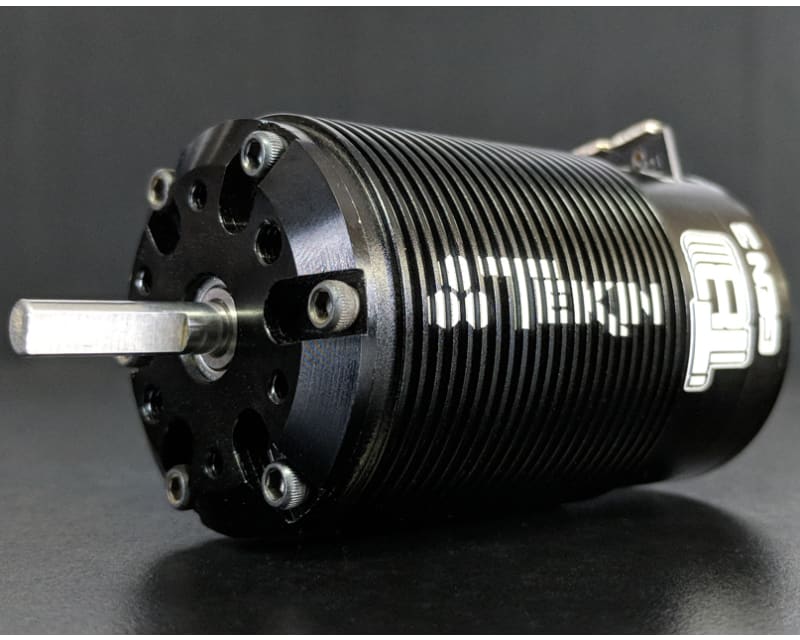

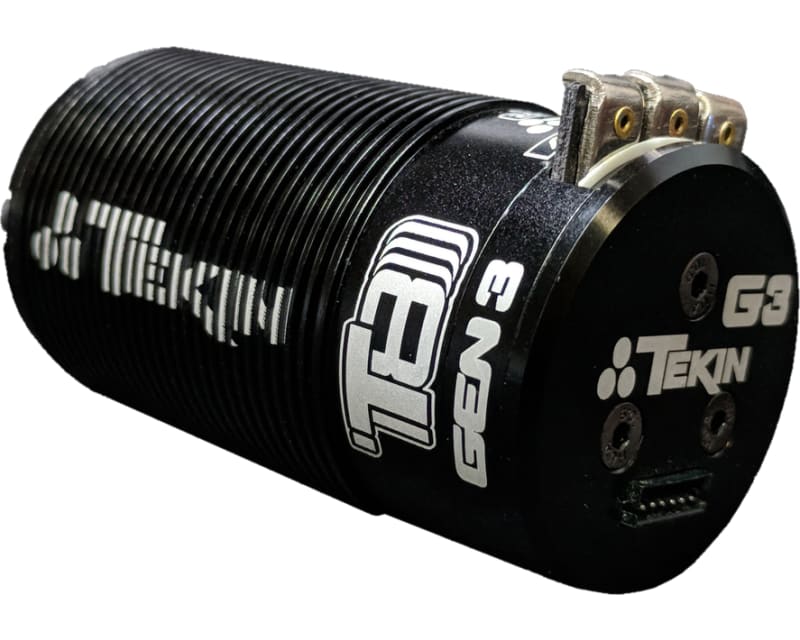

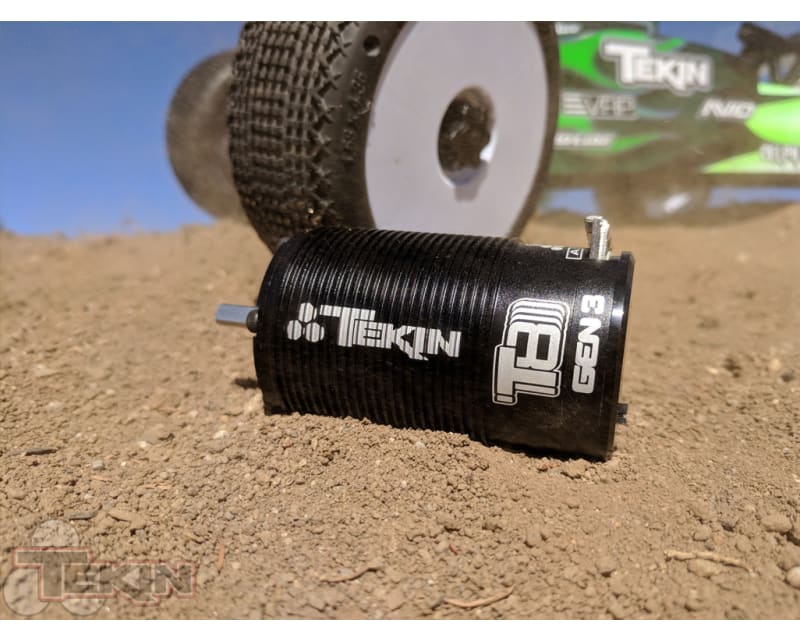

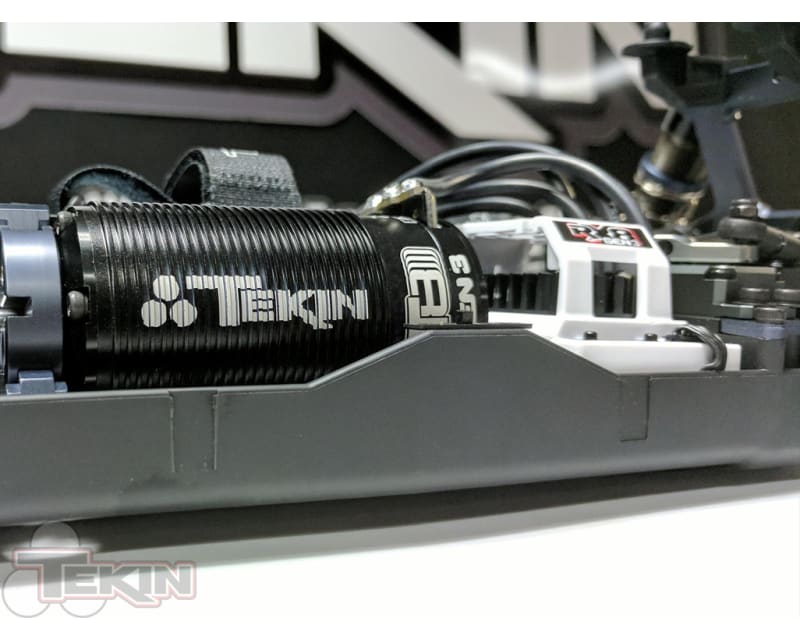

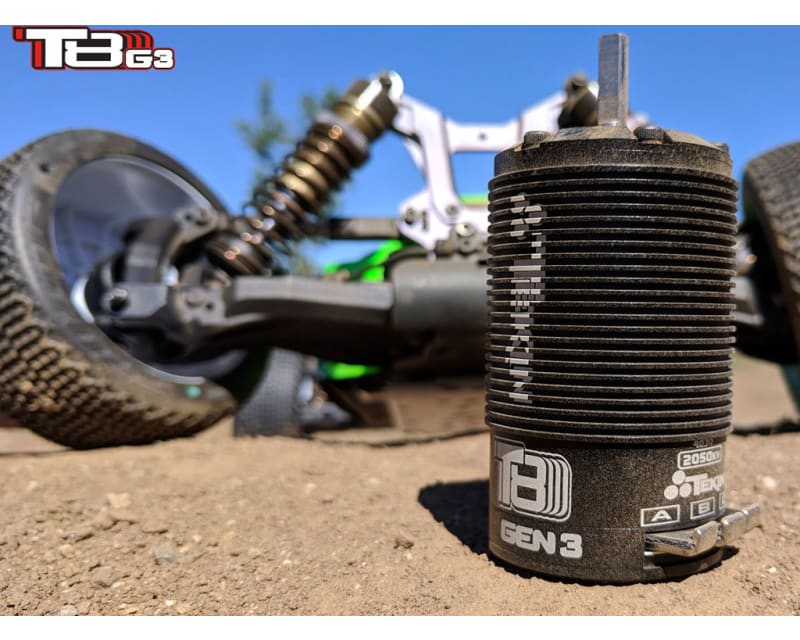

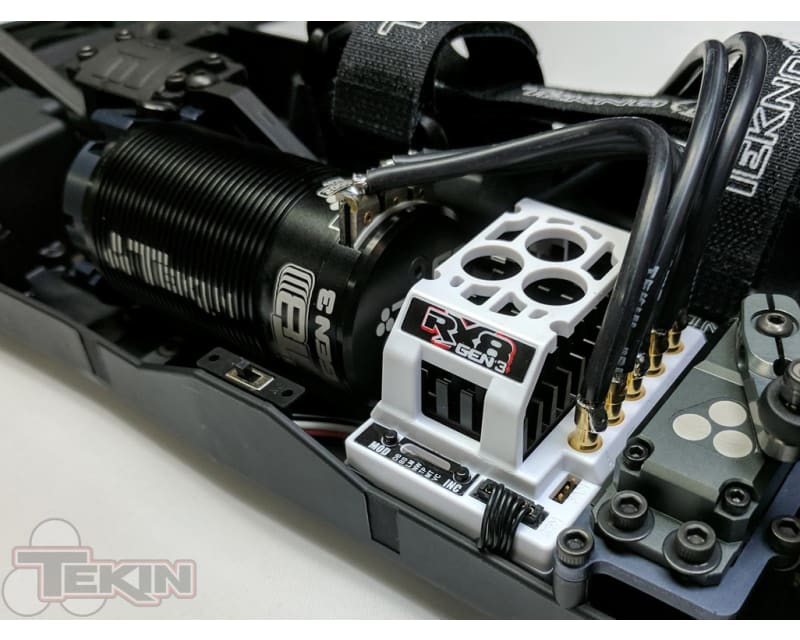

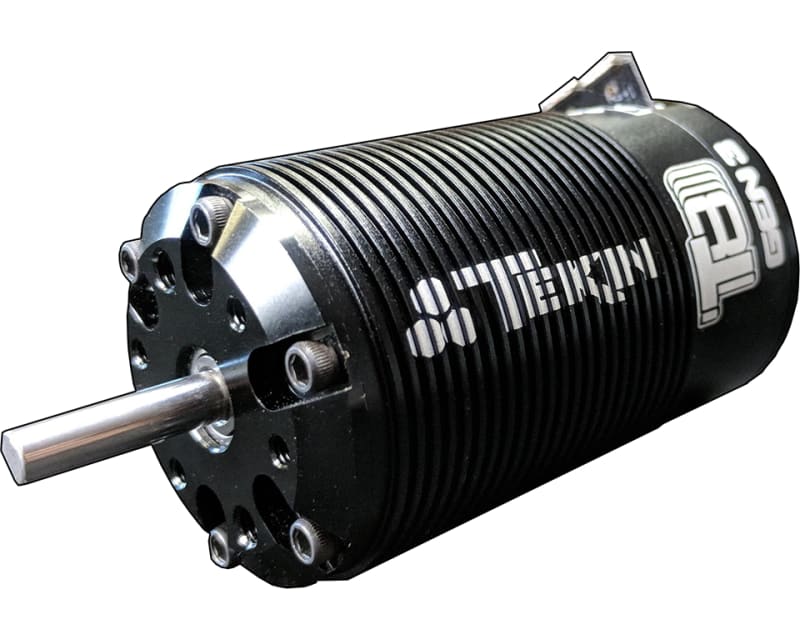

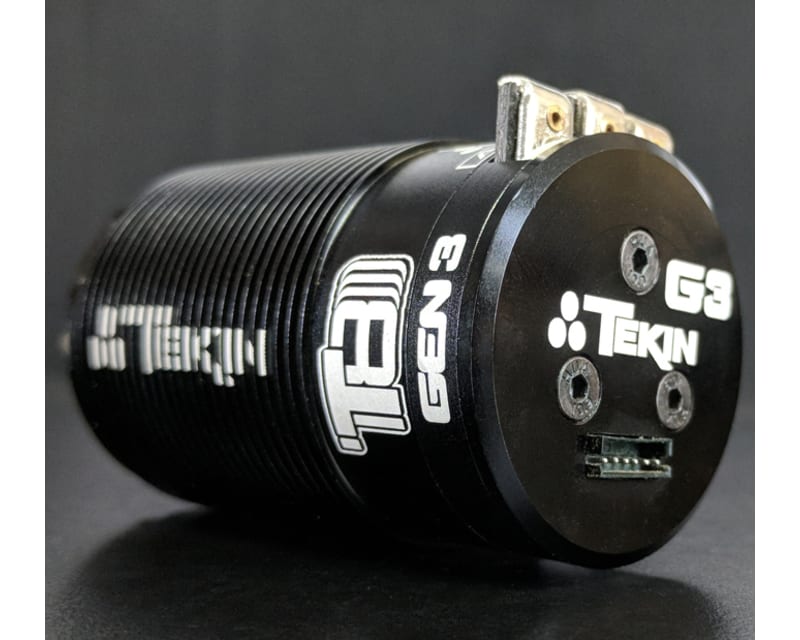

2250kv 1/8 T8 G3 4030 Truggy brushless Motor Sensored/Sensorless

Parts lists

Log in to add this part to a parts list to start planning your next project!

Description

Tekin's T8 GEN3 racing motors are racing performance defined. With a stronger rotor, new stack features and lower resistance the T8 GEN3 motors are a versatile, unmatched and advanced power delivery system. Relentless amounts of torque and power are at your disposal with industry-leading RC motor technology. Coupled with an RX8 GEN3 utilizing Tekin's D2 Dual Drive Technology, the T8 GEN3 packs efficiency and precise control through the entire RPM range. Maintain Pro- level control of your chassis no matter the situation on the track with a T8 GEN3. Pair the T8 GEN3 with an RX8 GEN3 Speed Control for the ultimate in 1:8 scale racing power systems.

FEATURES:

- Spec'd for: truggies
- 4 Pole 12 Slot High Torque Motor Design
- 1:8 Scale Chassis Specific
- ROAR Legal
- CNC Machined 6061-T6 Billet Aluminum Ribbed Heat Sink Can
- Neodymium Sintered Magnets
- Precision Engineered for Maximum Energy Conversion
- High Purity Copper Windings Maximize Conductivity and Efficiency
- Low Resistance, High Power Solder Tabs
- Dual-Plug Sensor Wire Harness for all Sensored and Sensorless systems
- Anodized End-bell plates maximize corrosion and wear resistance
- High RPM ABEC-5 Precision Bearings
- Oversized Front Bearing adds Durability
- Rebuild-able Design
- Designed to be paired with the RX8 GEN3 ESC

YOU WILL RECEIVE:

- One (1) 2250kV T8 G3 1/8 scale truggy race brushless motor

SPECIFICATIONS:

- Voltage limit: 2650kV - 4S LiPo; 2250kV - 4S LiPo; 2050kV - 4S LiPo; 2000kV - 4S LiPo; 1900kV - 4S LiPo; 1700kV - 5S LiPo; 1550kV - 5S LiPo; 1400kV - 6S LiPo; 1350kV - 6S LiPo
- Weight: 4030 Buggy 11oz / 311g, 4038 Truggy 13oz / 368
- Shaft size: 5mm (.196") x 19mm
- Motor diameter: 40mm (1.57"), 42mm (1.65") including fins
- Motor length: 4030 Buggy 69mm (2.71"), 4038 Truggy 77mm (3.03")
- Front bearings: 5x16x5mm
- Rear bearings: 5x11x5mm
- Rotor size: 18.5mm
- Rebuildable: Yes

COMMENTS:

- Available Tekin systems (motor & ESC):
- Buggy:
- TT2330 - RX8 GEN3 + T8 GEN3 2650kV
- TT2331 - RX8 GEN3 + T8 GEN3 2050kV
- TT2332 - RX8 GEN3 + T8 GEN3 1900kV
- TT2333 - RX8 GEN3 + T8 GEN3 1700kV
- TT2334 - RX8 GEN3 + T8 GEN3 1400kV
- Truggy:
- TT2335 - RX8 GEN3 + T8 GEN3 2250kV
- TT2336 - RX8 GEN3 + T8 GEN3 2000kV
- TT2337 - RX8 GEN3 + T8 GEN3 1700kV
- TT2338 - RX8 GEN3 + T8 GEN3 1550kV
- TT2339 - RX8 GEN3 + T8 GEN3 1350kV

description revised by: SN October 23, 2019
