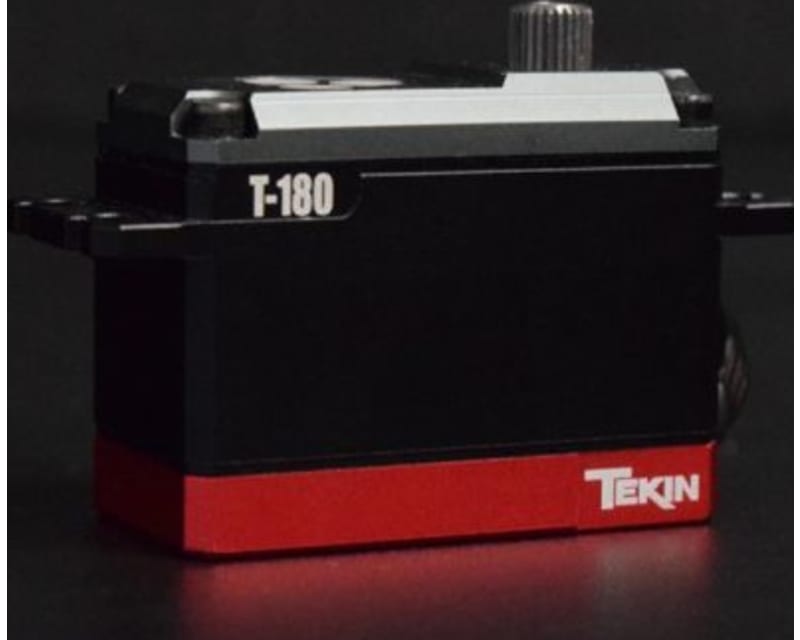

T180 Servo Lo Profile Torque Vector AL Arm

Big Torque in a small housing, this T-180 Lo-Pro Servo gives you plenty of options on the track. Designed to give you the industry's highest per degree resolution steering and plenty of speed to keep that chassis where you want it. Full Metal Gear set, All Aluminum Housing, Digital Position Encoding and loads of Torque, this servo keeps you in control. Fine-tune your setup with and extensive set of adjustments via Tekin's HotWire PC Interface.
Digital Magnetic Position Encoder (DPE)
Low Profile Design
Specifically Designed for 1:10 Scale Applications
Included Aluminum 20mm Vector Servo Arm
Full Aluminum Servo Housing
Element Proof Design*
Precision Cut Full Metal Gears
ABEC5 Ball Bearings
High Voltage Capable
High Torque Coreless Motor
25T Output Spline
Programmable via HotWire PC Interface
Overload Protection Technology
Thermal Protection Circuitry
Low Voltage Alarm**
Quiet, Efficient, Cool Operation
HDAC: High Density Copper PCB's
*Tekin Element Proof products are designed to withstand water, snow and mud. Not intended for operation while submerged in liquid.
**requires HotWire sold separately
HotWire Programmable
Feel - Mild to Aggressive
Speed Limit
Torque (0-100%)
Torque Delay
Direction - Normal / Reverse
Center Point
Travel
Soft Starting Speed & Torque
Max Temp Alarm
Low Voltage Alarm
Over Voltage Alarm
Bind Relief
Fail Safe Speed and Position
Set Custom Servo Name
Torque (@8.4 - 7.4 - 6.0V): 212 - 194 - 165 oz/in, 15.3 - 14.0 - 11.9 kg/cm
Dynamic Torque (@8.4 - 7.4 - 6.0V): 350 - 323 - 280 oz/in, 25.2 - 23.0 - 20.2 kg/cm
Speed (@8.4 - 7.4 - 6.0V): 0.06 - 0.07 - 0.08 sec/60
Input Voltage: 4.8V-8.4V
Gear Set: Full Metal
1.57 x 0.79 x 1.06in / 40 x 20 x 27mm
Mounting Height (Base to Mount Tabs): .72in / 18.4mm
Weight: 1.92oz / 54.6g
