Over/Underdrive Transfer Case:TF2 and Gelande II

1.47 / 1 Gearing
.8 Mod Gears
Hardened Steel Gears
Cast Casing
Wide Gears
Has same mounting as our popular Hammer Transfer Case
Output Shaft OD: 0.19in / 5.0mm
Total Weight: 6.21oz / 176g

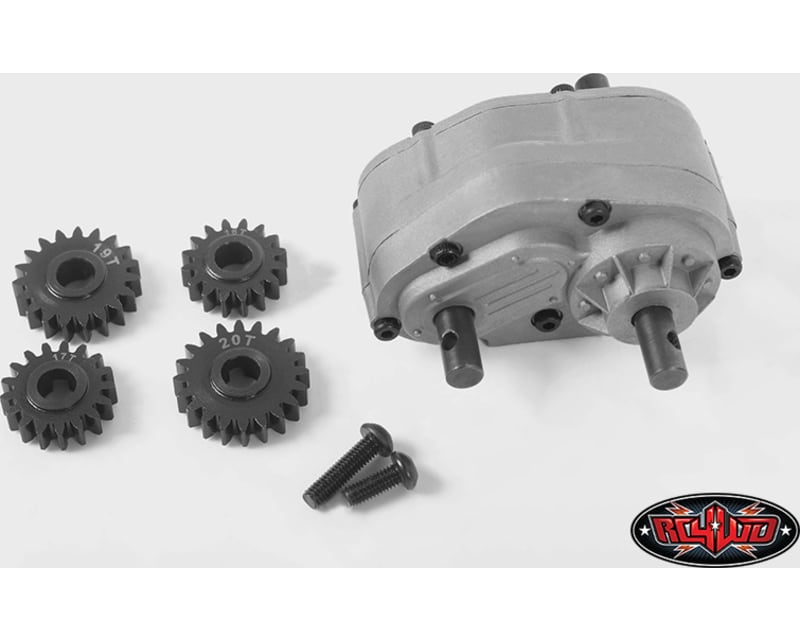

1x RC4WD Over/Under Drive Transfer Case
1x 16T Gear
1x 17T Gear
1x 19T Gear
1x 20T Gear
1x M3 x 6mm Steel Button Head Cap Screws (Black)
1x M3 x 10mm Steel Button Head Cap Screws (Black)
There are 6 gearing options available:
15T/22T (Stock) : 1 : 1.47 Gear Ratio - Front axle goes same speed as rear
To change the gear ratio remove the cover on the side with the two shafts.
The following are the gear combinations of Rear Output to Front Output:
17T / 19T combo = 1:1.27 front axle will rotate 27% faster than rear
16T / 20T combo = 1:1.33 front axle will rotate 33% faster than rear
19T / 17T combo = 1:1.42 front axle will rotate 42% faster than rear
20T / 17T combo = 1:1.57 front axle will rotate 57% faster than rear
20T / 16T combo = 1:1.67 front axle will rotate 67% faster than rear
