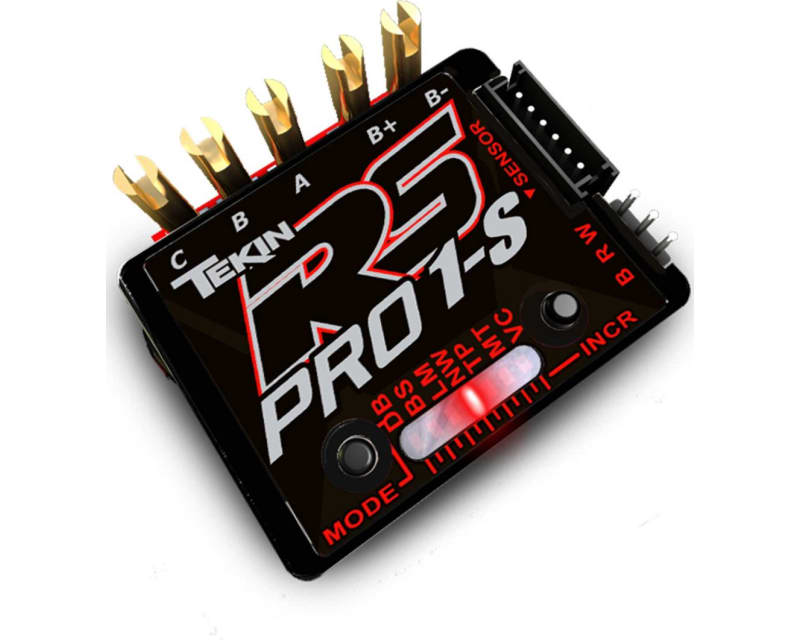

RS Pro 1S Black Edition BL Sensored/Sensorless ESC

This RS PRO Black Edition utilizes both hardware and software advances recently developed for Tekin's latest ESC lineup. With its industry-leading Ultra Low Resistance you can be sure that your motor is getting all the power you can give it. More power, smooth control and reliability you can count on: the RS PRO Black Edition is engineered for performance. Capabilities such as Data Logging and HotWire 3.0 Bluetooth Connectivity allow you fine tune your system and gain an advantage over the competition.
The RS PRO 1S Black Edition was specifically designed for 1S Spec Classes and Drag Racing to take full advantage of the ULR circuit design. ULR FlexWire is included with every Black Edition ESC. Pair the RS PROs with a SPEC-R motor for the ultimate Ultra Low Resistance system.
Bluetooth Wireless Mobile and USB PC Tuning with the HotWire 3.0
ULR: Ultra Low Resistance Design
Double Stack FET Boards
Specifically Designed for Spec & Stock Racing
RS PRO 1-S equipped with built-in Booster
3rd Channel Input for On-The-Fly Drag Brake Adjustments <>
QuickTune One Touch Programming
Adjustable Torque Control *
Adjustable Throttle and Brake Frequencies *
High Voltage Programmable BEC *
HotWire Programming Port *
Data Logging Capability *
On-Board Sensor Checker
On-Board Temperature Indicator
ESC Self Diagnostics with Error Codes
Fully Proportional Forward/Brake/Reverse
brushless and Brushed Motor Drive
Sensored or Sensorless Operation
LiPo Safe with Custom Voltage Cutoffs
Sensor Plug for Precise Commutation
light weight Chassis Design
HDAC: High Density Copper PCB's
Ultra-smooth and Precise Throttle and Braking Control
* requires HotWire sold separately.
Controls: Forward/Brake/Reverse
Input Voltage: RS PRO 1-S: 1S LiPo ONLY / 4S NiMh -NiCD
Motor Limit brushless Mode: 1S - 2.5T 2-pole 36mm Can
Motor Limit Brushed Mode: 1S - 6 Turn 36mm Can
Max Current: 560amps per phase**
ON Resistance: .000096ohm**
BEC: 6.0v / 7.4v @ 5.5amps
1.0 x 1.3 x .68" / 24.5 x 33 x 17.25mm
Weight: 1.23oz / 35g
**per manufacturer spec
ON BOARD QuickTune PROGRAMMABLE
DB - Drag Brake (13 steps)
BS - Brake Strength (13 steps)
LM - Torque Limiter (7 steps)
NW - Neutral Width (13 steps)
TP - Timing Profiles 5 Preset - 2 Custom*
MT - Motor Type
brushless Modes - FWD Only / FWD-REV / FWD-REV Delay / FWD-REV Delay REV Motor Direction
Brushed Modes - FWD Only / FWD-REV / FWD-REV Delay
VC - Voltage Cutoff : RS PRO 1-S - 1S, Custom
