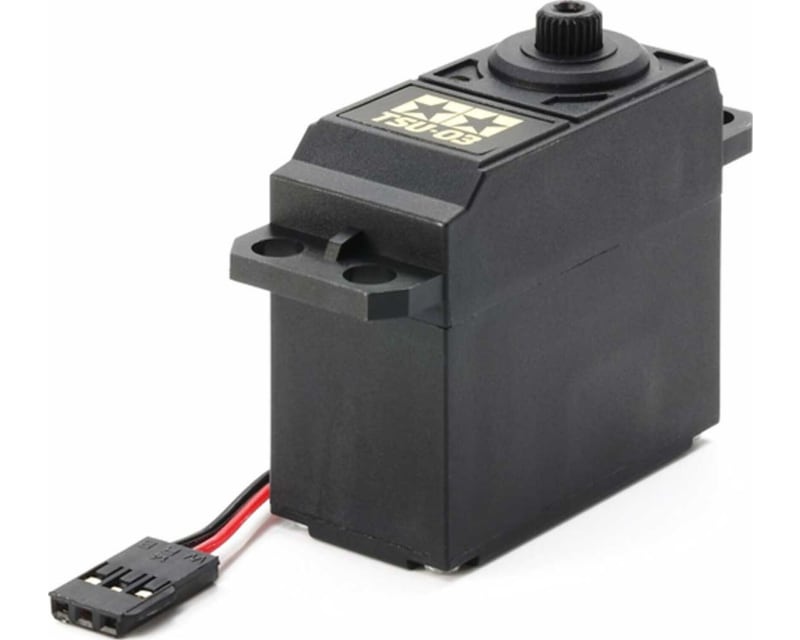

RC Tsu-03 Servo
Made by Tamiya · TAM10318
Original price: $35.42 · Sale: $27.20
Description
Tamiya TSU-03 Servo (10318) is Tamiya's basic analog servo, the standard unit supplied with many of Tamiya's factory-assembled models, sold separately as a replacement. It suits 1:10 scale R/C car steering, and works as a steering or shift servo on 1:14 scale R/C tractor trucks. Output is 3.5 kg-cm of torque and 0.17 sec/60 degrees at 6V, over a 45 degree range to each side including trim, in a standard size 40.0 x 20.0 x 37.0mm case at 37g, running on 4.8 to 6.0V.
* Torque 3.5 kg-cm at 6V
* Speed 0.17 sec/60 degrees at 6V
* Range 45 degrees to each side, including trim range
* Operating voltage 4.8 to 6.0V
* Dimensions 40.0 x 20.0 x 37.0mm, weight 37g
* For 1:10 car steering, or steering and shifting on 1:14 tractor trucks
* Tamiya AO (after-service) replacement part
* 4.8 to 6.0V receiver power
FEATURES:
* Basic analog servo, standard size* Torque 3.5 kg-cm at 6V
* Speed 0.17 sec/60 degrees at 6V
* Range 45 degrees to each side, including trim range
* Operating voltage 4.8 to 6.0V
* Dimensions 40.0 x 20.0 x 37.0mm, weight 37g
* For 1:10 car steering, or steering and shifting on 1:14 tractor trucks
* Tamiya AO (after-service) replacement part
YOU WILL RECEIVE:
* 1 x TSU-03 servoREQUIREMENTS:
* Receiver with a free channel* 4.8 to 6.0V receiver power
Manufacturer Information
All warranties and guarantees, including missing items, are handled directly by the manufacturer of that item. Should there be any problem with a product, you (The Customer) will need to contact the manufacturer to obtain service. Manufacturer contact information is available upon request. We must be contacted for a return authorization number before returning items for any reason. We cannot accept returned items that have been opened or are not in their original sealed factory containers.
Additional Details
| Package dimensions | 2.00" × 3.00" × 4.50" 5.08 cm × 7.62 cm × 11.43 cm |
| Part numbers | TAM10318 4950344103188 |
| Shipping weight | 1.44 ounces 40.82 grams 0.09 pounds |
