LiPo 5S 18.5V 5000mAh 30C Star Plug

**Additional Technical Info Will Be Added When It Becomes Available.

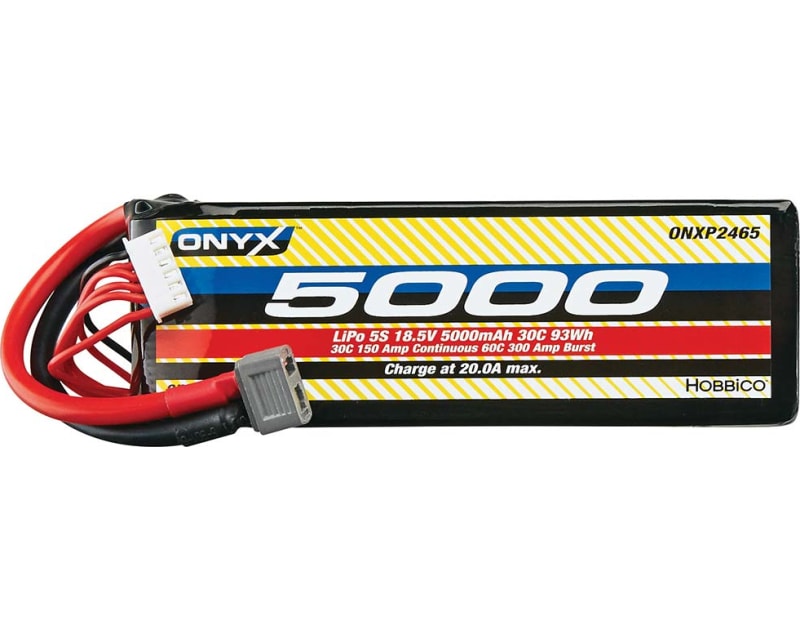

This is the Onyx LiPo 5S 18.5V 5000mAh 30C Battery with Star Connector.

light weight and economical for sport use
Ultrasonically welded cell tabs and balancing wires
2-year limited warranty-Onyx brand batteries are warranted to be
free from defects in materials and workmanship for a period of two
years from the date of purchase. During the first twelve months,
ONYX will, at our discretion, repair or replace without service
charge any product deemed inoperable due to those causes.
After the first full year of warranty coverage ONYX will provide
extended warranty coverage for another 12 months covering only
defects in materials and workmanship. Extended coverage is limited
and does not cover problems caused by abuse, misuse, and improper
maintenance, failure to follow instructions, ordinary wear, or use
past the battery s maximum rated number of cycles.

Onyx LiPo 5S 18.5V 5000mAh 30C Battery with Star Connector, and
JST-XH Balance Connector

LiPo compatible charger
LiPo charging bag

Voltage Rating: 18.5V
Rated Capacity: 5000mAh
Discharge Rating: 30C continuous

5.2 x 1.8 x 0.79" (132 x 45 x 20mm)
Weight:
Discharge Lead/Connectors:
AWG Wires, Star Plug
Balancing Connector: JST-XH
Watt Hours:

ALWAYS use a LiPo-approved Charger and Cell Balancer
NEVER Charge over 4.2V per cell
NEVER Charge at currents greater than 4C
NEVER Trickle Charge
NEVER allow to Discharge below 2.5V per cell
NEVER disassemble or modify pack wiring in any way or puncture cells
NEVER place on combustible materials or leave unattended during
charging
ALWAYS Charge in a fireproof location
ALWAYS set charger's output volts to match battery volts
ALWAYS keep out of reach of children
All weights include wire leads and plugs
All weights +/- 1 g
All measurements +/- 1 mm
jxs 01/22/18
&
