Description
**Additional Technical Info Will Be Added When It Becomes Available. **

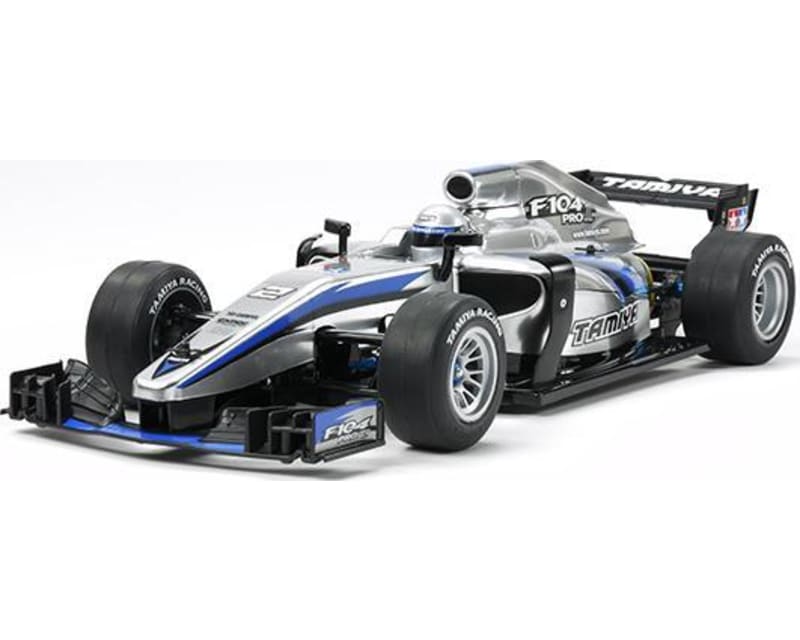

This is the 1/10 scale, electric powered, radio controlled
F104 Pro II On-Road Racing Car kit.
(2mm) thick carbon fiber upper deck, new lower deck, inline battery
position
Drive: Two wheel direct with carbon drive shaft
Motor: 540 type
Differential: Ball type with aluminum housing
Ball Bearings: Full set
Body: Clear untrimmed polycarbonate with separate rear wing, new
design based on the 2017 F1 car bodywork and wing dimensions
Steering: Isometric steering rods links with longitudinally mounted
steering servo position
Front Suspension: Independent coil spring, camber can be adjusted by
changing upper mount attachment direction
Rear Suspension: T-bar with carbon friction plate and TRF oil-
filled shock
Tires: Semi-pneumatic synthetic rubber
Wheels:
Caster: Adjustable, caster/toe-in refers to the angle of the front
suspension when viewed from the side of the car in relation to the
chassis
Camber: Non-adjustable
module spur gear, decals, body, shock oil, instruction manual,
oil-filled shock and 25 tooth pinion gear
Radio Batteries: Eight AA
Battery: 6-cell stick pack with Tamiya type connector
Battery Charger: Peak type recommended
Building and track equipment
length: 17.3" (440mm)
width: 7.1" (180mm)
height: 3.5" (88mm)
Wheelbase: 10.6" (270mm)
Tread: Front, 5.9" (150mm), Rear, 5.7" (145mm) measurement at center
of wheels, side-to-side
Body-
length:
width:
height:
Qty. Size Location Qty. Bearing Set
2 6x10mm Rear Shaft 1 DTXC1561
2 8x12mm Ball Diff 1 DTXC1581
1 5x11mm Diff Housing 1 DTXC1547
4 5x10mm Front Wheels 2 DTXC1535
4 5x10mm Rear Wheels 2 DTXC1535
jxs 12/27/17
ACCESSORIES
This is the 1/10 scale, electric powered, radio controlled
F104 Pro II On-Road Racing Car kit.
FEATURES:
Chassis: PRO specification 0.12" (3.2mm) thick carbon fiber, 0.079" (2mm) thick carbon fiber upper deck, new lower deck, inline battery
position
Drive: Two wheel direct with carbon drive shaft
Motor: 540 type
Differential: Ball type with aluminum housing
Ball Bearings: Full set
Body: Clear untrimmed polycarbonate with separate rear wing, new
design based on the 2017 F1 car bodywork and wing dimensions
Steering: Isometric steering rods links with longitudinally mounted
steering servo position
Front Suspension: Independent coil spring, camber can be adjusted by
changing upper mount attachment direction
Rear Suspension: T-bar with carbon friction plate and TRF oil-
filled shock
Tires: Semi-pneumatic synthetic rubber
Wheels:
Caster: Adjustable, caster/toe-in refers to the angle of the front
suspension when viewed from the side of the car in relation to the
chassis
Camber: Non-adjustable
YOU WILL RECEIVE:
Tamiya F104 Pro On-Road Racing Car kit, tires, wheels, motor, 04 module spur gear, decals, body, shock oil, instruction manual,
oil-filled shock and 25 tooth pinion gear
REQUIREMENTS:
Radio: 2-channel, small ESC and receiver recommended, standard servo Radio Batteries: Eight AA
Battery: 6-cell stick pack with Tamiya type connector
Battery Charger: Peak type recommended
Building and track equipment
SPECIFICATIONS:
Vehicle- length: 17.3" (440mm)
width: 7.1" (180mm)
height: 3.5" (88mm)
Wheelbase: 10.6" (270mm)
Tread: Front, 5.9" (150mm), Rear, 5.7" (145mm) measurement at center
of wheels, side-to-side
Body-
length:
width:
height:
COMMENTS:
For Replacement Ball Bearings use: Qty. Size Location Qty. Bearing Set
2 6x10mm Rear Shaft 1 DTXC1561
2 8x12mm Ball Diff 1 DTXC1581
1 5x11mm Diff Housing 1 DTXC1547
4 5x10mm Front Wheels 2 DTXC1535
4 5x10mm Rear Wheels 2 DTXC1535
jxs 12/27/17
ACCESSORIES
Manufacturer information
All warranties and guarantees, including missing items, are handled directly by the manufacturer of that item. Should there be any problem with a product, you (The Customer) will need to contact the manufacturer to obtain service. Manufacturer contact information is available upon request. We must be contacted for a return authorization number before returning items for any reason. We cannot accept returned items that have been opened or are not in their original sealed factory containers.
Additional details
| Country of origin | Japan |
| Package dimensions | 5.00" × 8.50" × 18.00" 12.70 cm × 21.59 cm × 45.72 cm |
| Part numbers | TAM58652 TAMC8652 4950344586523 |
| Shipping weight | 53.40 ounces 1513.86 grams 3.34 pounds |
