RC M-07 Concept Chassis Kit

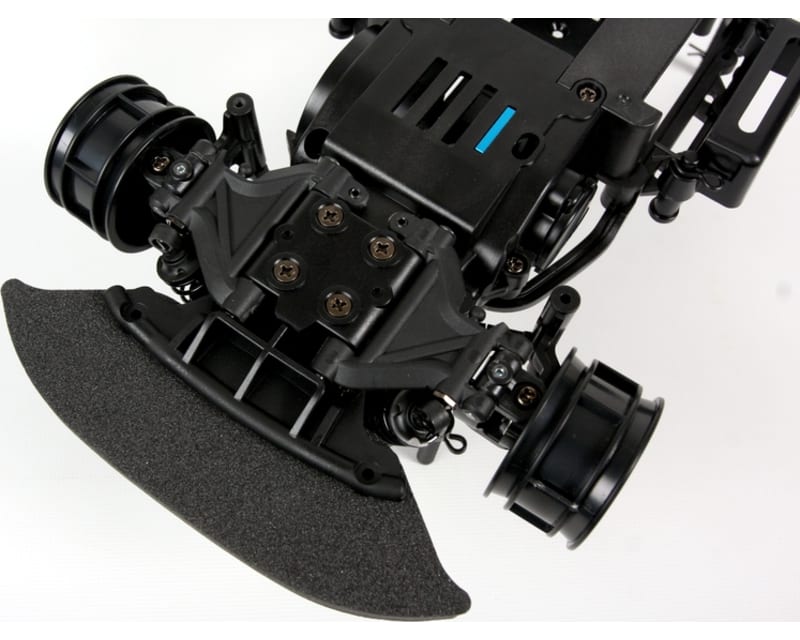

Tamiya's M-Chassis platform has been around since the early 1990's. This M-07 CONCEPT is a revolution in the world of the M-size chassis and not just an evolution. Designed by the same designer who brought the TA-07 Pro Touring Car Chassis to life, this chassis takes a number of design cues from Tamiya's touring car models and features a largely changed design from its numeric predecessors. The goal set forth with this new platform; ease of maintenance and responsive driving characteristics, all of which were attained during its development. The features incorporated into the M-07 CONCEPT make it a truly rewarding model for those who like to experience the excitement of R/C racing. This high-performance front-wheel drive R/C chassis assembly kit is constructed around a rigid monocoque with lower deck and upper frame sections. It offers responsive drive characteristics and fuss-free maintenance of parts such as the easy-access differential, which can be removed from the underside with minimal disassembly. C. V. A. (Constant Volume Adjustable) oil shock-damped 4-wheel double wishbone suspension features dedicated long arms and steering linkage components for a range of setup options. A silky-smooth drivetrain utilizes full ball bearings, oil-filled gear differential unit and universal drive shafts. It can be assembled with a 225mm (M) or 239mm (L) wheelbase, making it compatible with appropriately-sized existing Tamiya M-chassis body parts sets.

- Monocoque frame chassis (with detachable lower section)
- Long suspension arms
- CVA oil dampers
- Full ball bearings
- Gear differential unit
- Universal drive shafts
- Hi-torque servo saver

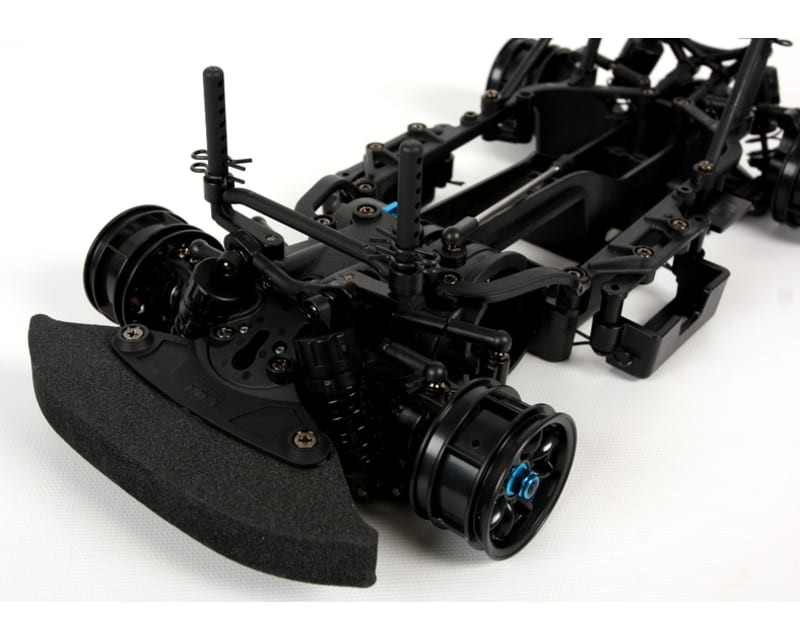

- The core of the chassis is a 1-piece monocoque with integrated upper frame elements similar to the TA-07 Pro. It is designed to offer excellent rigidity with easy maintenance

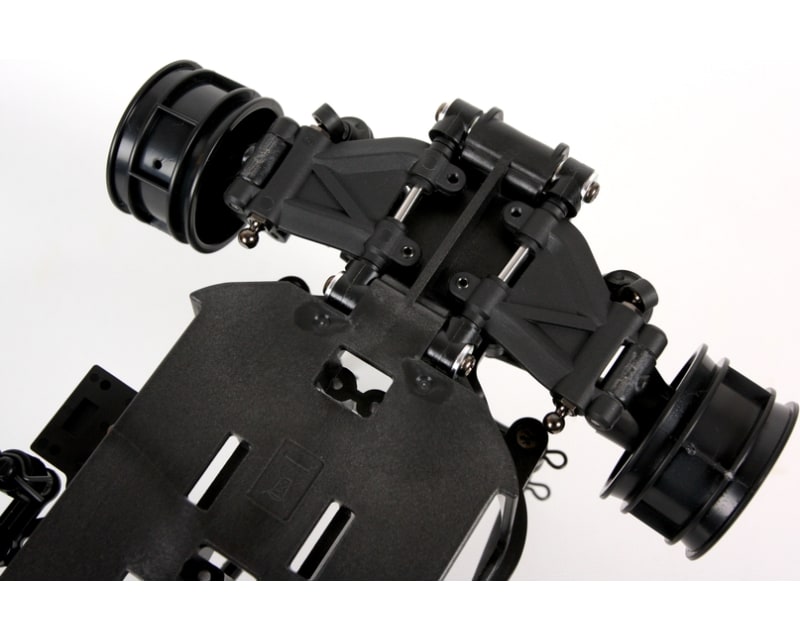

- Choose between 2 different wheelbases (M: 225mm, L: 239mm), simply by changing rear arm attachment direction

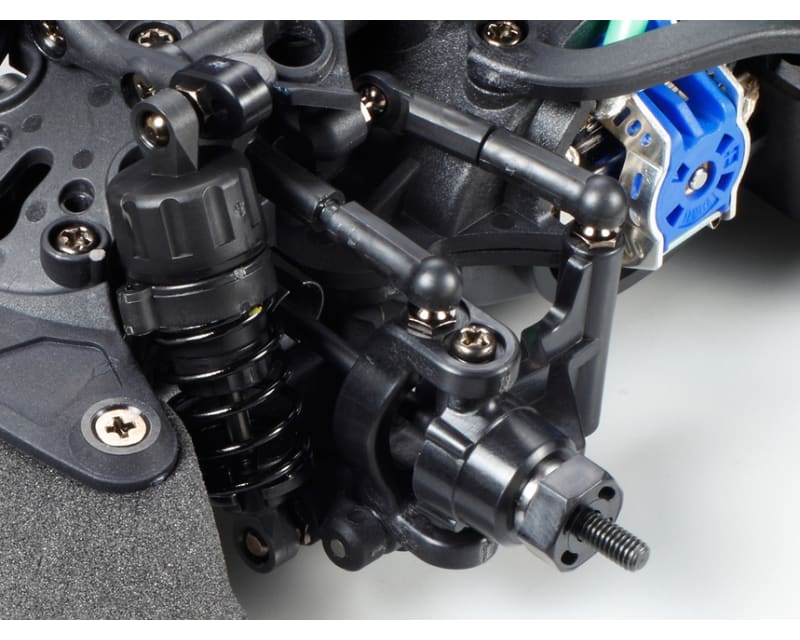

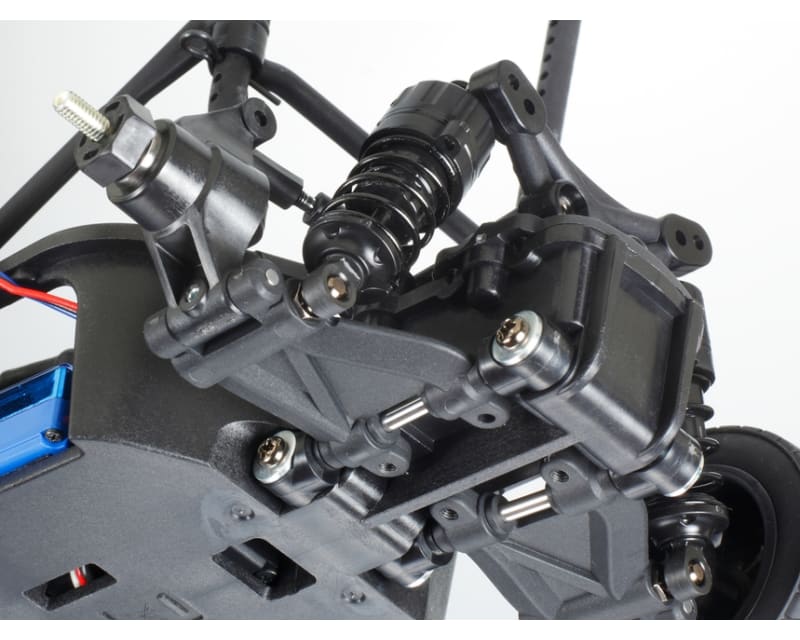

- Newly designed front and rear suspension use long arms for ideal leverage ratio, in tandem with long steering linkage components. Rear toe can be adjusted simply using spacers

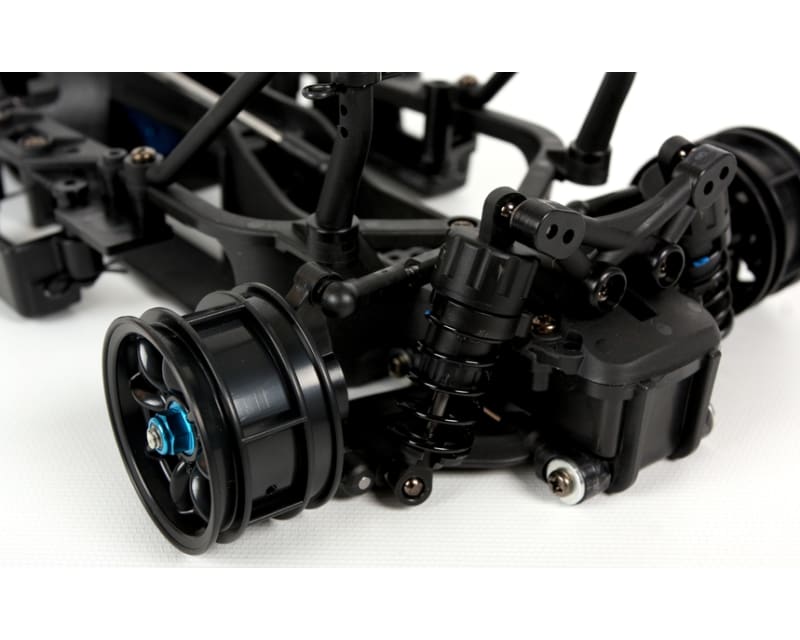

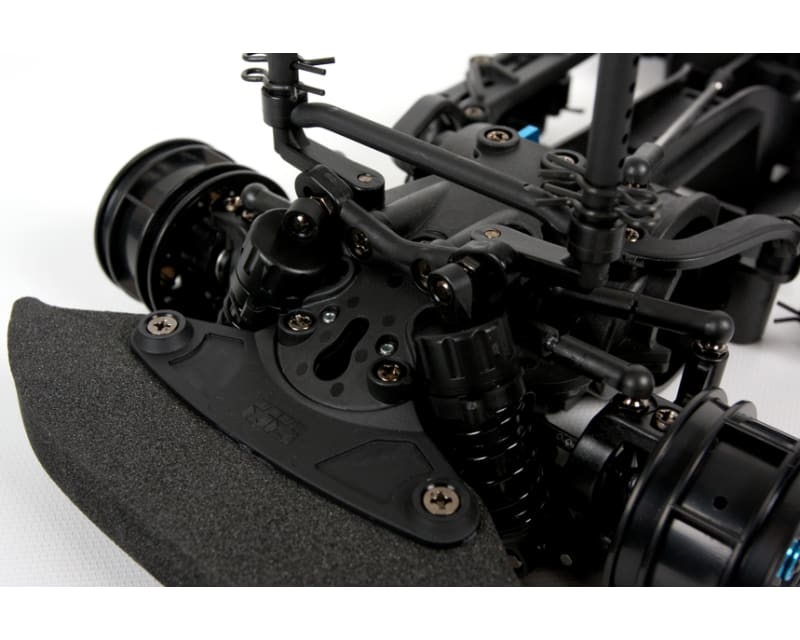

- 4-wheel double wishbone suspension is fitted with CVA oil shocks

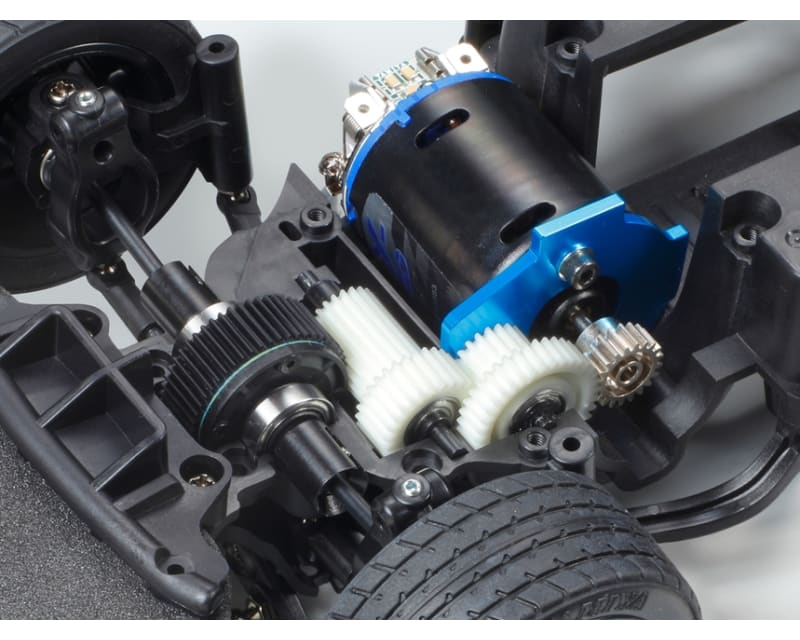

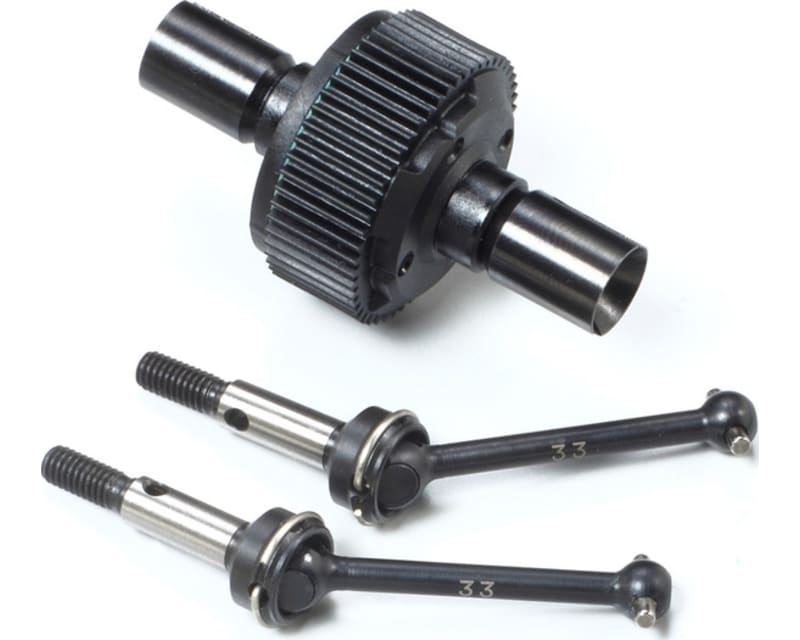

- The TA06 oil-filled gear differential is used to drive the M-07. It is paired with universal drive shafts and full ball bearings
- Compatible with standard IFMAR (Li-Po cell-type) regulation square-shaped battery packs
- Compatible with Low-Profile servos
- The chassis was designed with easy access to the stabilizers (sold separately) for quick, precise adjustments vital at the racetrack
- Body mounts have a new reinforced design for more secure body attachment
- The chassis gives its driver excellent feedback, allowing you to judge with clarity how your setup changes have impact
- One (1) car kit, as described - Assembly
- Radio system (transmitter and receiver)
- Steering servo
- 7.2-7.4 volt battery pack & compatible charger
- Electronic speed control (ESC)
- 540-size motor
- M-chassis body
- Tires
- Length: 332mm
- width: 164mm
- Adjustable Gear Ratio: Yes
- Bearings: Includes full ball bearings
- Chassis Material: FRP Fiberglass Reinforced Plastic
- Chassis Type: M-07
- Construction Type: Assembly Kit
- Differential Type: Gear-Type (Oil-Filled)
- Drive Type: 2WD
- Scale: 1/10
- Shock Damper: CVA Oil Filled
- Suspension: Fully Independent Double Wishbone
- Terrain Use: On-Road

description revised by: SN August 5, 2019
