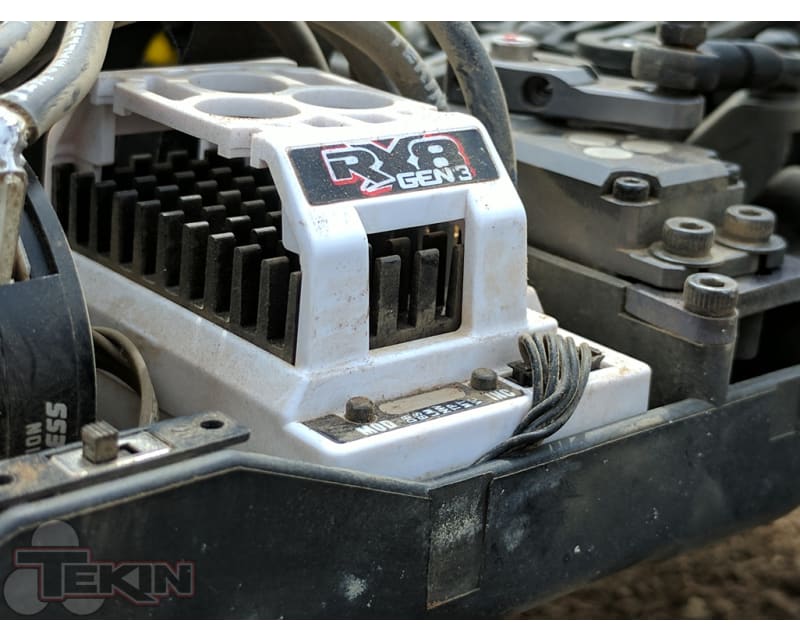

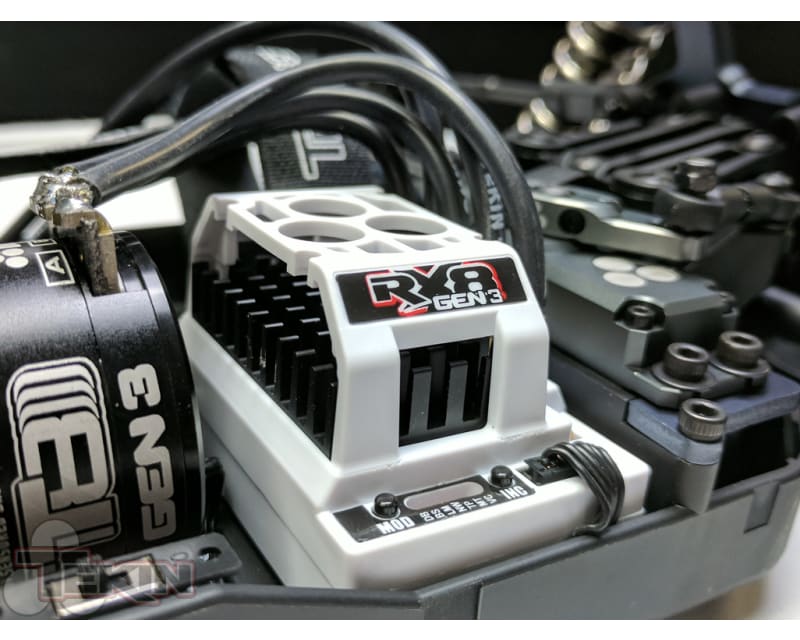

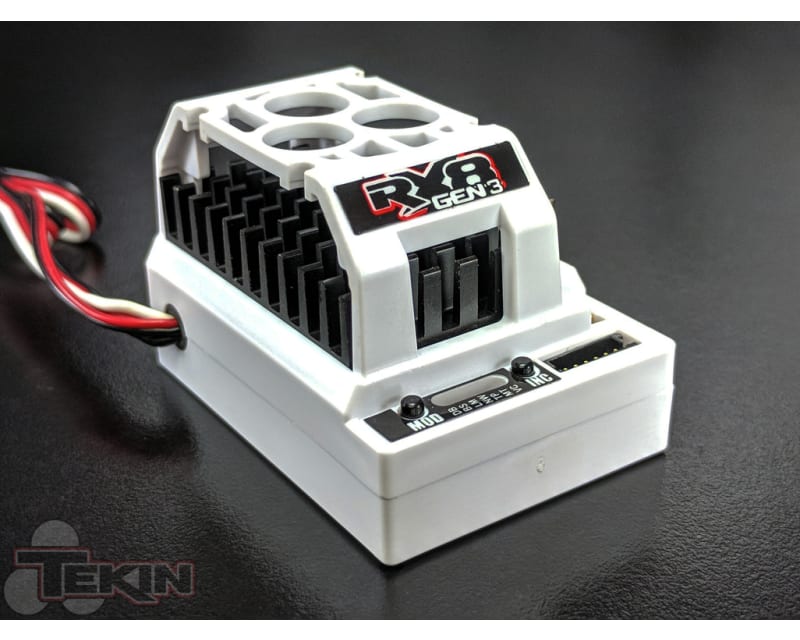

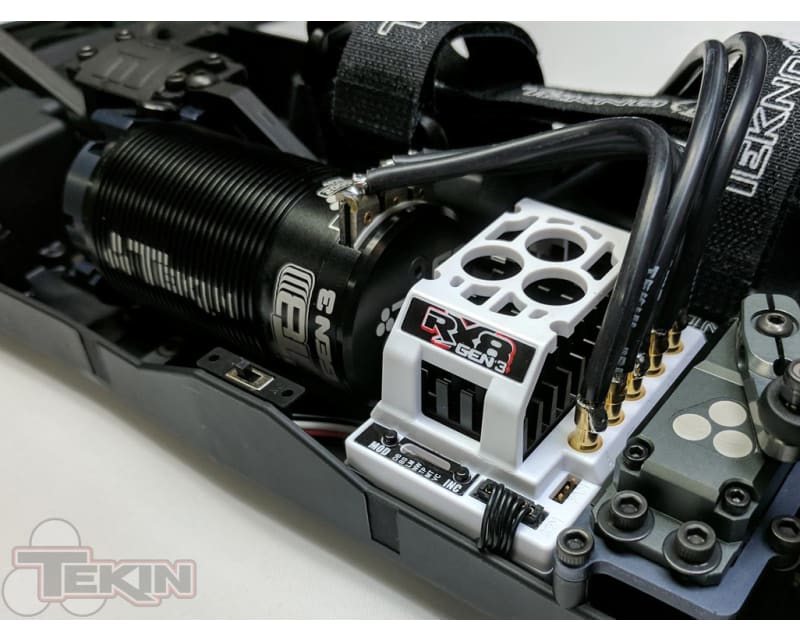

Rx8 Gen3 1/8 Scale Esc Brushed/ brushless Sensored/Sensorless

Tekin's RX8 GEN3 brings bigger power handling capabilities and increased reliability to 1/8 Scale Racing. The RX8 platform has proven itself to handle the rigors of racing, while providing professional features including a programmable High Voltage BEC, Data Logging Capabilities, Timing Profiles, Voltage Cutoffs for LiPos, HotWire 3.0 Bluetooth Connectivity and more. Utilizing Tekin's D2 Dual Drive Mode Technology, the RX8 runs both Sensored and Sensorless motor drives seamlessly, giving you the best of both worlds. The small footprint makes install on any chassis easy with the option of mounting with included hardware for extra security. Combo the RX8 GEN3 with a Tekin T8 brushless Motor for 1/8 Scale Buggies and Truggies or a Pro4HD for 4WD Short Course domination!

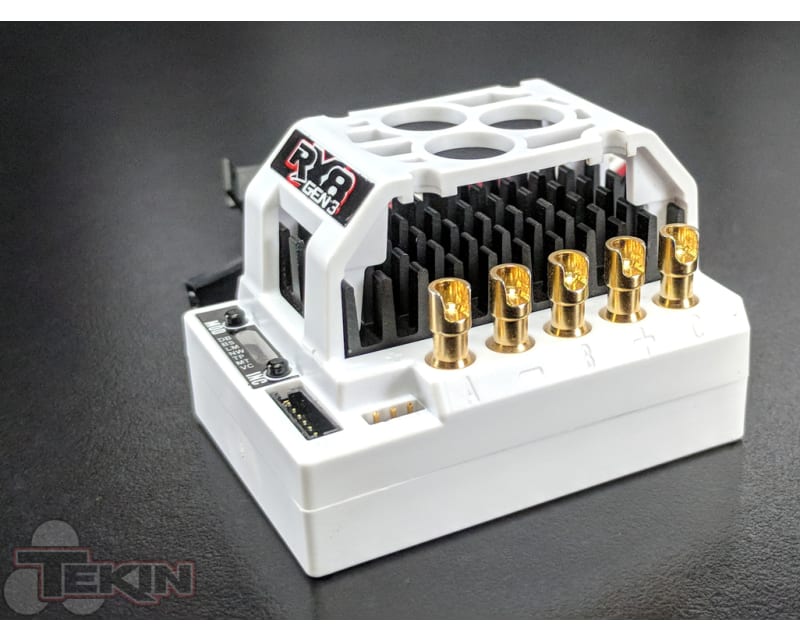

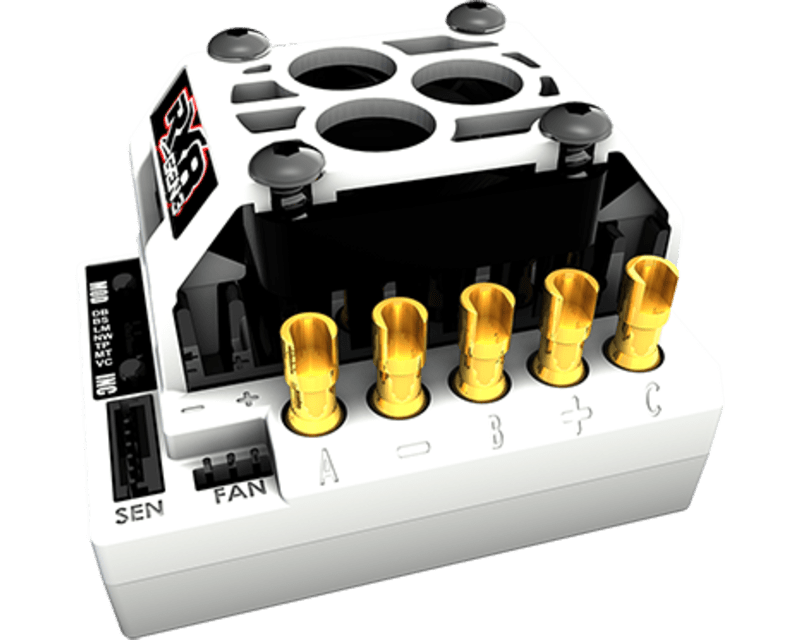

- New HD Gold-plated Solder Posts for Easy Soldering

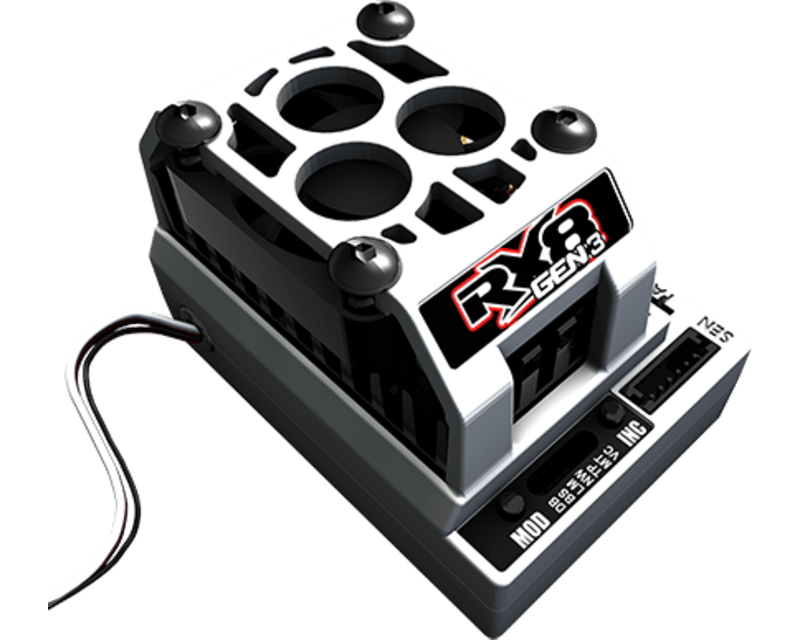

- Multi-Fin High Efficiency Heat Sink and Optional High RPM Cooling Fan
- 3rd Channel Input for On-The-Fly Drag Brake Adjustments
- QuickTune One Touch Programming
- Adjustable Torque Control (requires HotWire sold separately)
- Adjustable Throttle and Brake Frequencies (requires HotWire sold separately)
- HD High Voltage Programmable BEC (requires HotWire sold separately)
- HotWire Programming Port (requires HotWire sold separately)
- Data Logging Capability (requires HotWire sold separately)
- Sensor Checker
- On-Board Temperature Indicator
- ESC Self Diagnostics with Error Codes
- Fully Proportional Forward/Brake/Reverse
- brushless and Brushed Motor Drive
- Sensored or Sensorless Operation
- LiPo Safe with Custom Voltage Cutoffs
- Sensor Plug for Precise Commutation
- HDAC: High Density Copper PCB's
- Ultra-smooth and Precise Throttle and Braking Control

YOU WILL RECEIVE:

- One (1) Rx8 Gen3 1/8 Scale ESC Brushed/ brushless Sensored/Sensorless

REQUIREMENTS:

- Installation

SPECIFICATIONS:

- Controls: Forward/Brake/Reverse
- Input Voltage: 2S-6S LiPo / 4-16S NiMh -NiCD
- Motor Limit brushless Mode: 2S - No Limit; 3S - 4000kV; 4S - 3500kV; 5S - 2000kV; 6S - 1700kV
- Motor Limit Brushed Mode: No Limit
- Max Current: 300amps per phase
- Burst Current: 1000amps per phase
- BEC: 6.0v / 7.4v @ 8amps
- Size: 1.5 x 2.2 x 1.4in (38x55.8x35.5mm)
- Weight: 2.7oz (76.5g)

COMMENTS:

- ON BOARD QuickTune PROGRAMMABLE:
- DB - Drag Brake (13 steps)
- BS - Brake Strength (13 steps)
- LM - Torque Limiter (7 steps)
- NW - Neutral Width (13 steps)
- TP - Timing Profiles 5 Preset - 2 Custom (requires HotWire sold separately)
- MT - Motor Type
- brushless Modes - FWD Only / FWD-REV / FWD-REV Delay / FWD-REV Delay REV Motor Direction
- Brushed Modes - FWD Only / FWD-REV / FWD-REV Delay
- VC - Voltage Cutoff : 2S, 3S, 4S, 5S, 6S, Custom (requires HotWire sold separately)
- HotWire PROGRAMMABLE (requires HotWire sold separately):
- Update ESC Firmware
- Create, Save, Load and Share Custom ESC Profiles
- Drag Brake (0-100 steps)
- Active Drag (ON/OFF)
- Brake Strength (0-100 steps)
- Brake Minimum (0-30 steps)
- Active Braking (0-6 steps)
- RPM Brake (0-10 steps)
- Brake Frequency (750hz - 12kHz)
- Throttle Minimum (0-30 steps)
- Throttle Frequency (2kHz - 12kHz)
- Torque Limiter (0-10 steps)
- Reverse Speed (0-100 steps)
- Reverse Delay (0-2seconds)
- Neutral Width (0-100 steps)
- Push Control (0-100 steps)
- Timing Profiles 5 Preset - 2 Custom
- Throttle Profiles 5 Preset - 2 Custom
- Dual Drive Mode
- Motor Type
- brushless Modes - FWD Only / FWD-REV / FWD-REV Delay / FWD-REV Delay REV Motor Direction
- Brushed Modes - FWD Only / FWD-REV / FWD-REV Delay
- Voltage Cutoff - 2S, 3S, 4S, 5S, 6S, Custom Per Cell
- Fan ON/AUTO Modes
description revised by: SN October 28, 2019
