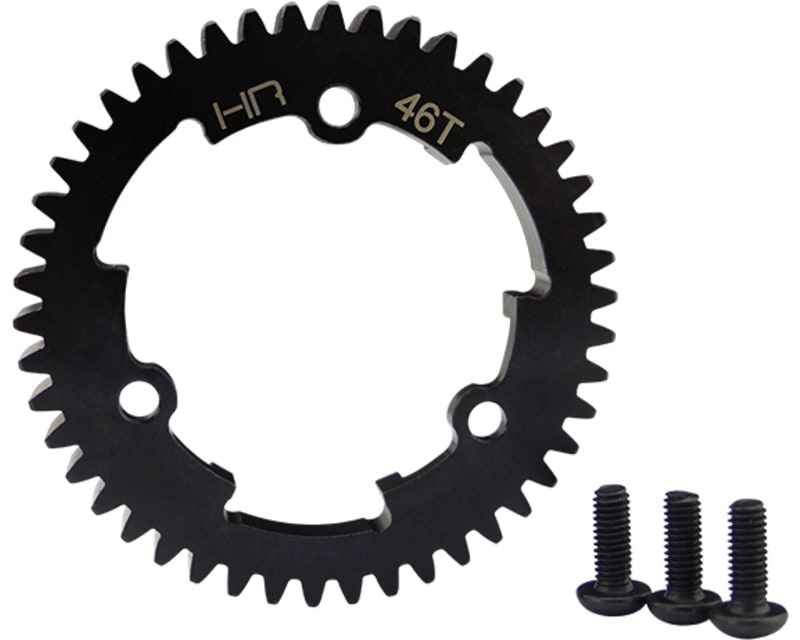

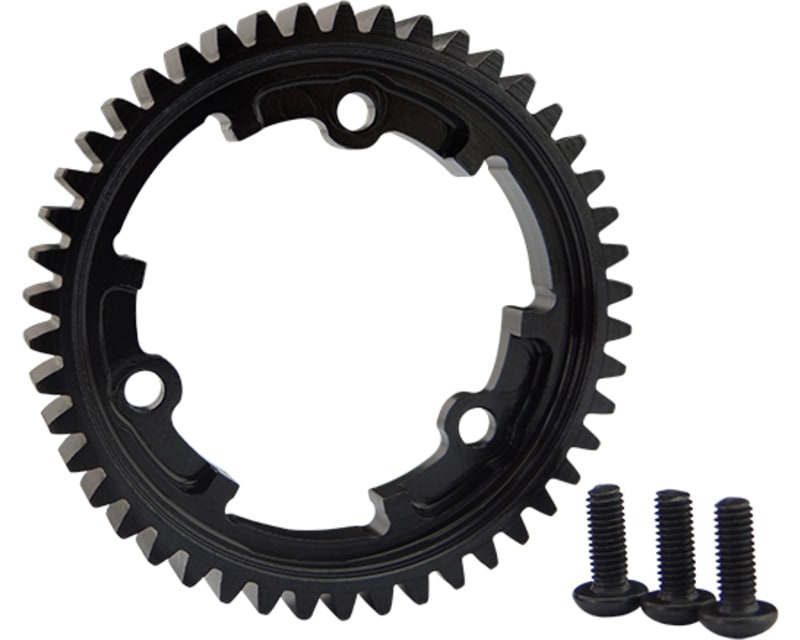

46t Mod 1 Steel Spur Gear Traxxas X-Maxx XO-1
Made by Hot Racing · SXMX46M01
$28.88
This part is discontinued and we no longer carry it.
Description
Hot Racing 46 tooth hardened steel Mod 1 (1.0 metric pitch) spur gear for the TRA X-Maxx 6S and 8S, and XO-1.
- Black oxide finished
- Laser etched tooth count marking
- With the pins removed, use the four 4x16mm button-head cap screws on the bottom to set gear mesh. Loosen the four 4x16mm button-head cap screws. Cut a narrow strip of notebook paper and run it into the gear mesh. Slide the motor and pinion gear into the spur gear. Tighten the four 4x16mm button head cap screws, and then remove the strip of paper. You should be able to run a fresh strip of paper through the gears without binding them.
- Gear face width: 8mm
description revised by: SN May 21, 2018
FEATURES:
- CNC machined hardened steel construction- Black oxide finished
- Laser etched tooth count marking
YOU WILL RECEIVE:
- One (1) 46T, 1 mod steel spur gearREQUIREMENTS:
- Do NOT use the pin system for setting the X-Maxx gear mesh. Instead, manually set the gear mesh without the pins. Refer to the TRA manual for instructions (ref. pg.22 - Adjusting Gear Mesh): - With the pins removed, use the four 4x16mm button-head cap screws on the bottom to set gear mesh. Loosen the four 4x16mm button-head cap screws. Cut a narrow strip of notebook paper and run it into the gear mesh. Slide the motor and pinion gear into the spur gear. Tighten the four 4x16mm button head cap screws, and then remove the strip of paper. You should be able to run a fresh strip of paper through the gears without binding them.
SPECIFICATIONS:
- Overall diameter: 48mm- Gear face width: 8mm
COMMENTS:
- Replaces TRA plastic 6447 or 6447X 46T spur geardescription revised by: SN May 21, 2018
Related Parts
Manufacturer Information
All warranties and guarantees, including missing items, are handled directly by the manufacturer of that item. Should there be any problem with a product, you (The Customer) will need to contact the manufacturer to obtain service. Manufacturer contact information is available upon request. We must be contacted for a return authorization number before returning items for any reason. We cannot accept returned items that have been opened or are not in their original sealed factory containers.
Additional Details
| Country of origin | China |
| Package dimensions | 4.50" × 3.00" × 1.00" 11.43 cm × 7.62 cm × 2.54 cm |
| Part numbers | SXMX46M01 083745995787 HRASXMX46M01 |
| Shipping weight | 1.50 ounces 42.52 grams 0.09 pounds |
