RVO288V06
Revo 4WD Ssd Cv Drive Steel$63.88
One left

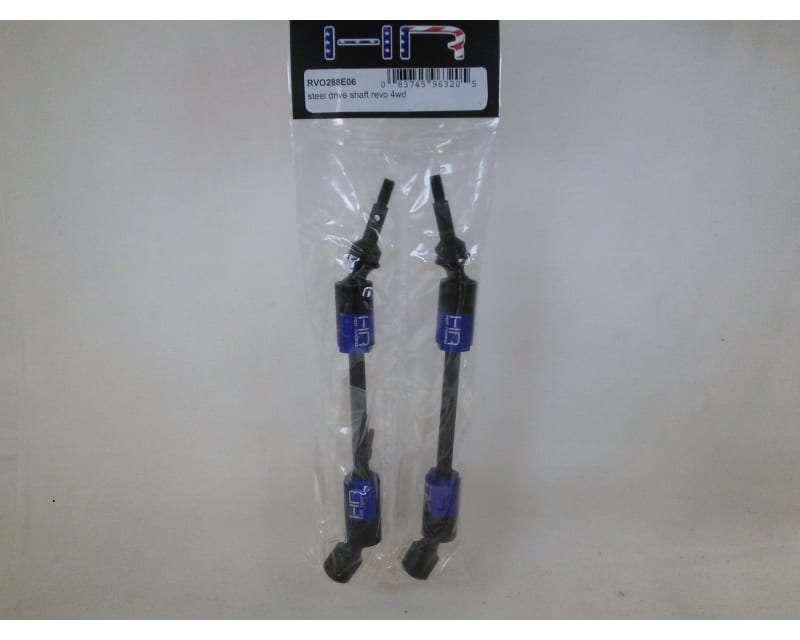

Steel Axles Drive Shafts Traxxas E-Maxx E-Revo Revo Summit
Made by Hot Racing · RVO288E06
$48.88
This part is discontinued and we no longer carry it.
Description
Hot Racing dual slider CV joint axle driveshafts for the front or rear of the TRA 1/10th scale E-Revo, E-Maxx, Revo 3.3, T-Maxx 3.3, and Summit. These shafts are compatible with vehicles that use the TRA 5451X axle shafts. Please confirm that the vehicle uses these shafts before ordering.
- Replaces factory plastic front or rear drive axles
- Blue anodized aluminum pin capture rings with rubber o-rings to prevent movement
- Design eliminates CV pin setscrew
- Steel is finished black
- Two (2) M4x2.5x13mm screw pins
- Recommended to maintain CV joint and telescoping surfaces with light grease/oil
- Recommended to use a removable-type locking adhesive on screws threading into/onto metal
- Overall collapsed length: 166mm (6.5in)
- Overall extended length: 188mm (7.4in)
- Wheel pin to outdrive pin collapsed length: 147mm (5.8in)
- Wheel pin to outdrive pin extended length: 169mm (6.7in)
- Replaces factory plastic TRA 5451X axle driveshaft assembly
- Replacement parts include: RRVO288E06 (CV rebuild kit), RCV15AA (outer stub axle)
description revised by: SN October 15, 2018
FEATURES:
- Heavy duty CNC machined #45 hardened carbon steel construction with black finish for corrosion resistance- Replaces factory plastic front or rear drive axles
- Blue anodized aluminum pin capture rings with rubber o-rings to prevent movement
- Design eliminates CV pin setscrew
- Steel is finished black
YOU WILL RECEIVE:
- Two (2) axle assemblies- Two (2) M4x2.5x13mm screw pins
REQUIREMENTS:
- Installation at rear drive assembly- Recommended to maintain CV joint and telescoping surfaces with light grease/oil
- Recommended to use a removable-type locking adhesive on screws threading into/onto metal
SPECIFICATIONS:
- Travel: 22mm- Overall collapsed length: 166mm (6.5in)
- Overall extended length: 188mm (7.4in)
- Wheel pin to outdrive pin collapsed length: 147mm (5.8in)
- Wheel pin to outdrive pin extended length: 169mm (6.7in)
COMMENTS:
- For over 16.8 volt power best use RVO288RC or RVO288V06- Replaces factory plastic TRA 5451X axle driveshaft assembly
- Replacement parts include: RRVO288E06 (CV rebuild kit), RCV15AA (outer stub axle)
description revised by: SN October 15, 2018
Related Parts
Manufacturer Information
All warranties and guarantees, including missing items, are handled directly by the manufacturer of that item. Should there be any problem with a product, you (The Customer) will need to contact the manufacturer to obtain service. Manufacturer contact information is available upon request. We must be contacted for a return authorization number before returning items for any reason. We cannot accept returned items that have been opened or are not in their original sealed factory containers.
Compatible Vehicles (5)
Additional Details
| Country of origin | China |
| Package dimensions | 3.99" × 3.99" × 0.95" 10.13 cm × 10.13 cm × 2.41 cm |
| Part numbers | 083745963205 RVO288E06 ERV288E06 SUM288E06 HRARVO288E06 |
| Shipping weight | 6.66 ounces 188.69 grams 0.42 pounds |
