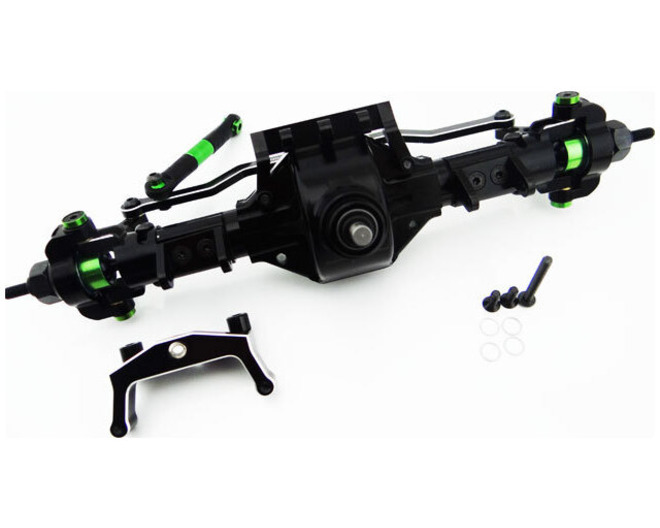

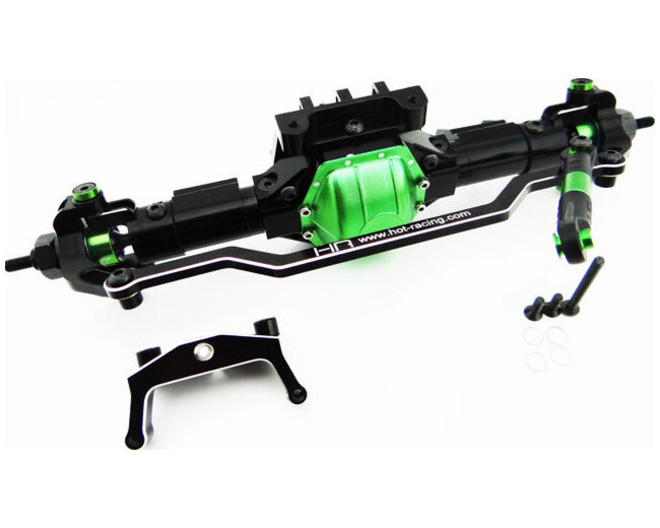

Front Axle Assembly Aluminum (Green) - Axial SCX10
Made by Hot Racing · SCX12XF05
Original price: $168.88 · Sale: $148.88
This part is discontinued and we no longer carry it.
Description
Hot Racing optional upgrade complete front axle assembly with hardened steel gears, hardened steel CV axles, locked center differential, and axle truss (for both 4-link AND center pivot) for the 1/10th scale Axial SCX10 straight front axle vehicles. Reference the axle width below to confirm fitment.
- Heavy duty CNC machined billet aluminum center housing (i. e. third member, 3rd member, center section, pumpkin)
- CNC machined billet aluminum axle tubes
- CNC machined billet aluminum C-hubs with adjustable caster
- CNC machined billet aluminum steering blocks (knuckles)
- CNC machined aluminum high clearance tie rod, black anodized with secondary-process machined chamfered edges
- Aluminum drag link with plastic tie rod ends
- CNC machined aluminum steering pivot balls, green anodized
- Brass kingpin bushings
- Full ball bearing drivetrain support

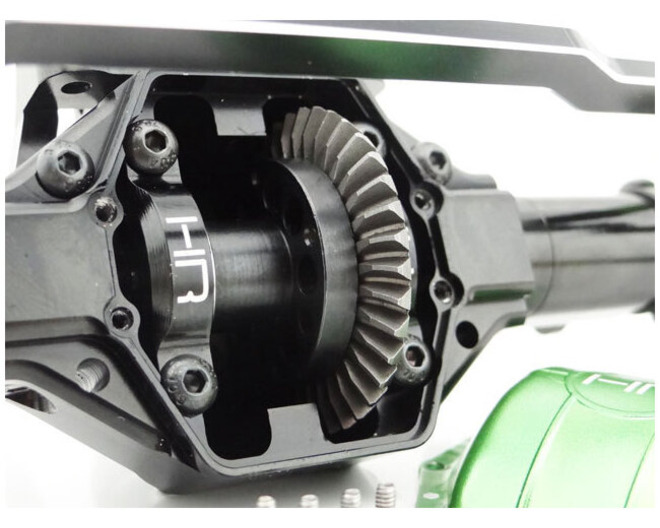

- Hardened steel, helical cut ring and pinion gears. 43T ring, 13T pinion.
- Steel locked/spool differential for maximized traction
- Integrated CNC machined lower link mounts
- Hardened steel CV axle shafts
- Fully assembled and ready to install
- 12mm steel hexes
- Two CNC milled billet aluminum truss upper link options included: 4-link suspension truss, center pivot suspension truss

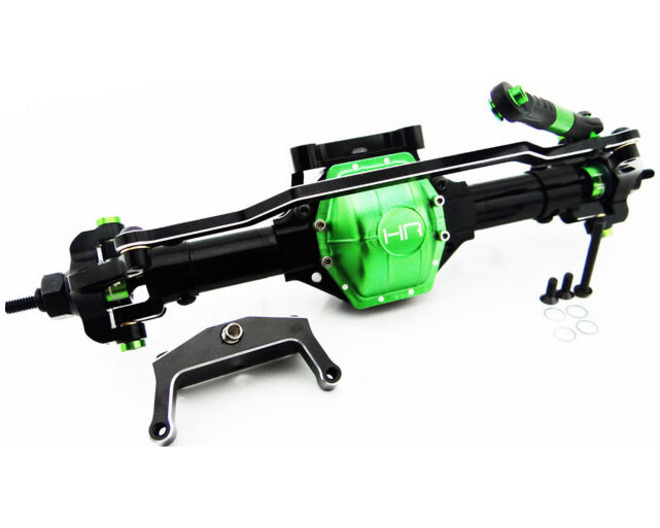

- Aluminum differential cover, finished in green, allows for easy access to differential
- Aluminum is black and green anodized for durability, corrosion resistance, and great looks
- High strength hardware
- One (1) aluminum truss for 4-link suspension
- One (1) aluminum truss for center pivot suspension
- Two (2) 12mm hexes
- Hardware kit
- Approximate width from outside of hex to outside of hex: 192.8mm (7.59 inch)
- Approximate lateral distance between lower link pivots: 83.5mm (3.29 inch)
- Vehicle width should be approximately 9 inch
- Recommended to maintain CV axles and ring and pinion with a quality general purpose gear lube/grease
- Recommended to use a removable-type locking adhesive on screws threading into metal
- Color variants available, see Hot Racing: SCX12XF03 (orange), SCX12XF05 (green)
- For composite center section variants, see Hot Racing: SCX12GF01 (black), SCX12GF02 (red), SCX12GF03 (orange)
- Replacement/Spare hex hubs are SSCX288CH
description revised by: SN May 1, 2015
FEATURES:
- CNC machined billet aluminum axle tubes
- CNC machined billet aluminum C-hubs with adjustable caster
- CNC machined billet aluminum steering blocks (knuckles)
- CNC machined aluminum high clearance tie rod, black anodized with secondary-process machined chamfered edges
- Aluminum drag link with plastic tie rod ends
- CNC machined aluminum steering pivot balls, green anodized
- Brass kingpin bushings
- Full ball bearing drivetrain support
- Hardened steel, helical cut ring and pinion gears. 43T ring, 13T pinion.
- Steel locked/spool differential for maximized traction
- Integrated CNC machined lower link mounts
- Hardened steel CV axle shafts
- Fully assembled and ready to install
- 12mm steel hexes
- Two CNC milled billet aluminum truss upper link options included: 4-link suspension truss, center pivot suspension truss
- Aluminum differential cover, finished in green, allows for easy access to differential
- Aluminum is black and green anodized for durability, corrosion resistance, and great looks
- High strength hardware
YOU WILL RECEIVE:
- One (1) fully assembled axle assembly with steering components, tie rod, and drag link- One (1) aluminum truss for 4-link suspension
- One (1) aluminum truss for center pivot suspension
- Two (2) 12mm hexes
- Hardware kit
SPECIFICATIONS:
- Approximate lateral distance between lower link pivots: 83.5mm (3.29 inch)
- Vehicle width should be approximately 9 inch
REQUIREMENTS:
- Recommended to use a removable-type locking adhesive on screws threading into metal
COMMENTS:
- For composite center section variants, see Hot Racing: SCX12GF01 (black), SCX12GF02 (red), SCX12GF03 (orange)
- Replacement/Spare hex hubs are SSCX288CH
description revised by: SN May 1, 2015
Manufacturer Information
All warranties and guarantees, including missing items, are handled directly by the manufacturer of that item. Should there be any problem with a product, you (The Customer) will need to contact the manufacturer to obtain service. Manufacturer contact information is available upon request. We must be contacted for a return authorization number before returning items for any reason. We cannot accept returned items that have been opened or are not in their original sealed factory containers.
Compatible Vehicles (1)
Additional Details
| Country of origin | China |
| Package dimensions | 12.00" × 3.00" × 2.00" 30.48 cm × 7.62 cm × 5.08 cm |
| Part numbers | HRASCX12XF05 |
| Shipping weight | 10.90 ounces 309.01 grams 0.68 pounds |
