discontinued Black Aluminum Moa Steering Axle Kit Axial Ax10 Scx
Made by Hot Racing · SCP12LC01
$88.88
This part is discontinued and we no longer carry it.
Description

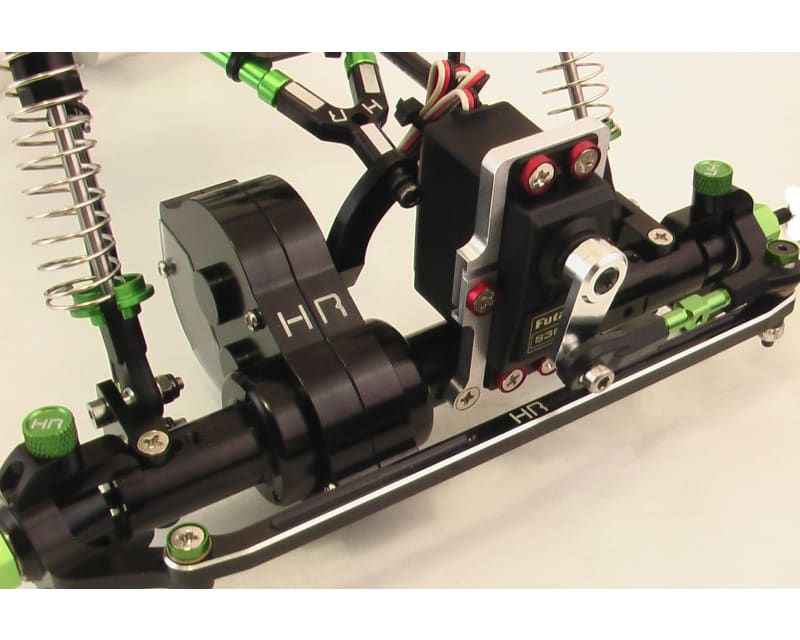

Hot Racing On Board Power Axle for the Axial AX10 Scorpion and SCX10 vehicles moved the motor to the axle to lower CG height
- Steel gears with Nitride finish for wear resistance
- 11.4:1 internal gear reduction (in addition to the pinion/ 52T spur reduction)
- Compact gear case for low CG and more ground clearance
- Clear gear box cover
- Heavy duty steel axles
- Heavy duty aluminum axle housing and tubes
- Full transmission ball bearings
- Aluminum servo, shock, and linkage mounts
- Use 48 pitch pinon gear
- Supports 9T to 30T 48 pitch pinion gears
- Installation
- width: 80mm
- height: 50mm
- Color variants include, Hot Racing SCP12LC01 (black), SCP12LC08 (silver)
- Nitriding of steel increases wear resistance, improved fatigue life, and enhances corrosion resistance
- Replacement parts include, Hot Racing: RSCP12SH (hardened steel axles), RSCP12SA (SS axles), RSCP12SG (internal gear set), RSCP12BS (bearings)
description revised by: SN November 5, 2018
FEATURES:
- CNC machined 6061-T6 aluminum construction, black and silver anodized- Steel gears with Nitride finish for wear resistance
- 11.4:1 internal gear reduction (in addition to the pinion/ 52T spur reduction)
- Compact gear case for low CG and more ground clearance
- Clear gear box cover
- Heavy duty steel axles
- Heavy duty aluminum axle housing and tubes
- Full transmission ball bearings
- Aluminum servo, shock, and linkage mounts
- Use 48 pitch pinon gear
- Supports 9T to 30T 48 pitch pinion gears
YOU WILL RECEIVE:

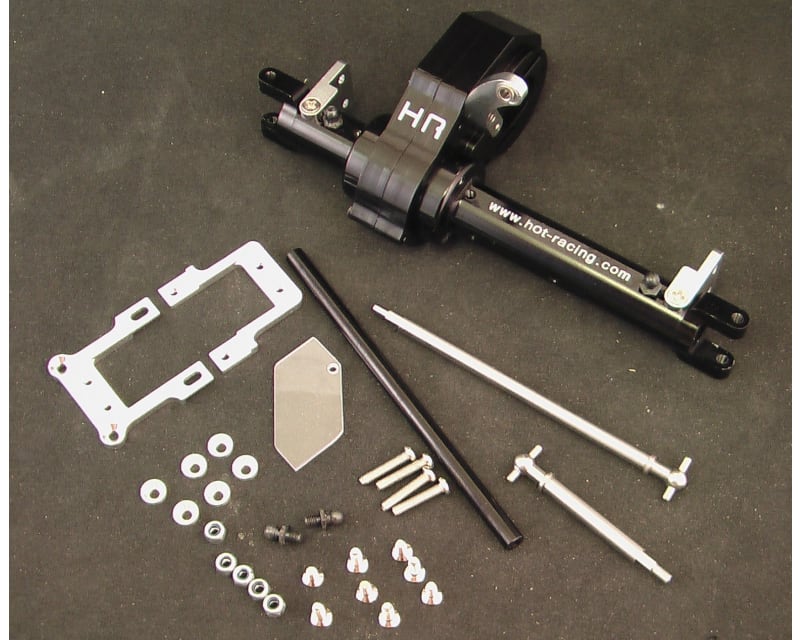

- One (1) On Board Power AxleREQUIREMENTS:
- Some parts from your stock AX10/SCX10 set up- Installation
SPECIFICATIONS:
- length: 155mm (from center of the king pin)- width: 80mm
- height: 50mm
COMMENTS:
- A 12T, 48P pinion will produce a 49.5:1 final drive ratio- Color variants include, Hot Racing SCP12LC01 (black), SCP12LC08 (silver)
- Nitriding of steel increases wear resistance, improved fatigue life, and enhances corrosion resistance
- Replacement parts include, Hot Racing: RSCP12SH (hardened steel axles), RSCP12SA (SS axles), RSCP12SG (internal gear set), RSCP12BS (bearings)
description revised by: SN November 5, 2018
Manufacturer Information
All warranties and guarantees, including missing items, are handled directly by the manufacturer of that item. Should there be any problem with a product, you (The Customer) will need to contact the manufacturer to obtain service. Manufacturer contact information is available upon request. We must be contacted for a return authorization number before returning items for any reason. We cannot accept returned items that have been opened or are not in their original sealed factory containers.
Compatible Vehicles (1)
Additional Details
| Country of origin | China |
| Package dimensions | 8.00" × 4.00" × 4.00" 20.32 cm × 10.16 cm × 10.16 cm |
| Part numbers | 083745566437 cr56643 AG56643 SCP12LC01 HRASCP12LC01 |
| Shipping weight | 8.64 ounces 244.94 grams 0.54 pounds |
