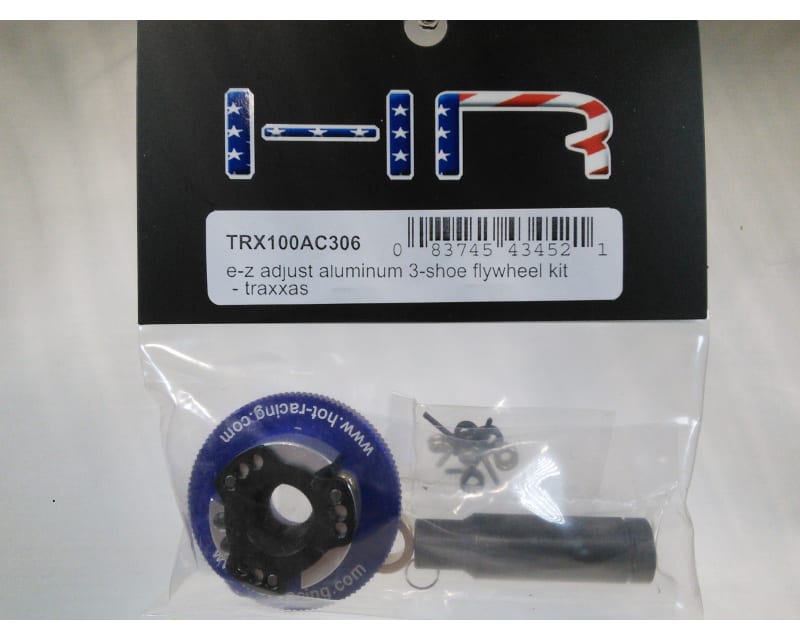

E-Z Adjust Aluminum 3-Shoe Flywheel Kit Traxxas
Made by Hot Racing · TRX100AC306
$43.88
This part is discontinued and we no longer carry it.
Description
Hot Racing 3-shoe clutch and flywheel with three tuning spring options for the TRA Revo, T-Maxx, Nitro Rustler, Nitro Sport, Nitro Stampede, and Jato (works with 2.5, 2.5R, and 3.3 engines)
- Spring steel clutch springs with three spring options: soft black (0.93mm), medium gold (0.99mm), hard silver (1.09mm)
- CNC machined 7075-T6 aluminum clutch shoes, anodized silver
- One lightened clutch shoe to slightly soften clutch engagement and reduce harsh clutch grab
- Three (3) clutch shoes
- One (1) brass flywheel collet
- Three (3) clutch spring sets (soft black, medium gold, hard silver)
- One (1) nut
- One (1) installation tool
- Collet natural inside diameter: 0.28 inch (7.0mm)
- Black spring wire size: 0.93mm
- Gold spring wire size: 0.99mm
- Silver spring wire size: 1.09mm
- 1.) Note orientation of shoes and springs
- 2.) Remove steel shoe retainer plate by gently prying it off with a flat head screwdriver
- 3.) Change springs and reinstall shoes and springs on the pivot pins
- 4.) Insert tool into steel shoe retainer plate; tool has three nubs that engage with three openings in retainer plate
- 5.) Align steel shoe retainer plate with clutch and, while providing downward pressure, rotate the tool counterclockwise until the retainer plate is fully inserted into clutch and aligned with shoe pivot pins. The tool can be turned by inserting a small screwdriver or hex wrench through the hole in the end of the tool.
description revised by: SN August 20, 2018
FEATURES:
- Light weight flywheel constructed of CNC machined 6061-T6 aluminum, anodized blue- Spring steel clutch springs with three spring options: soft black (0.93mm), medium gold (0.99mm), hard silver (1.09mm)
- CNC machined 7075-T6 aluminum clutch shoes, anodized silver
- One lightened clutch shoe to slightly soften clutch engagement and reduce harsh clutch grab

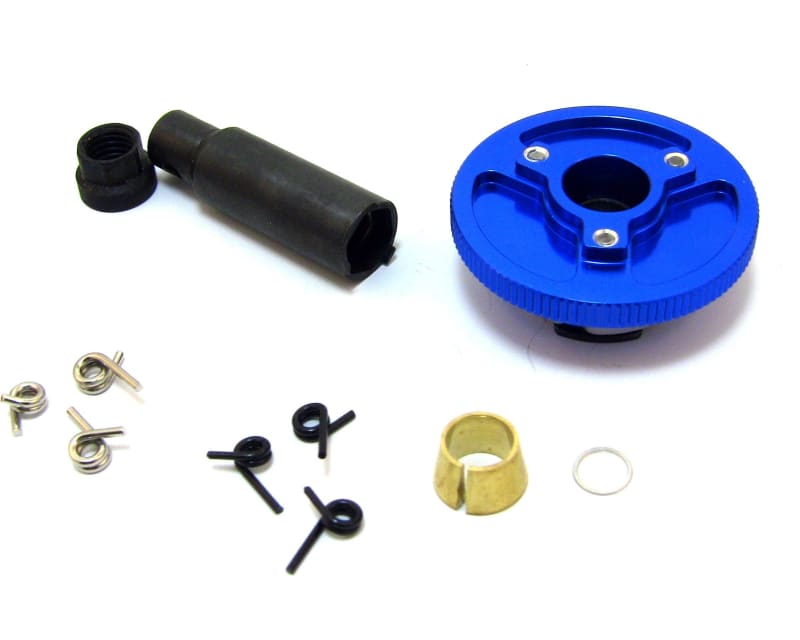

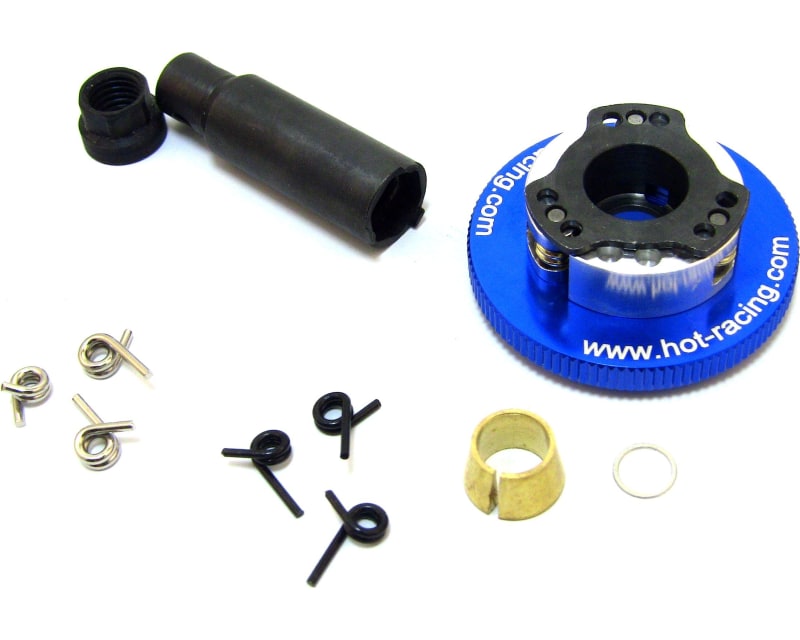

YOU WILL RECEIVE:
- One (1) flywheel- Three (3) clutch shoes
- One (1) brass flywheel collet
- Three (3) clutch spring sets (soft black, medium gold, hard silver)
- One (1) nut
- One (1) installation tool
REQUIREMENTS:
- Installation: Use the provided tool and nut. The tool can be turned by inserting a small screwdriver or hex wrench through the hole in the end of the tool. SPECIFICATIONS:
- Flywheel outside diameter: 1.38 inch (35.1mm) - Collet natural inside diameter: 0.28 inch (7.0mm)
- Black spring wire size: 0.93mm
- Gold spring wire size: 0.99mm
- Silver spring wire size: 1.09mm
COMMENTS:
- Changing springs: - 1.) Note orientation of shoes and springs
- 2.) Remove steel shoe retainer plate by gently prying it off with a flat head screwdriver
- 3.) Change springs and reinstall shoes and springs on the pivot pins
- 4.) Insert tool into steel shoe retainer plate; tool has three nubs that engage with three openings in retainer plate
- 5.) Align steel shoe retainer plate with clutch and, while providing downward pressure, rotate the tool counterclockwise until the retainer plate is fully inserted into clutch and aligned with shoe pivot pins. The tool can be turned by inserting a small screwdriver or hex wrench through the hole in the end of the tool.
description revised by: SN August 20, 2018
Related Parts
Manufacturer Information
All warranties and guarantees, including missing items, are handled directly by the manufacturer of that item. Should there be any problem with a product, you (The Customer) will need to contact the manufacturer to obtain service. Manufacturer contact information is available upon request. We must be contacted for a return authorization number before returning items for any reason. We cannot accept returned items that have been opened or are not in their original sealed factory containers.
Compatible Vehicles (6)
Additional Details
| Country of origin | China |
| Package dimensions | 2.00" × 3.00" × 0.60" 5.08 cm × 7.62 cm × 1.52 cm |
| Part numbers | 083745434521 TRX100AC306 HRATRX100AC306 |
| Shipping weight | 0.70 ounces 19.84 grams 0.04 pounds |
