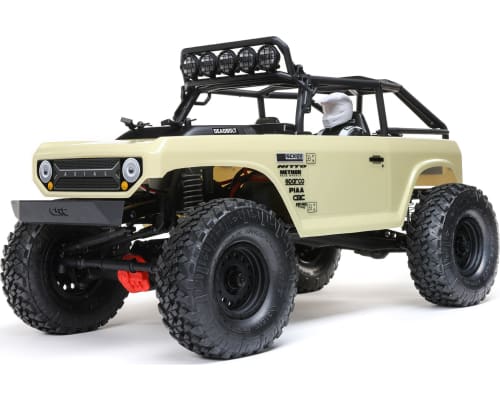

SCX10 II Deadbolt 1/10 4WD RTR Tan


Axial Racing logo

Part number


Real-time inventory

2 in stockClick to refresh


Sale -$136.00


Realistic, durable steel C-channel chassis with cross braces for reinforcement and rigidity
Single-piece AR44 front and rear axles with molded truss for extreme durability
High pinion design that adds ground clearance, improves driveshaft angles, and increases gear surface contact
LCX AX10 transmission with adjustable gearing ratio for super high speed or competition-level crawling speed
Optimized gear ratio of 3.75 that reduces torque twist
Metal gears
Larger load rated bearings for durability
8 Kingpin axle that eliminates tire scrub
Chassis mounted servo with adjustable servo mounting system
Oil-filled, coilover shocks with threaded shock bodies
Licensed CRC front bumper
3-piece WB8 HD Wildboar front and rear driveshafts with strengthened slider-floater tube to reduce flex and fatigue
Easy-access, water-resistant receiver box
The ready-to-run Axial SCX10 II Deadbolt 4WD is a budget-friendly, highly capable, and easily upgradeable RC rock crawler that's perfectly suited for both experienced adventurers and hobby newcomers. It combines rugged scale looks with the exceptional handling of the trail-ready SCX10 II chassis, in a 12" short wheelbase setup that's agile enough to take on twisty trails.
The SCX10 II remains one of the best 1/10 scale rock crawler chassis ever designed. This high-strength, C-channel chassis is made of durable steel with cross braces for reinforcement and rigidity. The contoured skid plate significantly reduces hang-ups, and the simplified design makes maintenance quick and easy.
Highly adaptable, the SCX10 II Deadbolt 4WD also features an adjustable wheelbase, adjustable body mount, adjustable bumper mounts with swaybar mounting points, and mounting points for an optional 2-speed transmission and servo winch. The included LCX AX10 transmission, with a three gear layout, heavy-duty slipper, sealed gear cover, and all-metal gears, accepts a wide range of gearing options. Its overall ratio can be adjusted using different pinion and spur gear choices for super high speed or competition-level crawling speed.
Just as a full-size truck has its steering box located on the frame, Axial places the Deadbolt's adjustable servo mount on the SCX10 II chassis frame and allows a wide range of servos to be used. The single-piece AR44 front and rear axles feature a molded truss for extreme durability. The pinion gear is 6mm above center for higher ground clearance and improved driveshaft angles. Metal dog bones and helical cut internal gears are standard equipment, and the drivetrain includes full, high-quality ball bearings.
The oil-filled shocks, with threaded bodies and a single coilover spring, can be tuned to meet the dampening demands of any trail. Realistic shock hoops with multiple mounting positions let you adjust the suspension for maximum performance. S30 compound, 4.7" x 1.9" wide Nitto Trail Grappler M/T tires on METHOD 307 Hole wheels provide ample ground clearance for off-road trails and have a large block tread pattern for excellent bite in all terrain.
With a realistic driver figure and exterior cage complete with light bar (LED lights sold separately), the Axial SCX10 II Deadbolt 4WD delivers scale excitement and class-leading performance in a convenient, ready-to-run package. Nearly all electronics, including a Spektrum SLT2 2.4GHz radio system, motor, and ESC, are supplied and installed. Just add your choice of batteries and charger and start your adventure!
Approximate Assembly Time
Less than 1 Hour
Sold Separately
Integral with ESC
Sold Separately
Color Variant
Completion Level
Connector Type
Drive Type
Final Drive Ratio
Front Track
7.5 in (190.5mm)
Gear Pitch
Gear Ratio
Ground Clearance
2.7 in (68mm)
Motor Size
Motor Type
Power Type
Product Height
9" (229 mm)
Product Length
18.1" (460 mm)
Product Weight
4.65 lb (2.1 kg)
Product Width
8.8" (224 mm)
Rear Track
7.5 in (190.5mm)
Shock Type
Oil Filled
Speed Control
Spur Gear
Steering Type
Vehicle Type
Rock Crawler
Wheel Hex Size
12" (305 mm)
