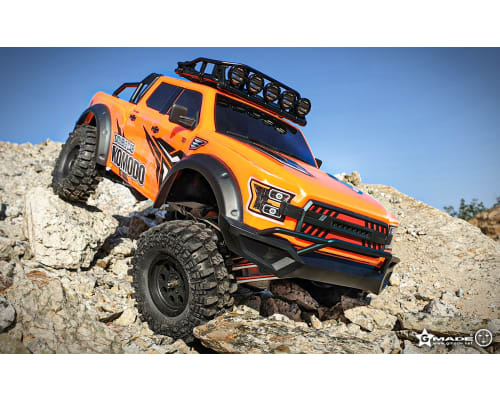

1/10 GS02F KOMODO double cab
User level: Kit, *requires additional parts/components
Mode: Crawling/Rock Buggy, *4WD
Scale: 1:10, 1.9"
Type: off-road, Crawler/Rock Buggy *dirt/clay
Power: LiPo 2S-3S, NiMh /NiCd *6-cell, *shorty capable
Radio req'd: 2 channels (minimum)
Battery: Not included, user defined connector
Speed Controller: not included
Motor: not included - 540/550 size
Includes charger: No
GS02F frame is designed to look as a chassis of a real car frame and the material of the frame is made of high strength steel, C-channel side rail and is with hex wrench bolted with cross members, which make it resistant to twisting or warping. Also, steel parts are black powder coated finish to prevent rust.
The inner fender is directly fixed to the frame to reduce the flex and bending of the chassis and parts, it also reduces external objects to entering to the chassis during driving.
GS02F chassis allows three type of easy adjustment of wheelbase convert kit to use any type of 313 and 324mm custom bodies. (optional link kits are sold separately)
GS02F's weight balance designed to be placed on the forward of the chassis.
This will increase the tire traction to the front wheel to provide better crawling on a high tilt angle rocks and better driving performance when hill climbing and this will help minimizing the vehicle's rolling over when climbing.
Able to use 540 or 550 size motor with cooling fan with option.
The motor is designed to mounted in front of the chassis, so it can increases more tire traction to the front side. GS02F can use all sizes of LiPo batteries and Ni-MH batteries.
GS02F steering system has a steering servo on the frame just like a 1:1 real car.
It is designed to make it as closed to the zero bump steer so bump steer movement does not appear by front wheel suspension movements, so we ended up with maximizing the steering performance of the vehicle.
In addition, the Panhard-bar is designed to avoid interference with nearby parts, so that the front suspension and shocks can move freely without any loss.
The drive lines of the front and rear axles are arranged in straight-line to reduce the fatigue stress of the universal shaft and reduce the loss of driving power by providing efficient driving lines.
The GS02F uses 1.9" tires. MT 1904 off-road tire made of super soft compound material provides high traction to the surface. The treads of tire pattern are suitable for off-road driving and are designed with large diameter that enables to run smoothly on any uneven road surface.
The GS02F transmission is designed to look as a real 1:1 scale vehicle, and provides the best performance according to the driving situation. Overdrive means, front and rear wheels rotate at the different speeds.
The GS02F transmission is designed to rotate the front wheel faster than the rear wheel. The 1st gear is for hardcore rock crawling and the 2nd gear is for hill climb or high-speed driving.
Vehicles with overdrive on the front axle has an improved steering radius compared to non-overdrive vehicles, making it easier to control when driving on the rough surfaces. Increasing of the tire traction allows the vehicle to pass through steep slopes and obstacles without lifting the front of the body upward.
GS02F transmission is designed to drive in a stable position without pulling the balance of power transmitted to the axle. The front and rear universal shafts based on the transmitter each rotates clockwise and counterclockwise, this compensates for the forces acting on the opposite rotational forces due to the action(torque) and reaction(reverse torque) because of that this vehicle can run in a super stable conditions.
